ZTX 350 (ZT 2352) (2691410-01) - Snapper 52"/132cm Zero-Turn Mower, 23hp Parking Brake Group Parts Diagram

52"/132cm Zero-Turn Mower, 23hp

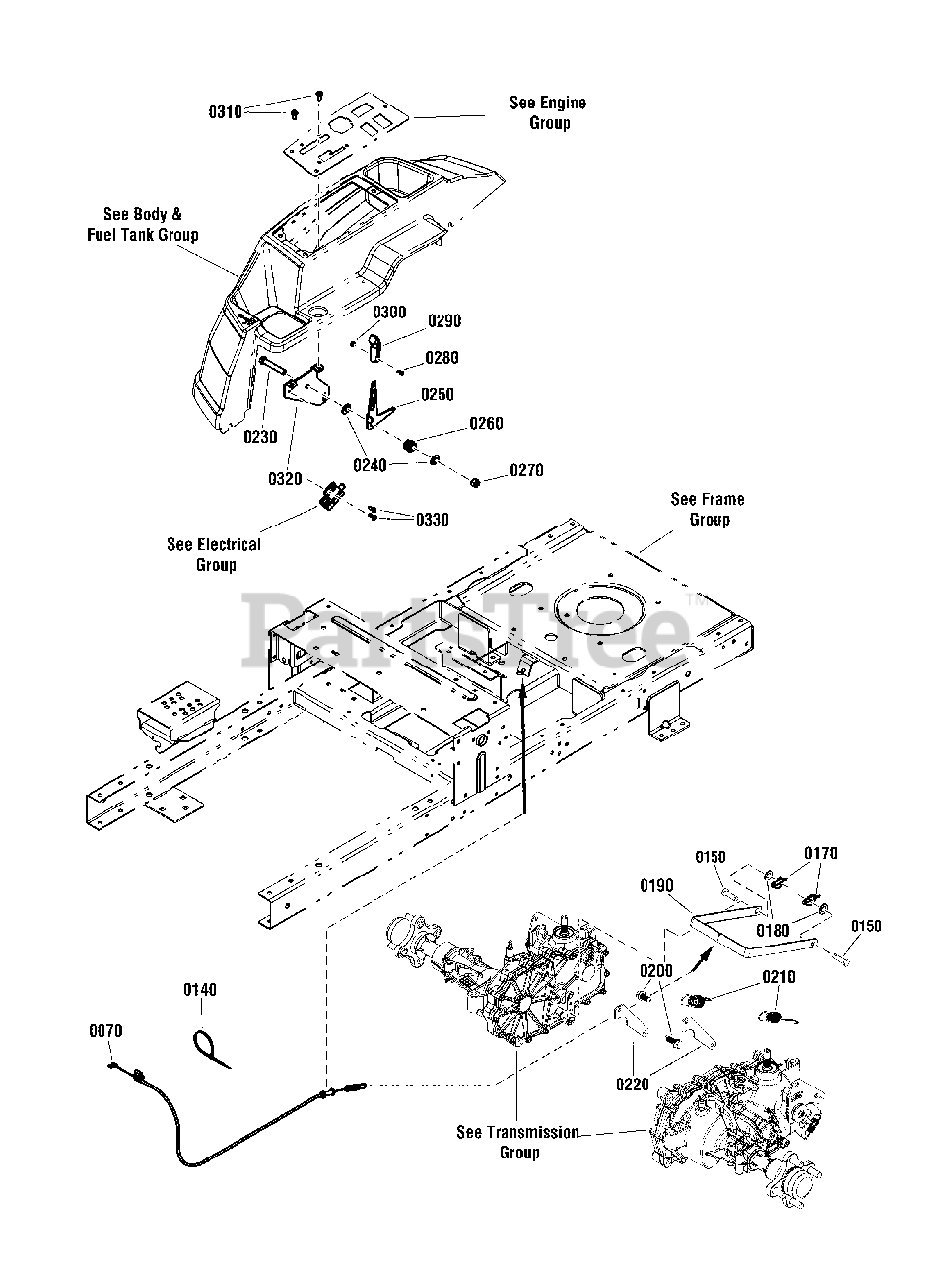

Parking Brake Group Parts Diagram

  • Title

0070

Snapper 1759207YP

CABLE, Parking Brake

$21.99

$

In Stock, only 1 left!

0

0140

Snapper 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 7014779YP

CLEVIS PIN, 5/16 X 3/4, ZP

$6.49

$

Usually ships in 2-12 days

0

0220

Snapper 1759362YP

BRACKET, Brake Spring

$6.49

$

Usually ships in 2-12 days

0

0220

Snapper 1759362YP

BRACKET, Spring

$6.49

$

Usually ships in 2-12 days

0

0190

Snapper 1758127AYP

ARM, Brake

$29.99

$

Usually ships in 2-12 days

0

0200

Snapper 708964

SCREW, M6-12X1.0 Taptite Hex Head Cap

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper 1758283YP

SPRING, Extension

$6.99

$

In Stock, only 3 left!

0

0220

Snapper 1759362YP

BRACKET, Spring

$6.49

$

Usually ships in 2-12 days

0

0230

Snapper 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 8

0

0240

Snapper 5025401YP

WASHER, 3/8 USS

$3.99

$

In Stock, only 1 left!

0

0250

Snapper 7301074YP

LEVER, Park Brake, YZ

$10.99

$

Usually ships in 2-12 days

0

0260

Snapper 7028036YP

SPRING, Friction Pack

$6.99

$

Usually ships in 2-12 days

0

0270

Snapper 5025096SM

NUT, 3/8-16 Hex Nylon Lock

$3.49

$

In Stock, Qty 10

0

0280

Snapper 7091017YP

SCREW, #8-32 x 3/8 Cross Recess Filister Head, GR 2, BZ

$3.99

$

In Stock, Qty 5

0

0290

Snapper 7023655YP

LEVER, Throttle Control

$3.99

$

Usually ships in 2-12 days

0

0300

Snapper 703460

NUT, #8-32, Hex, Zinc/Clear

$3.99

$

In Stock, Qty 11

0

0310

Snapper 703953

SCREW, Torx Pan Head Self-Tapping, 1/4-20 X 5/8,

$4.49

$

In Stock, only 2 left!

0

0320

Snapper 1759968AYP

BRACKET, Park Brake Lever

$18.99

$

Usually ships in 2-12 days

0

0330

Snapper 704060

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 12

0

0010

Snapper 1736539YP

BOLT, Shoulder, 3/8-16 X 3.41

$8.99

$

In Stock, Qty 20+

0

0030

Snapper 1758091YP

BELLCRANK, Parking Brake

$10.99

$

Usually ships in 2-12 days

0

0050

Snapper 1758088YP

ROD, Parking Brake

$8.99

$

Usually ships in 2-12 days

0

0055

Snapper 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0
