ZTX 550 (5901404-00) - Snapper 52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton Wheel & Tire Group Parts Diagram

52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton

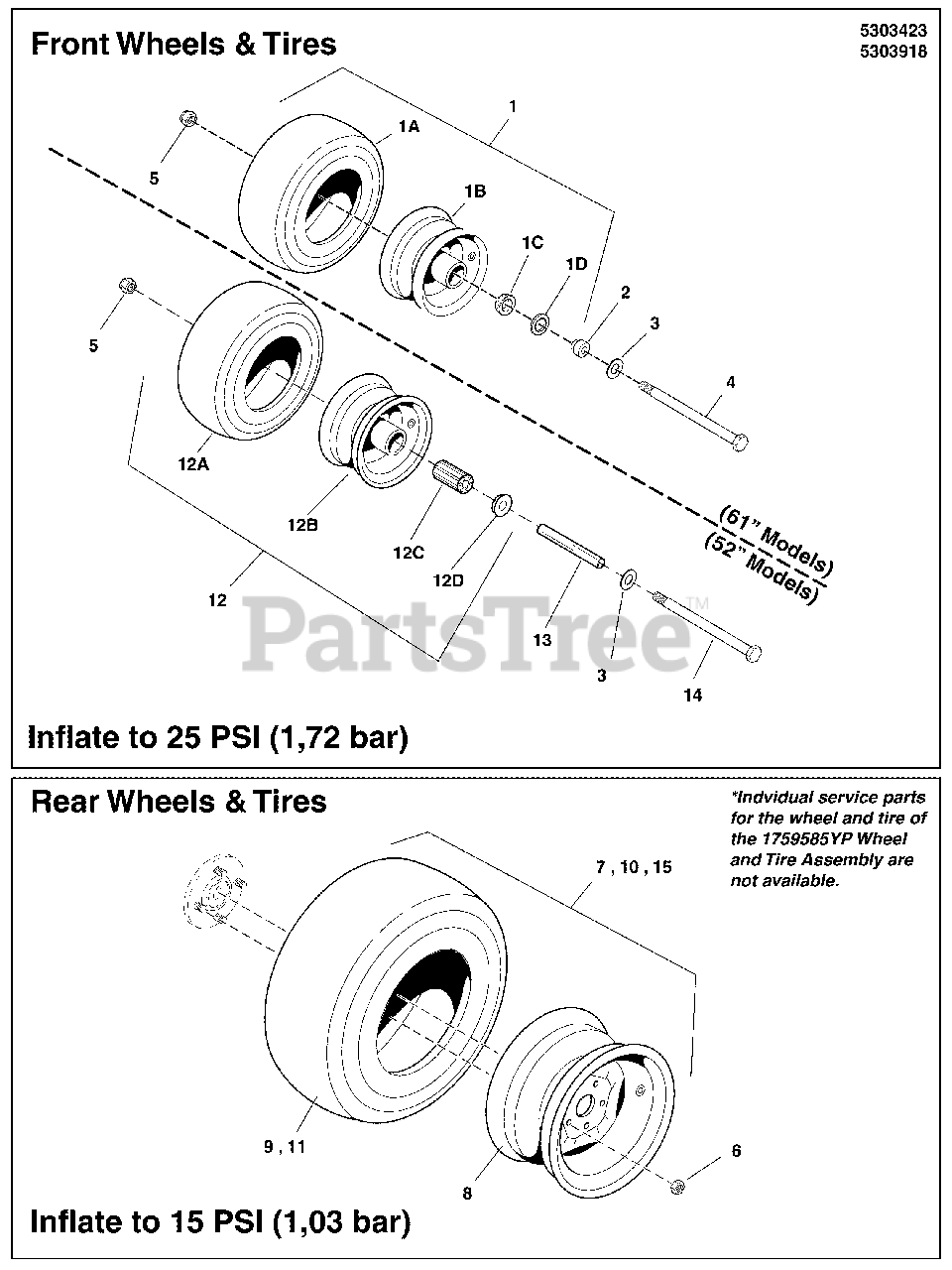

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 5022631SSM

TIRE, CASTER, 13 X 5.00-6

Note: (61" Models)

$168.99

$

In Stock, only 1 left!

0

1A

Snapper 5022029X1SM

TIRE ONLY (SV)

Note: (61" Models)

$

$

Not available

1B

Snapper 5022631SX1SM

WHEEL ASSY, 13 X 5 X 6, SILVER (SV)

Note: (61" Models)

$102.99

$

In Stock, only 1 left!

0

1C

Snapper 5022631SX2SM

BEARING, TAPERED CONE

Note: (Qty: 2 per tire)(61" Models)

$12.99

$

In Stock, only 1 left!

0

1D

Snapper 5022631SX3SM

SEAL, GREASE

Note: (Qty: 2 per tire)(61" Models)

$9.99

$

In Stock, only 1 left!

0

2

Snapper 5047103SM

ADAPTER, CASTER AXLE, CZ

Note: (Qty: 2 per tire)

$10.99

$

In Stock, only 1 left!

0

3

Snapper 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 13

0

4

Snapper 5025017X64SM

BOLT, 1/2-13 X 8 GD5 YZ

$10.99

$

In Stock, only 1 left!

0

5

Snapper 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

6

Snapper 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

$3.49

$

In Stock, Qty 9

0

7

Snapper 5103968YP

TIRE/WHEEL ASM, 20X 10-8, TURF MASTER

Note: (S/N: 2016910754 & Below)

$

$

Not available

8

Snapper 5103968X1YP

WHEEL, 8 X 6.331.29" NEG OFFSET, 4/4 BOLT PATTERN (SV)

Note: (S/N: 2016910754 - 2017300770)

$114.99

$

In Stock, only 1 left!

0

9

Snapper 5103968X2YP

TIRE, 20 X 10 - 8, TURF MASTER (SV)

Note: (S/N: 2016910754 & Below)

$219.99

$

Usually ships in 2-12 days

0

10

Snapper 5104433YP

TIRE ASSM, 20X10.00-8, TURF TRAC

Note: (S/N: 2016910755 - 2017300770)

$274.99

$

In Stock, only 2 left!

0

11

Snapper 5104433X1YP

TIRE, 20X10-8, TURF TRAC, 4 PLY

Note: (S/N: 2016910755 - 2017300770)

$230.99

$

Usually ships in 2-12 days

0

12

Snapper 5101418YP

WHEEL ASSEMBLY, Caster, 11 X 4.0 - 5

Note: (52" Models)

$127.99

$

Usually ships in 2-12 days

0

12A

Snapper 5022433X1SM

TIRE, Caster, 11 X 4.0 - 5 (SV)

Note: (52" Models)

$75.99

$

Usually ships in 2-12 days

0

12B

Snapper 5101418X2YP

RIM, Caster , 11 X 4.0 - 5

Note: (52" Models)

$84.99

$

In Stock, only 1 left!

0

12C

Snapper 5101418X1YP

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK

Note: (52" Models)

$28.99

$

In Stock, only 2 left!

0

12D

Snapper 5021043SM

RETAINER, Bearing

Note: (Qty: 2 per tire)(52" Models)

$7.49

$

In Stock, only 3 left!

0

13

Snapper 5045996SM

AXLE, Caster

Note: (52" Models)

$15.99

$

In Stock, only 2 left!

0

14

Snapper 5025017X56YP

BOLT, 1/2-13 X 7 GD5 CZ

Note: (52" Models)

$14.99

$

In Stock, only 1 left!

0

15

Snapper 1759585YP

WHEEL AND TIRE ASSY, 20X10-8 (K505)

Note: (S/N: 2017300771 & Above)

$426.99

$

Usually ships in 2-12 days

0
