ZTX6-54 KW FAB (47TIAHA7A10) - Cub Cadet Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki (2023) Seat Parts Diagram

Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki

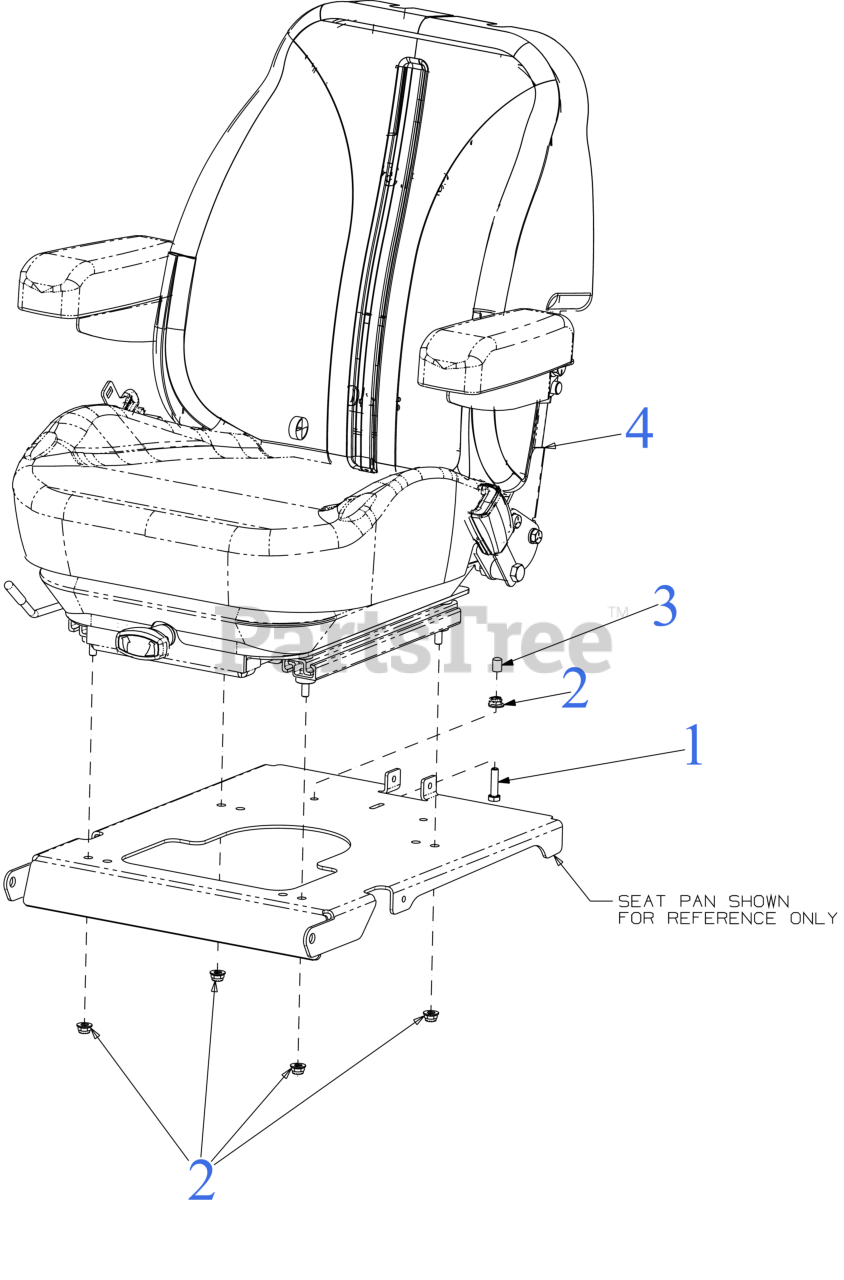

Seat Parts Diagram

  • Title

1

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

Note: TORQUE TO 18-22 FT-LBS

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 720-05010

VINYL CAP

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet 757-05748

SEAT (CUB/SLIDE/SUSP/BELT/ARM)

$1370.99

$

Usually ships in 3-6 days

0

Cub Cadet 725P14006

SEAT SWITCH (NC/NO)

Note: (Not Shown)

$26.99

$

In Stock, only 4 left!

0

Cub Cadet SI-114795PS

SEAT TRACK SET

Note: (Not Shown)

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-181853PS

KNOB: ROLL PIN & DECAL

Note: (Not Shown)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-186960VN493

ARMREST SET

Note: (Not Shown)

$185.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-186961VN493

ARMREST PAD SET

Note: (Not Shown)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-315291PS

2" RETRACTABLE BELT KIT

Note: (Not Shown)

$108.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-315292VN704

SEAT BACK COVER

Note: (Not Shown)

$217.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-315293VN704

SEAT CUSHION COVER

Note: (Not Shown)

$161.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-783002PS

SEAT BELLOWS

Note: (Not Shown)

$39.99

$

Usually ships in 3-6 days

0

Cub Cadet SI-783200PS

SEAT SWITCH NC/NO

Note: (Not Shown)

$48.99

$

Usually ships in 3-6 days

0
