ZU 2014 K (80455) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Unistat Transmission Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

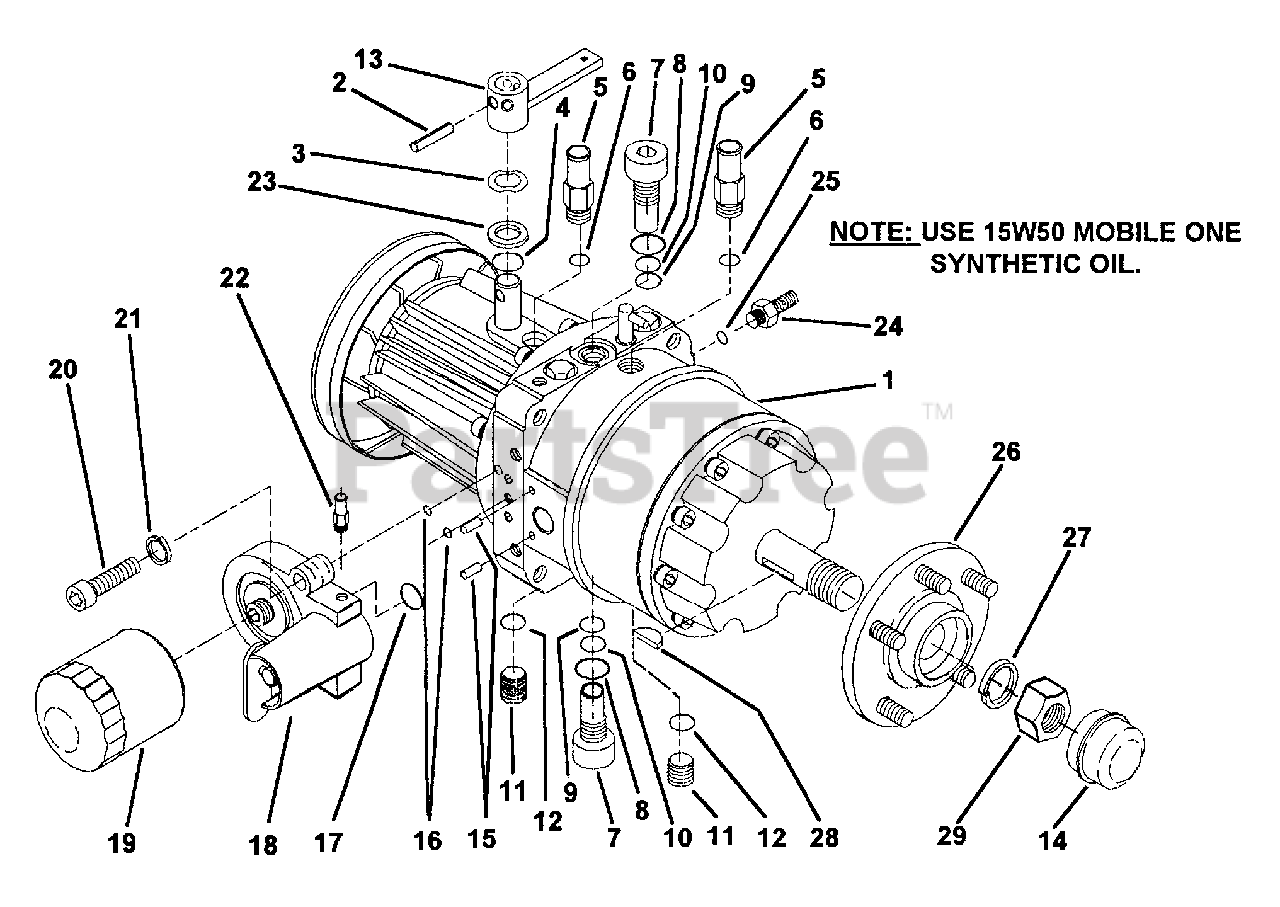

Unistat Transmission Parts Diagram

  • Title

1

Snapper 7062319

UNISTAT TRANSMISSION ASSEMBLY, R.H.

$

$

Currently unavailable

Snapper 7062320

UNISTAT TRANSMISSION ASSEMBLY, L.H.
(Superseded to 7062320YP)

$4875.99

$

Usually ships in 2-12 days

0

2

Snapper 7079364

ROLL PIN, 5/16" OD X 1-1/4 LONG
(Superseded to 7079364YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7062345

WASHER, WAVE SPRING: STAINLESS

$

$

Currently unavailable

4

Snapper 7062395

O-RING,.734 ID X .139 W

$

$

Currently unavailable

5

Snapper 7062351

FITTING, 5/8 HOSE 3/4-16, (comes with o-ring)

$

$

Currently unavailable

6

Snapper 7062377

O-RING, .644 ID X .087 W, VITON
(Superseded to 7062377YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7062346

HI-PRESSURE, RELIEF VALVE ASSEMBLY, HI-CAP
(Superseded to 7062346YP)

$119.99

$

Usually ships in 2-12 days

0

8

Snapper 7062374

O-RING, .924 ID X.1 16 W, VITON
(Superseded to 7062374YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7062396

O-RING, .671 ID X.1 39 W, VITON
(Superseded to 7062396YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7062394

BACK-UP RING
(Superseded to 7062394YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7062180

PLUG O-RING: 3/4-16 (comes with o-ring)

$

$

Currently unavailable

12

Snapper 7062377

O-RING,.644 ID X .087 W, VITON
(Superseded to 7062377YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7062344

SHIFT ARM WELDMENT

$

$

Currently unavailable

14

Snapper 7062372

GREASE CAP 2" ID X 3/8 DP

$

$

Currently unavailable

15

Snapper 7062347

DOWEL PIN 1/4 X 1/2 LG

$

$

Currently unavailable

16

Snapper 7079783

O-RING, VITON: .301 ID X .070 W
(Superseded to 7079783YP)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper 7079784

O-RING, VITON: 1.301 ID X .070 W
(Superseded to 7079784YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7062262

FILTER BLOCK ASSEMBLY, R.H.
(Superseded to 7062262YP)

Note: Was 62348

$467.99

$

Usually ships in 2-12 days

0

Snapper 7062349

FILTER BLOCK ASSEMBLY, L.H.
(Superseded to 7062349YP)

$444.99

$

Usually ships in 2-12 days

0

19

Snapper 7062261

OIL FILTER 3" OD X 3-11/32 H (NAPA 1045)

$

$

Not available

20

Snapper 7062375

SOCKET HEAD CAP SCREW 1/2"-13 X 2"
(Superseded to 7062375YP)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7090254

LOCK WASHER, 1/2" STANDARD SPLIT
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7062338

FITTING, 1/8 NPT X 3/8 HOSE

$

$

Currently unavailable

23

Snapper 7062376

WASHER, SS:.781 X 1.137 X 18 GA

$

$

Currently unavailable

24

Snapper 7062371

MOUNTING PLUG ASSEMBLY, (comes with o-ring)
(Superseded to 7062371YP)

$41.99

$

Usually ships in 2-12 days

0

25

Snapper 7062373

O-RING,.486 ID X.078W, VITON

$

$

Currently unavailable

26

Snapper 7062350

WHEEL, HUB, 5-BOLT UNISTAT

$

$

Currently unavailable

27

Snapper 7062352

LOCK WASHER, 1" SPLIT GAL.

$

$

Currently unavailable

28

Snapper 7091778

KEY, WDRF. USAS 808 1 /4" X 1 ", #15
(Superseded to 7091778YP)

Note: Was 62353

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7062354

HEX NUT, 1 "-14 NF, PLATED

$

$

Currently unavailable
