48" Mower Deck Assembly

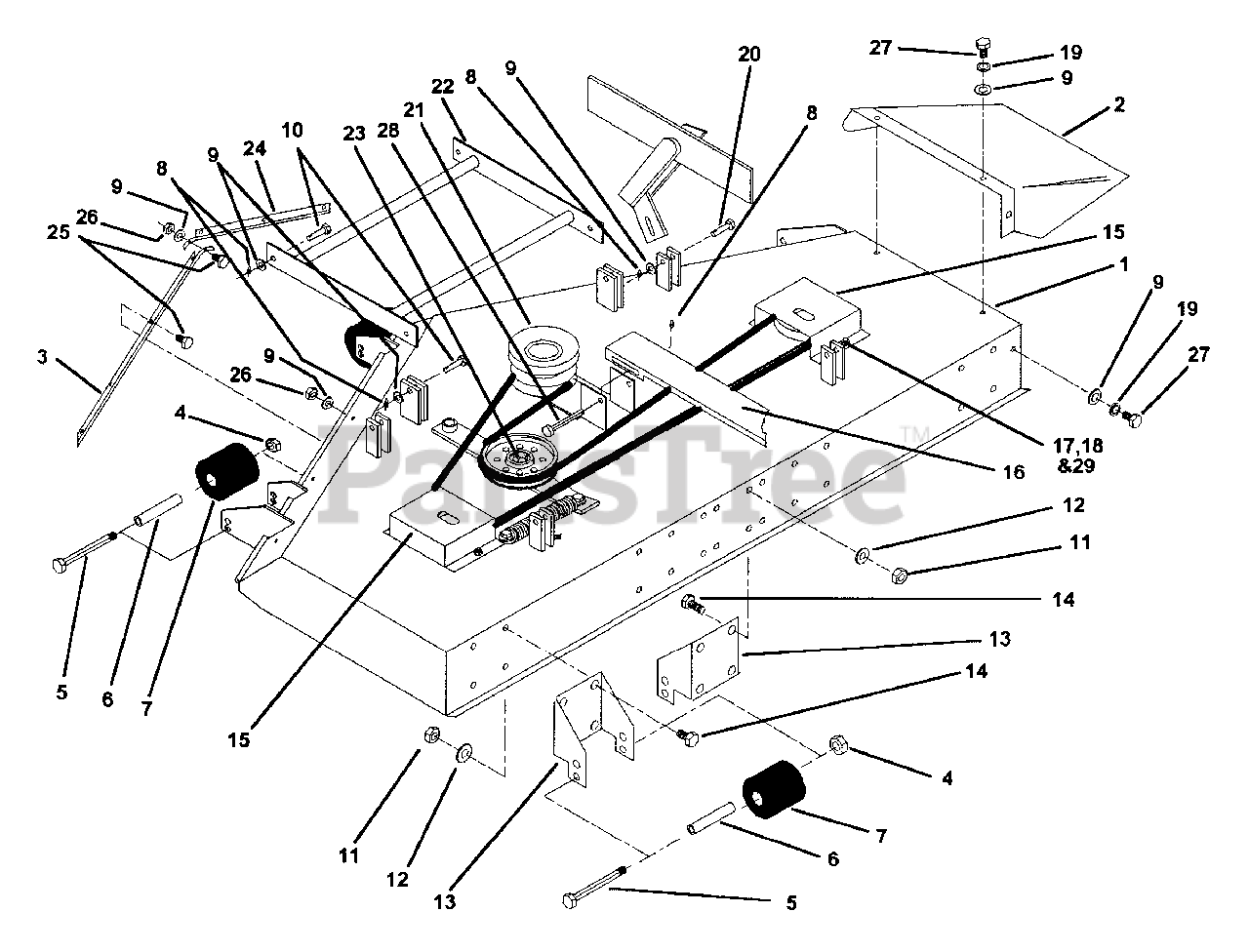

48" Deck Assembly Parts Diagram

  • Title

1

Snapper 7062392

48" DECK, WELDMENT

$

$

Currently unavailable

2

Snapper 7062211

48" DECK CHUTE ASSEMBLY

$

$

Currently unavailable

Snapper 7079234

DECAL, BLOODY STUMP

$

$

Currently unavailable

3

Snapper 7062224

LIP BAFFLE, 48" L. H.

$

$

Not available

4

Snapper 7090499

LOCKNUT, 3/8-16, .218 THICK
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7079597

CAP SCREW, 3/8-16 X 5" GR. 5

$

$

Not available

6

Snapper 7079023

ROLLER SPACER BUSHING

$

$

Not available

7

Snapper 7073142

ROLLER
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 8

0

8

Snapper 7091593

COTTER RUE RING, 5/16-3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 19

0

9

Snapper 7090188

WASHER FLAT STD. 5/16"
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7079831

CLEVIS PIN, 5/16 X 1-1/4" LONG
(Superseded to 7079831YP)

Note: Was 79284

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7090517

WASHER, FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

13

Snapper 7062214

REAR ANTI-SCALPER BRACKET
(Superseded to 7062214YP)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 7090603

BOLT, 3/8-16 X 7/8" GR. 5

$2.99

$

In Stock, only 1 left!

0

15

Snapper 7062215

PULLEY COVER, LOW HEIGHT

$

$

Currently unavailable

16

DOUBLE IDLER CHANNEL ASSEMBLY

Note: See "Double Idler Channel Assembly"

$

$

Not available

17

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 6

0

18

Snapper 7090052

LOCK WASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

19

Snapper 7079267

LOCK WASHER, 5/16" SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7013996

CLEVIS PIN, 5/16 X 1-1/2" LONG
(Superseded to 7013996SM)

Note: Was 79318

$3.49

$

In Stock, only 1 left!

0

21

SPINDLE ASSEMBLY

Note: See "Deck Spindle Assembly"

$

$

Not available

22

Snapper 7079655

DRAG BAR WELDMENT
(Superseded to 7079655YP)

$94.99

$

Usually ships in 2-12 days

0

23

SINGLE IDLER PARTS

Note: See "Single Idler Assembly"

$

$

Not available

24

Snapper 7062223

LIP BAFFLE, 48" DECK, R.H.

$

$

Currently unavailable

25

Snapper 7090316

BOLT, 5/16-18 X 3/4" CARRIAGE
(Superseded to 703225)

Note: Was 79438

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7091298

NUT, 5/16-18 NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 9

0

27

Snapper 7076934

BOLT, 5/16-18 X 3/4" GR. 5
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7090071

CLEVIS PIN, 3/8 X 2-3/4 O.A.L.
(Superseded to 703818)

Note: Was 62163

$3.49

$

In Stock, only 1 left!

0

29

Snapper 7091294

WASHER, FLAT STD, STEEL, 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 10

0

Snapper 7062199

DECAL, "GREASE SPINDLES"
(Superseded to 7062199YP)

$7.99

$

Usually ships in 2-12 days

0

Snapper 7079240

DECAL, "WARNING ROTATING BLADES"
(Superseded to 7079240YP)

$12.99

$

Usually ships in 2-12 days

0

Snapper 7079242

DECAL, "MISSING DECK CHUTE"

$

$

Currently unavailable

Snapper 7062389

DECAL, "MODEL ZU4804M"

$

$

Currently unavailable

Snapper 7079777

48" DECK CROSS BELT, AP-100
(Superseded to 7079777YP)

$57.99

$

Usually ships in 2-12 days

0

Snapper 7062065

ENGINE TO DECK BELT, BP-87
(Superseded to 7062065YP)

$34.99

$

Usually ships in 2-12 days

0
