01-16KH01 (SK-486) - Toro Garden Tractor (1982) ELECTRICAL SYSTEM - SB-421 Parts Diagram

Garden Tractor

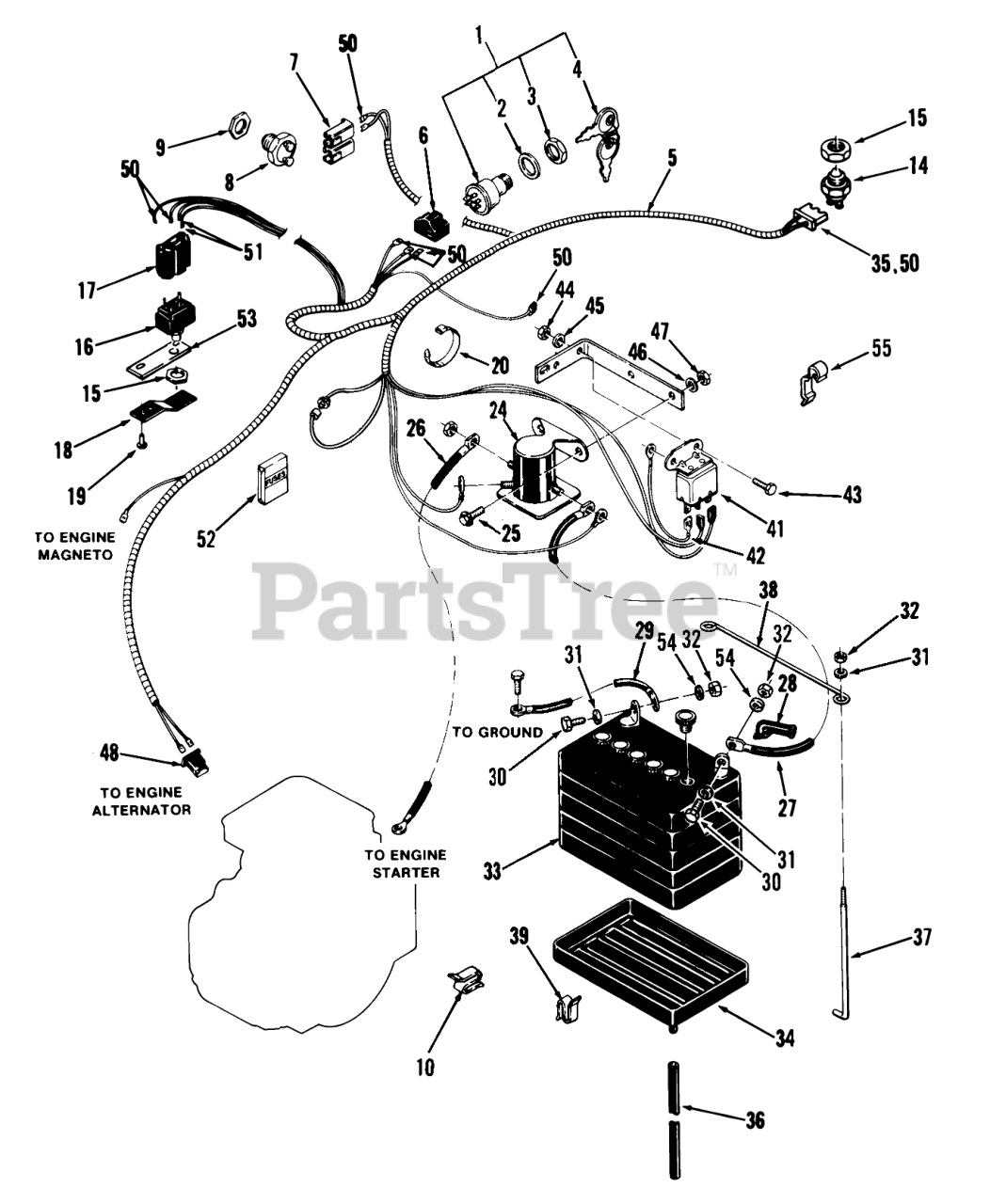

ELECTRICAL SYSTEM - SB-421 Parts Diagram

  • Title

1

Toro 103990

SWITCH-IGNITION

$27.99

$

In Stock, Qty 12

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

3

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

4

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 13

0

5

Toro 109121

Wiring Harness

$

$

Not available

6

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, Qty 10

0

7

Toro 106771

CONNECTOR BODY

$

$

Not available

8

Toro 105877

SWITCH-INTERLOK CLUT
(Superseded to 38-0430)

$61.99

$

Usually ships in 3-6 days

0

9

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

10

Toro 3023

SPEED CLIP

$

$

Not available

14

Toro 105877

SWITCH-INTERLOK CLUT
(Superseded to 38-0430)

$61.99

$

Usually ships in 3-6 days

0

15

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

16

Toro 104680

SWITCH-CLUTCH

$125.99

$

Usually ships in 3-6 days

0

17

Toro 105303

CONNECTOR 5 WAY

$4.49

$

Usually ships in 3-6 days

0

18

Toro 105873

CLIP-SWITCH

$

$

Not available

19

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

20

Toro 100571

PLASTIC TIE

$

$

Not available

24

Toro 108544

SOLENOID

$116.99

$

In Stock, only 1 left!

0

25

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

26

Toro 3660

Wire
(Superseded to 704057)

$

$

Not available

27

Toro 4432

Cable
(Superseded to 111074)

$25.99

$

Usually ships in 3-6 days

0

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 100335

WIRE-GROUND

$24.99

$

Usually ships in 3-6 days

0

30

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

31

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

32

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

33

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

34

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

35

Toro 106771

CONNECTOR BODY

$

$

Not available

36

Toro 109112

TUBE-BATTERY DRAIN

$

$

Not available

37

Toro 109547

HOOK

$10.99

$

In Stock, Qty 5

0

38

Toro 105504

ROD-HOLD DOWN

$19.99

$

In Stock, Qty 6

0

39

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

41

Toro 106833

Relay
(Superseded to 99-5365)

$98.99

$

Usually ships in 3-6 days

0

42

Toro 106784

RELAY-GROUND WIRE

$

$

Not available

43

Toro 911403

Bolt 10-32 X 5/8

$

$

Not available

44

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

45

Toro 920152

Lockwasher Internal

$

$

Not available

46

Toro 920122

LOCKWASHER

$

$

Not available

47

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

48

Toro 518151

Conn Body Part of 7

$

$

Currently unavailable

50

Toro 102651

Terminal

$

$

Not available

51

Toro 105306

TERMINAL-TAB RCPT

$3.49

$

Usually ships in 3-6 days

0

52

Toro 101639

FUSE

$2.99

$

Usually ships in 3-6 days

0

53

Toro 108307

CLAMP-PTO SWITCH

$

$

Not available

54

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

55

Toro 8519

CLIP-WIRE

$

$

Not available
