02600 - Toro HoverPro 400 Walk-Behind Mower (SN: 314000001 - 314999999) (2014) FUEL TANK ASSEMBLY Parts Diagram

HoverPro 400 Walk-Behind Mower

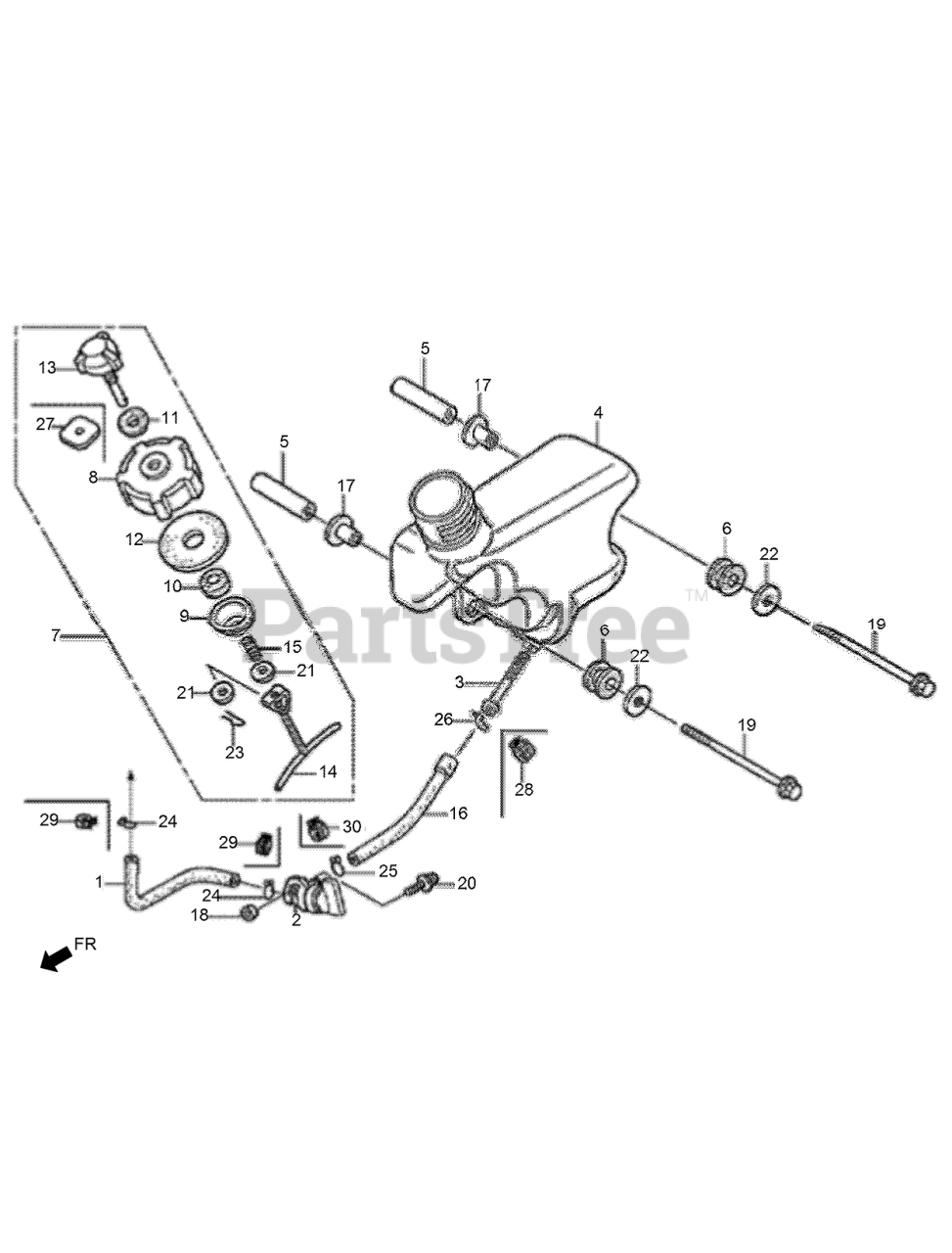

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 132-0350

TUBE B-FUEL (from S/N 1005402)

$

$

Not available

1

Toro 132-0351

TUBE B-FUEL (to S/N 1005401)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 132-0355

COCK ASM-FUEL

$17.99

$

Usually ships in 3-6 days

0

3

Toro 132-0358

STRAINER-FUEL

$16.99

$

Usually ships in 3-6 days

0

4

Toro 132-0399

TANK-FUEL (to S/N 1003833)

$53.99

$

Usually ships in 3-6 days

0

4

Toro 132-0400

TANK-FUEL (from S/N 1003834)

$152.99

$

Usually ships in 3-6 days

0

5

Toro 132-0405

COLLAR-TANK SETTING

$5.99

$

Usually ships in 3-6 days

0

6

Toro 132-0407

RUBBER A-TANK MOUNTING

$3.99

$

Usually ships in 3-6 days

0

7

Toro 132-0415

CAP ASM-FUEL TANK (to S/N 1002356)
(Superseded to 132-0417)

$104.99

$

Usually ships in 3-6 days

0

7

Toro 132-0416

CAP ASM-FUEL TANK (from S/N 1002357 to 1003184)
(Superseded to 132-0417)

$104.99

$

Usually ships in 3-6 days

0

7

Toro 132-0417

CAP ASM-FUEL TANK (from S/N 1003185)

$104.99

$

Usually ships in 3-6 days

0

8

Toro 132-0418

BODY-FUEL CAP (to S/N 1003184)

$14.99

$

Usually ships in 3-6 days

0

8

Toro 132-0419

BODY-FUEL CAP (from S/N 1003185)

$14.99

$

Usually ships in 3-6 days

0

9

Toro 132-0421

INNER-FUEL CAP

$7.99

$

Usually ships in 3-6 days

0

10

Toro 132-0422

SPONGE-FUEL CAP BREATHER

$3.99

$

Usually ships in 3-6 days

0

11

Toro 132-0425

PACKING-VALVE (to S/N 1002356)

$3.49

$

Usually ships in 3-6 days

0

12

Toro 132-0426

PACKING-FUEL CAP

$7.49

$

Usually ships in 3-6 days

0

13

Toro 132-0427

BREATHER VALVE ASM (to S/N 1002356)

$13.99

$

Usually ships in 3-6 days

0

13

Toro 132-0428

BREATHER VALVE ASM (from S/N 1002357)

$13.99

$

Usually ships in 3-6 days

0

14

Toro 132-0429

LINK-FUEL CAP

$7.99

$

Usually ships in 3-6 days

0

15

Toro 132-0430

SPRING-FUEL CAP

$5.49

$

Usually ships in 3-6 days

0

16

Toro 132-0435

TUBE-FUEL (from S/N 1005402)

$

$

Not available

16

Toro 132-0437

TUBE-FUEL TANK (to S/N 1005401)

$5.49

$

Usually ships in 3-6 days

0

17

Toro 132-0460

COLLAR-CANISTER MOUNTING

$9.49

$

Usually ships in 3-6 days

0

18

Toro 132-0527

COLLAR-FR WINKER

$5.99

$

Usually ships in 3-6 days

0

19

Toro 132-0599

BOLT-FLANGE-6X65

$12.99

$

Usually ships in 3-6 days

0

20

Toro 132-0681

SCREW-WASHER-5X10

$3.49

$

Usually ships in 3-6 days

0

21

Toro 132-0687

WASHER-PLAIN-4MM

$3.49

$

Usually ships in 3-6 days

0

22

Toro 132-0690

WASHER-PLAIN-6MM

$2.99

$

Usually ships in 3-6 days

0

23

Toro 132-0691

PIN-LOCK-4MM

$3.49

$

Usually ships in 3-6 days

0

24

Toro 132-0699

CLIP-TUBE (to S/N 1005401)

$3.49

$

Usually ships in 3-6 days

0

25

Toro 131-8209

CLIP-TUBE (to S/N 1005401)

$6.49

$

Usually ships in 3-6 days

0

26

Toro 131-8210

CLIP-TUBE (to S/N 1005401)

$3.99

$

Usually ships in 3-6 days

0

27

Toro 132-0424

TUBE-FUEL (from S/N 1002357)

$2.99

$

Usually ships in 3-6 days

0

28

Toro 131-8213

CLAMP-TUBE (from S/N 1005402)

$8.49

$

Usually ships in 3-6 days

0

29

Toro 131-8211

CLAMP-TUBE (from S/N 1005402)

$7.49

$

Usually ships in 3-6 days

0

30

Toro 131-8212

CLAMP-TUBE (from S/N 1005402)

$8.99

$

Usually ships in 3-6 days

0
