05-32ES01 - Toro 32" Side-Discharge Electric Mower Deck (1981) REAR DISCHARGE MOWER-42 IN. (107 CM)-BATTERY POWERED VEHICLE IDENTIFICATION NUMBER 05-42ER01 Parts Diagram

32" Side-Discharge Electric Mower Deck

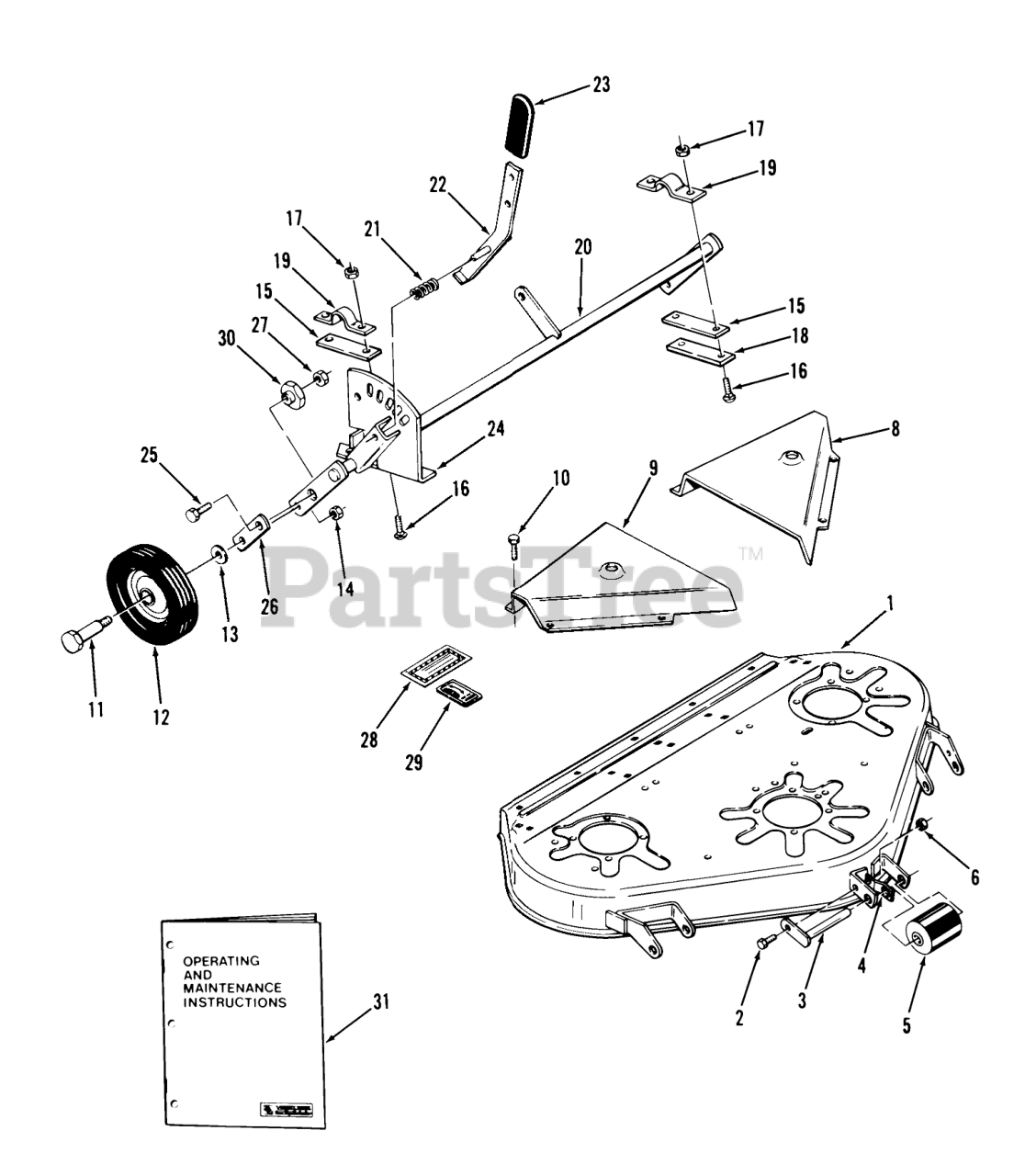

REAR DISCHARGE MOWER-42 IN. (107 CM)-BATTERY POWERED VEHICLE IDENTIFICATION NUMBER 05-42ER01 Parts Diagram

  • Title

1

Toro 107830

Mower Deck Assembly

$

$

Not available

2

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 15

0

3

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, only 2 left!

0

4

Toro 102773

SPRING ROLLER STOP

$

$

Not available

5

Toro 5240

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 9

0

6

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

8

Toro 106638

Belt Cover LH
(Superseded to 106638-01)

$62.99

$

Usually ships in 3-6 days

0

9

Toro 106409

Belt Cover RH
(Superseded to 106409-01)

$62.99

$

Usually ships in 3-6 days

0

10

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

11

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 7

0

12

Toro 103665

Wheel
(Superseded to 110506)

$37.99

$

In Stock, Qty 15

0

13

Toro 920211

WASHER

$

$

Not available

14

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

15

Toro 106468

Strap 1/16
(Superseded to 110842)

$

$

Not available

16

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

18

Toro 106377

Strap
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

19

Toro 106378

CLAMP

$

$

Not available

20

Toro 107433

Gage Wheel Support
(Superseded to 110243)

$

$

Not available

21

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 9

0

22

Toro 106483

Lever

$

$

Not available

23

Toro 102597

GRIP

$1.99

$

In Stock, only 1 left!

0

24

Toro 106392

Quadrant
(Superseded to 106392-01)

$32.99

$

Usually ships in 3-6 days

0

25

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

26

Toro 106464

Wheel Plate

$

$

Not available

27

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

28

Toro 105206

Caution Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

29

Toro 107131

Decal, Height

$

$

Currently unavailable

30

Toro 101387

STEERING ARM

$

$

Not available

31

Toro 810147R1

Operating and Maintenance Instructions

$

$

Currently unavailable
