05-36RL01 - Toro 36" Rear-Discharge Mower Deck (1986) REAR DISCHARGE MOWER-36 IN. (92 CM) (VEHICLE IDENTIFICATION NUMBER 35-36RL01) Parts Diagram

36" Rear-Discharge Mower Deck

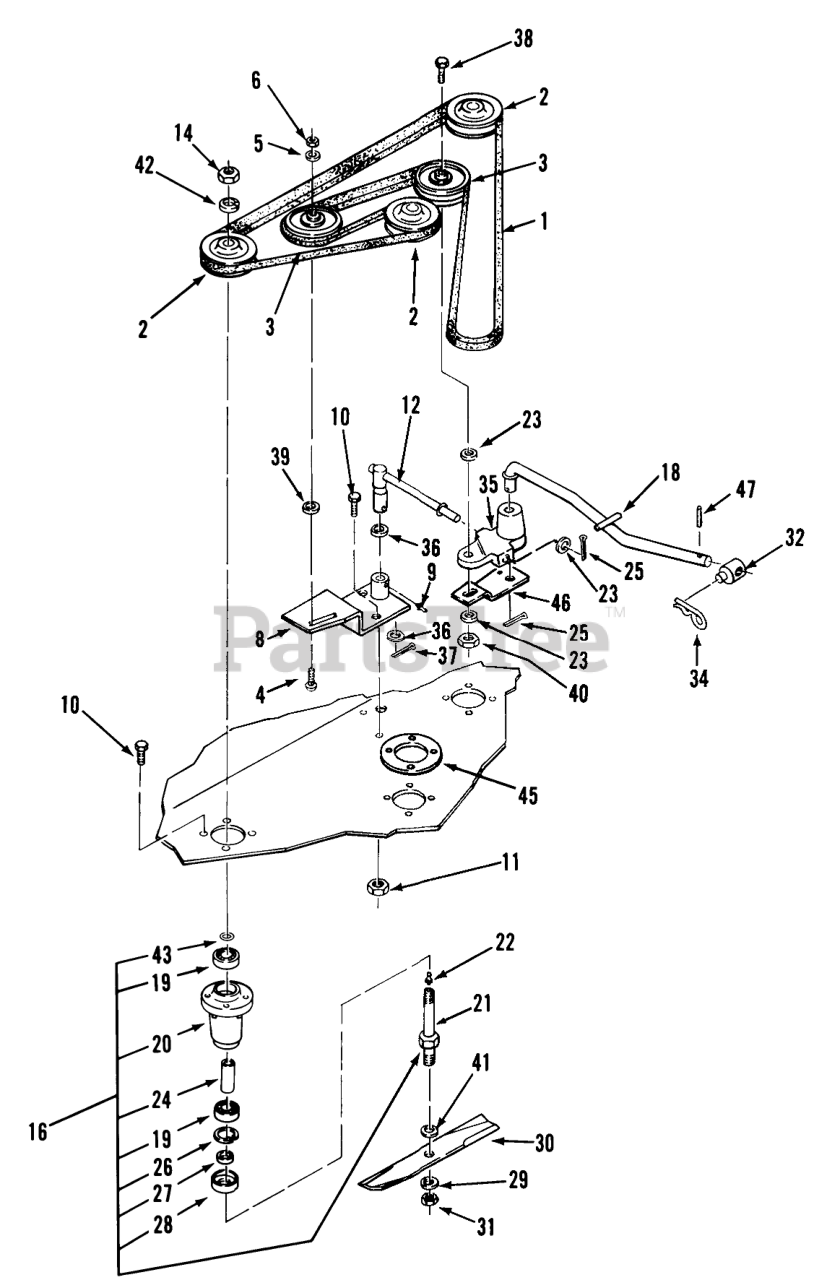

REAR DISCHARGE MOWER-36 IN. (92 CM) (VEHICLE IDENTIFICATION NUMBER 35-36RL01) Parts Diagram

  • Title

1

Toro 113169

BELT-MOWER

$216.99

$

Usually ships in 3-6 days

0

2

Toro 113048

PULLEY-BLADE

$

$

Not available

3

Toro 112976

PULLEY-FLAT IDLER

$87.99

$

In Stock, only 1 left!

0

4

Toro 9000067

Carriage Bolt 3/8-16 x 2

$

$

Currently unavailable

5

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

6

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

8

Toro 112968

Idler Bracket
(Superseded to 116734)

$

$

Not available

9

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, only 4 left!

0

10

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

11

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

12

Toro 112882

ASS'Y-IDLER ARM B
(Superseded to 112882-03)

$

$

Not available

14

Toro 9150894

Jam Nut
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 13

0

16

Toro 111581

Spindle Assembly (includes items 19 thru 22, 24, 26 thru 28 & 43)

$

$

Not available

18

Toro 113034

ASS'Y-ROD IDLER

$191.99

$

Usually ships in 3-6 days

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

20

Toro 107448

HOUSING-SPINDLE

$

$

Not available

21

Toro 112675

SHAFT-SPINDLE

$

$

Not available

22

Toro 1030

Zerk

$

$

Not available

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

24

Toro 110088

Spacer
(Superseded to 116115)

$24.99

$

Usually ships in 3-6 days

0

25

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 20+

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

In Stock, Qty 9

0

29

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$6.49

$

In Stock, only 3 left!

0

30

Toro 107983

S/A BLADE KIT

$136.99

$

Usually ships in 3-6 days

0

31

Toro 9150904

Nut-Jam
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$4.49

$

In Stock, Qty 20+

0

32

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 7

0

34

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

35

Toro 111560

BLOCK IDLER

$26.99

$

Usually ships in 3-6 days

0

36

Toro 920232

WASHER
(Superseded to 9202324)

$1.49

$

In Stock, only 3 left!

0

37

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 20+

0

38

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

39

Toro 106874

PAD-SHORT R

$

$

Not available

40

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

41

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

42

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

43

Toro 971015

O RING

$1.99

$

In Stock, Qty 20+

0

45

Toro 106117

PLATE-SPINDLE

$19.99

$

In Stock, only 1 left!

0

46

Toro 112975

ANCHOR-SPRING B

$

$

Not available

47

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0
