05-37SC03 - Toro 37" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) SPINDLE ASSEMBLY Parts Diagram

37" Side-Discharge Mower Deck

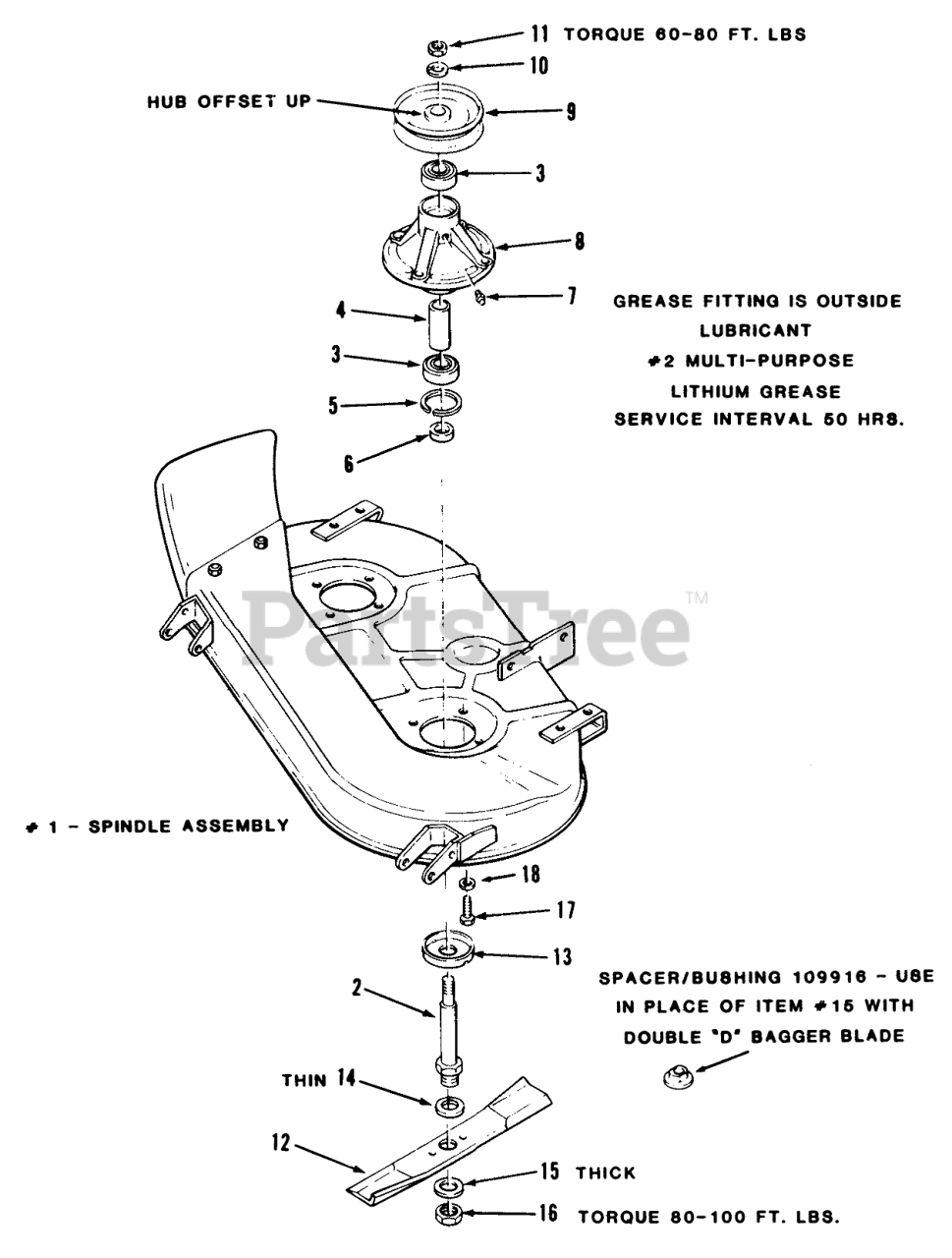

SPINDLE ASSEMBLY Parts Diagram

  • Title

2

Toro 109912

SHAFT SPINDLE

$

$

Not available

3

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

4

Toro 110200

TUBE

$

$

Not available

5

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

6

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 20+

0

7

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$8.49

$

Usually ships in 3-6 days

0

8

Toro 109913

HOUSING SPINDLE

$

$

Not available

9

Toro 111169

BLADE PULLEY

$67.99

$

Usually ships in 3-6 days

0

10

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, Qty 13

0

12

Toro 109079

ASSY BLADE KIT

$89.99

$

In Stock, only 4 left!

0

13

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

In Stock, Qty 9

0

14

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

15

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

16

Toro 915090

Nut
(Superseded to 32146-20)

$3.49

$

In Stock, Qty 20+

0

17

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

18

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

Toro 109911

Spindle Assembly (Incl. Ref. #2-8, & 14)

$

$

Not available
