05-42RK01 - Toro 42" Rear-Discharge Mower Deck (1988) SIDE DISCHARGE MOWER-37 IN. (94 CM) Parts Diagram

42" Rear-Discharge Mower Deck

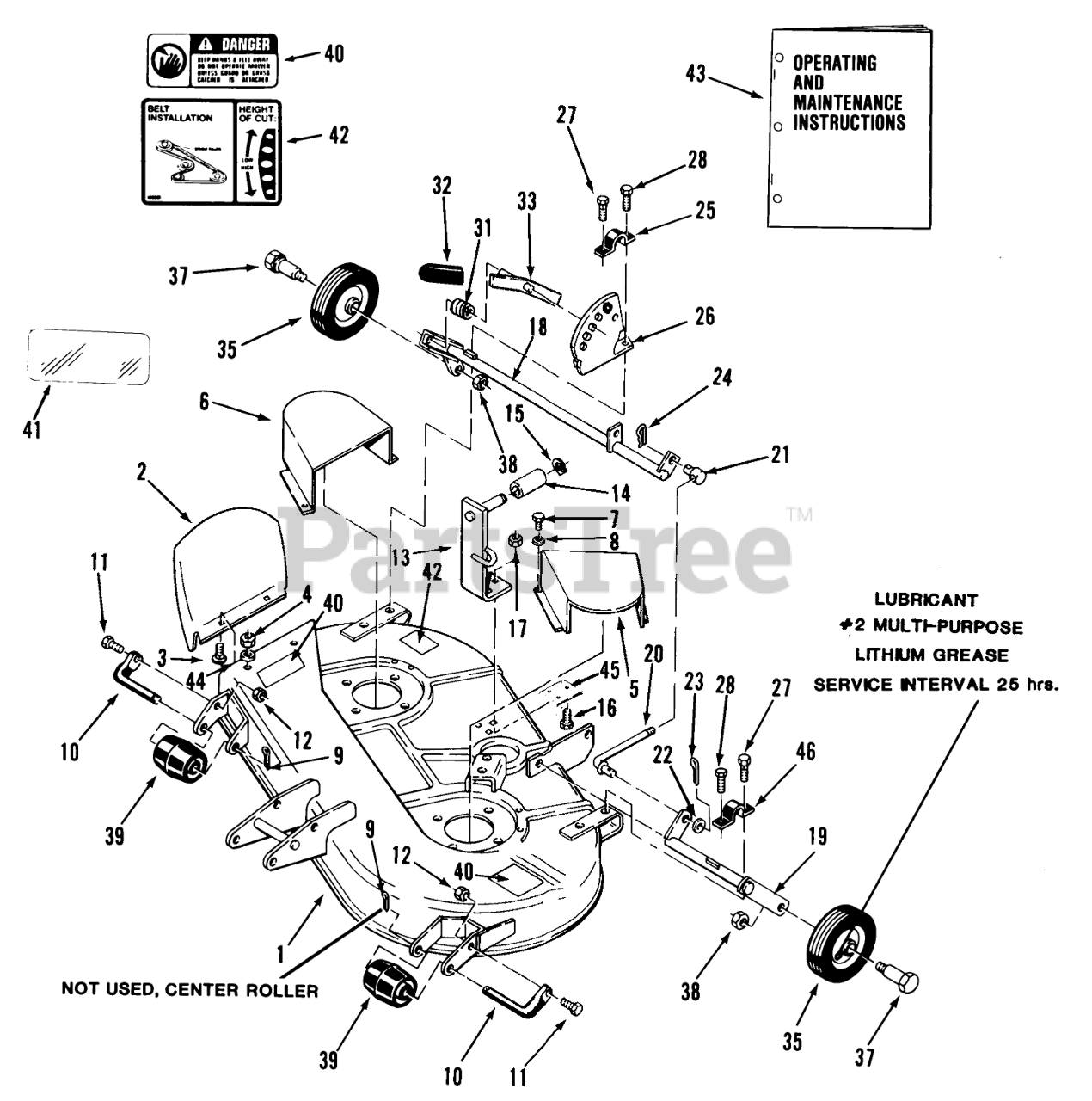

SIDE DISCHARGE MOWER-37 IN. (94 CM) Parts Diagram

  • Title

1

Toro 114687

Mower Deck
(Superseded to 18-1199)

$

$

Not available

2

Toro 108170

Chute Extension
(Superseded to 92-7290)

$

$

Not available

3

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

4

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

5

Toro 109999

COVER R

$

$

Not available

6

Toro 109998

COVER R

$282.99

$

Usually ships in 3-6 days

0

7

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

8

Toro 920037

WASHER

$

$

Not available

9

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, Qty 6

0

10

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 2 left!

0

11

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

12

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

13

Toro 114419

GUIDE BRACKET ASSY R

$

$

Not available

14

Toro 106383

SPACER

$

$

Not available

15

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

16

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

17

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

18

Toro 108183

Gage Wheel Support RH

$

$

Not available

19

Toro 108187

WA GAG WHL R
(Superseded to 108187-01)

$

$

Not available

20

Toro 110844

ROD CONNECTING

$28.99

$

Usually ships in 3-6 days

0

21

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

22

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

23

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

25

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

26

Toro 106392

Quadrant
(Superseded to 106392-01)

$32.99

$

Usually ships in 3-6 days

0

27

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

28

Toro 926716

Bolt
(Superseded to 9267164)

$

$

Not available

31

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 9

0

32

Toro 102597

GRIP

$1.99

$

In Stock, only 1 left!

0

33

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

35

Toro 110506

WHEEL

$37.99

$

In Stock, Qty 15

0

37

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 7

0

38

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

39

Toro 108798

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 9

0

40

Toro 111188

Danger Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

41

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0

42

Toro 108581

DECAL-BELT&HEIGHT

$

$

Not available

43

Toro 810552R1

Owner-s & Maintenance Instructions

$

$

Currently unavailable

44

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

45

Toro 113047

PLATE-REINFORCING R

$

$

Not available

46

Toro 112930

CLAMP B

$

$

Not available
