05-48SS01 - Toro 48" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) DECK & IDLER ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck

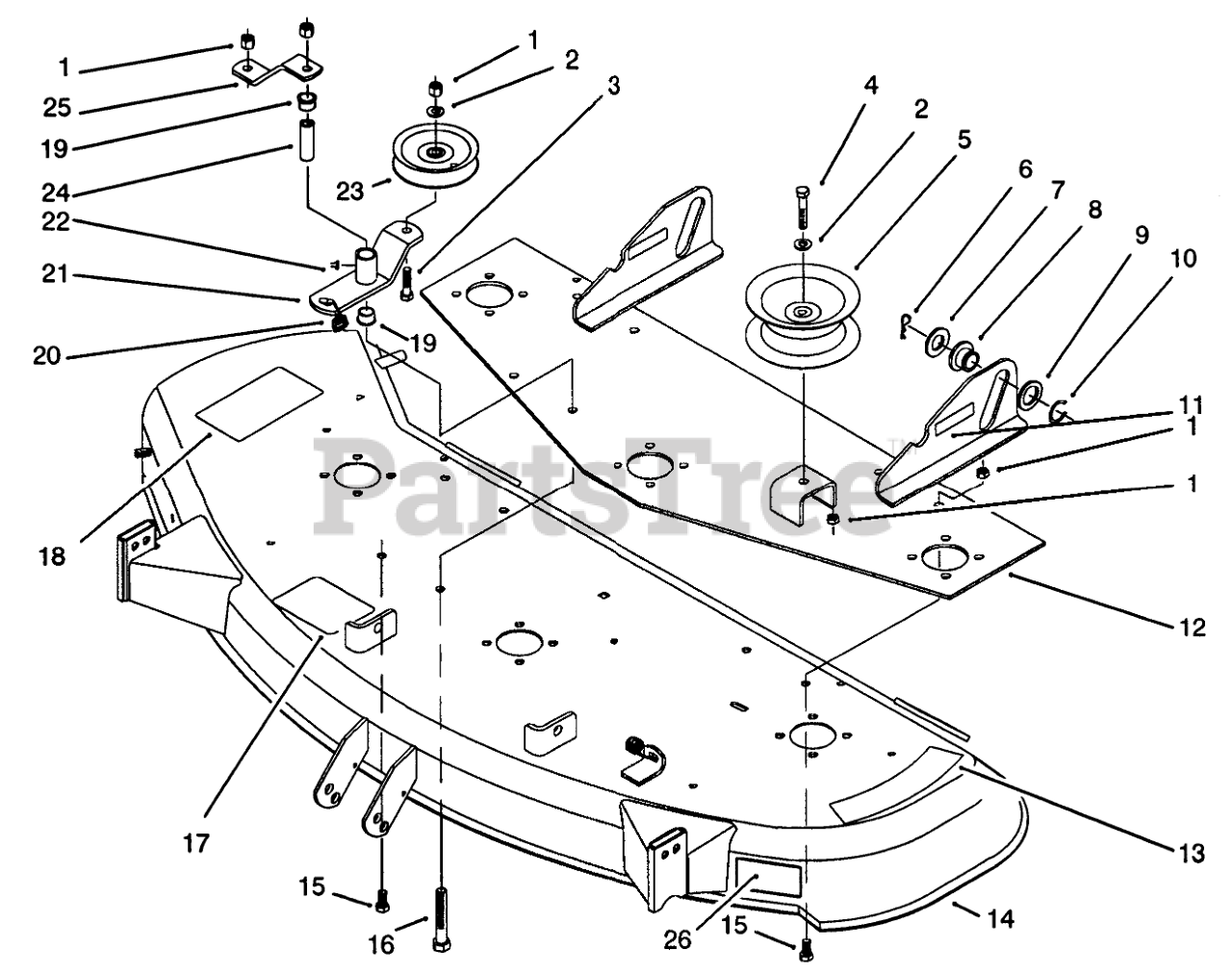

DECK & IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 78-8250

Pulley-Idler
(Superseded to 92-7082)

$117.99

$

Usually ships in 3-6 days

0

6

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$4.99

$

In Stock, Qty 5

0

7

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

8

Toro 78-7340

ROLLER-LIFT

$12.99

$

In Stock, only 2 left!

0

9

Toro 920239

Washer
(Superseded to 9202394)

$2.49

$

In Stock, only 1 left!

0

10

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 18

0

11

Toro 115196

Decal-Attach-A-Matic
(Superseded to 93-0322)

$4.99

$

Usually ships in 3-6 days

0

12

Toro 79-4410

Plate-Support
(Superseded to 94-9782-01)

$

$

Not available

13

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

14

Toro 79-4080

Deck-48"
(Superseded to 99-8016)

$

$

Not available

15

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 18

0

17

Toro 116286

DECAL-BELT INSTALL

$8.99

$

Usually ships in 3-6 days

0

18

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

19

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

20

Toro 116172

SPRING - EXTENSION

$43.99

$

In Stock, only 1 left!

0

21

Toro 78-3150

Arm-Idler
(Superseded to 98-9006)

$135.99

$

Usually ships in 3-6 days

0

22

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

23

Toro 79-2760

SPACER

$8.99

$

Usually ships in 3-6 days

0

24

Toro 114512

SPACER-2.0 LG R

$

$

Not available

25

Toro 78-3140

Strap-Brace
(Superseded to 78-3140-03)

$19.99

$

Usually ships in 3-6 days

0

26

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$11.99

$

Usually ships in 3-6 days

0
