1-0491 (C-120) - Toro Lawn Tractor (1975) 10.000 FUEL AND EXHAUST SYSTEMS (FIG. 10) Parts Diagram

Lawn Tractor

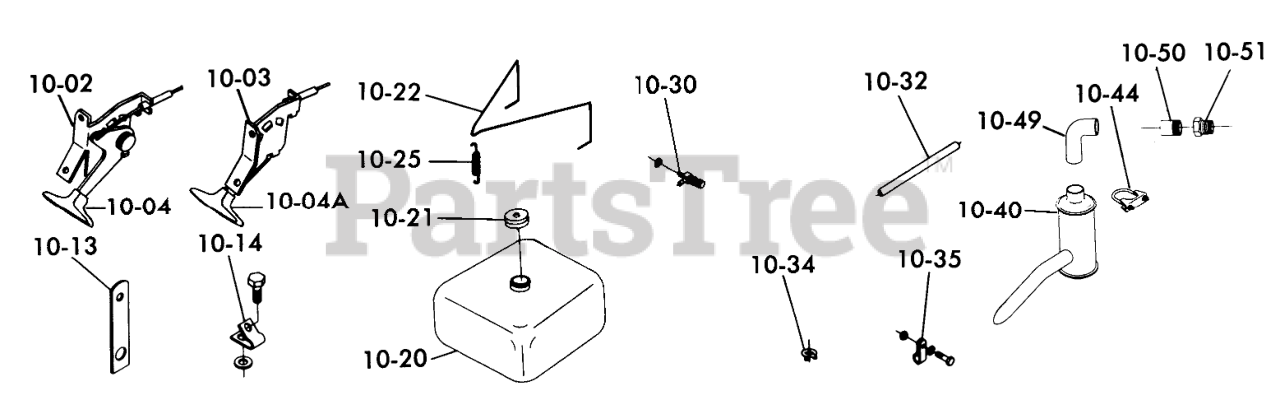

10.000 FUEL AND EXHAUST SYSTEMS (FIG. 10) Parts Diagram

  • Title

10-02

Toro 101837

Choke Control
(Superseded to 106752)

$

$

Not available

10-03

Toro 101834

THROTTLE CONTROL

$118.99

$

In Stock, only 1 left!

0

10-03

Toro 8713

SCREW

$

$

Not available

10-03

Toro 915964

#10-24 Kep-Nut
(Superseded to 32149-7)

$0.99

$

In Stock, Qty 10

0

10-04

Toro 102186

KNOB-CHOKE

$15.99

$

In Stock, Qty 7

0

10-04A

Toro 102185

KNOB-THROTTLE

$15.99

$

In Stock, only 2 left!

0

10-13

Toro 100452

Strap

$

$

Not available

10-14

Toro 100729

THROTTLE CONTROL CLP

$6.49

$

Usually ships in 3-6 days

0

10-14

Toro 2879

Clip
(Superseded to 7922)

$3.49

$

Usually ships in 3-6 days

0

10-14

Toro 960150

Screw
(Superseded to 3234-26)

$2.99

$

In Stock, Qty 16

0

10-14

Toro 5431

Special Nut

$

$

Not available

10-14

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

Usually ships in 3-6 days

0

10-14

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

10-20

Toro 103487

Bushing
(Superseded to 104065)

$

$

Not available

10-21

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

10-22

Toro 100427

HOLD DOWN WIRE

$10.99

$

In Stock, only 1 left!

0

10-25

Toro 6949

CLUTCH SPRING

$

$

Not available

10-30

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 5

0

10-30

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

10-32

Toro 8214

Fuel Hose
(Superseded to 110521)

$

$

Not available

10-34

Toro 950154

Clamp

$

$

Not available

10-35

Toro 101861

CLAMP-HOSE

$

$

Not available

10-35

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

10-35

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

10-35

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

10-40

Toro 102258

MUFFLER

$

$

Not available

10-44

Toro 102645

ASSY-MUFFLER CLAMP

$13.99

$

In Stock, only 1 left!

0

10-49

Toro 102228

MUFFLER INLET TUBE

$

$

Not available

10-50

Toro 102265

NIPPLE

Note: C-160 ONLY

$

$

Not available

10-51

Toro 943151

REDUCER 1 1/4-1

Note: C-160 ONLY

$

$

Not available
