1-0610 - Toro Lawn Tractor, 18hp (1973) BRAKE, SPEED CONTROL LINKAGE Parts Diagram

Lawn Tractor, 18hp

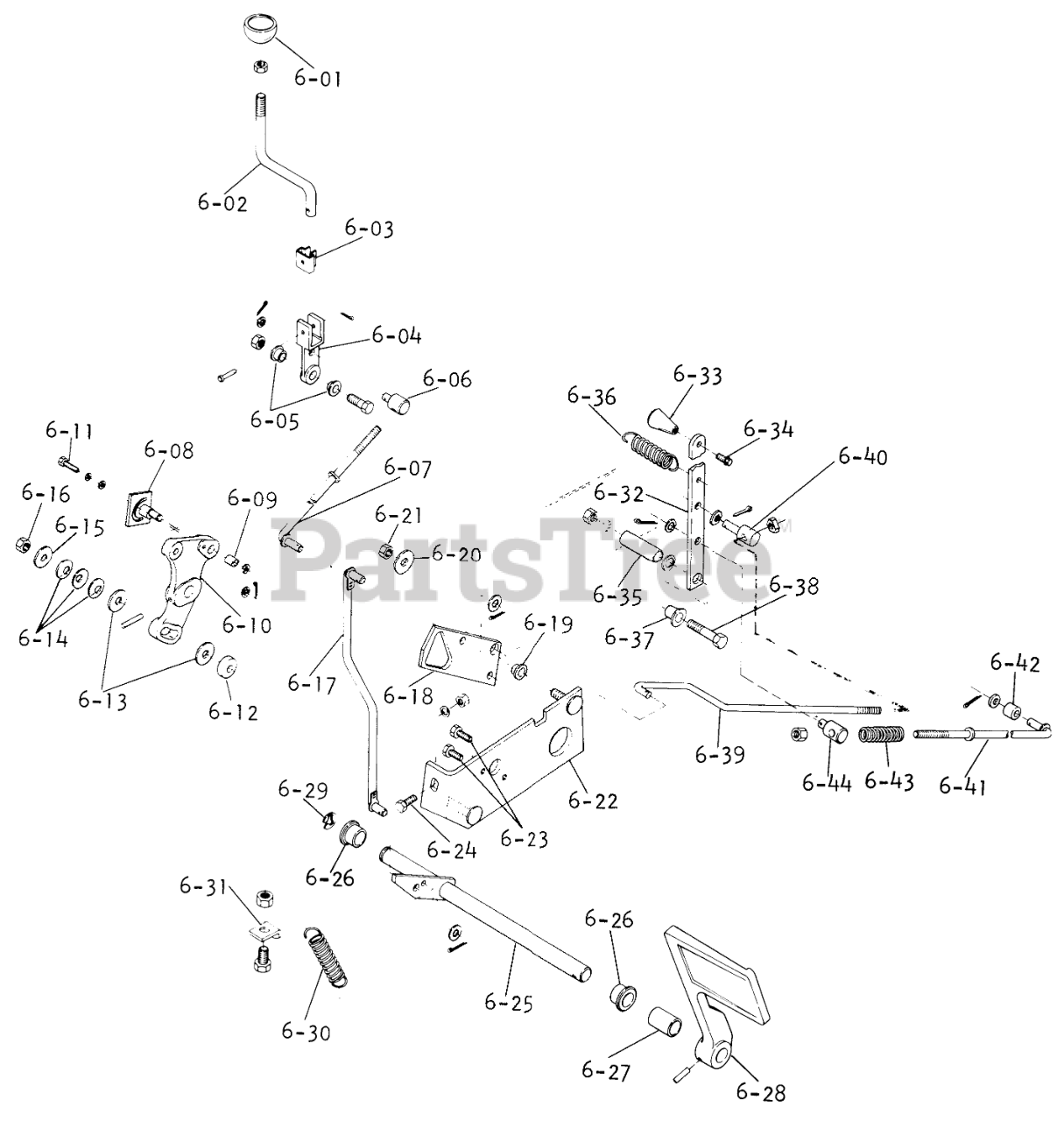

BRAKE, SPEED CONTROL LINKAGE Parts Diagram

  • Title

6-01

Toro 102891

KNOB

$61.99

$

Usually ships in 3-6 days

0

6-02

Toro 102391

HANDLE

$

$

Not available

Toro 915238-4

Nut-1/2-13

$

$

Currently unavailable

6-03

Toro 102691

Spring

$

$

Not available

6-04

Toro 102688

Pivot

$

$

Not available

Toro 932913-4

Pin-Clevis

$

$

Currently unavailable

Toro 932000-4

Cotter Pin

$

$

Currently unavailable

6-05

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6-06

Toro 101161

TRUNNION

$

$

Not available

6-07

Toro 101105

Rod Assy.

$

$

Currently unavailable

6-08

Toro 102692

Eccentric Assy.

$

$

Not available

6-09

Toro 100304

Spacer

$6.49

$

In Stock, only 1 left!

0

Toro 100307

E RING

$

$

Not available

6-10

Toro 101910

Arm

$

$

Not available

Toro 933216

PIN-ROLL, SPIROL

$2.99

$

In Stock, only 1 left!

0

6-11

Toro 911420-4

Bolt-Hex slot 1/4-20 X 1/2

$

$

Currently unavailable

Toro 920007-4

Washer

$

$

Currently unavailable

Toro 920122-4

Lockwasher

$

$

Currently unavailable

6-12

Toro 100687

SPACER

$

$

Not available

6-13

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

6-14

Toro 100365

WASHER-SPRING DISC

$

$

Not available

6-15

Toro 920009-4

Washer

$

$

Currently unavailable

6-16

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6-17

Toro 101064

Rod-Neutral Pedal

$

$

Not available

Toro 920009-4

Washer

$

$

Currently unavailable

Toro 932008-4

Hairpin

$

$

Currently unavailable

6-18

Toro 101073

Plate-Neutral Return

$

$

Not available

6-19

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

6-20

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

6-21

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6-22

Toro 102596

Plate Assy.

$

$

Not available

6-23

Toro 960152-4

Bolt 1/4-20 x 5/8 Whizlock

$

$

Currently unavailable

6-24

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

6-25

Toro 101089

Assy-Shaft

$

$

Not available

6-26

Toro 101442

BEARING

$

$

Not available

6-27

Toro 979120-4

Spacer

$

$

Currently unavailable

6-28

Toro 102004

Brake Pedal

$

$

Not available

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

6-29

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

6-30

Toro 9170

SPRING-EXTENSION

$

$

Not available

6-31

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

6-32

Toro 101098

Handle-Parking Brake

$

$

Currently unavailable

6-33

Toro 102892

KNOB

$31.99

$

Usually ships in 3-6 days

0

6-34

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

6-35

Toro 979234

Spacer

$

$

Currently unavailable

6-36

Toro 102722

Spring

$

$

Not available

6-37

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

6-38

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

6-39

Toro 102594

Rod-Brake Handle to Neutral Cam

$

$

Not available

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6-40

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 7

0

6-41

Toro 101105

Rod Assy.

$

$

Currently unavailable

Toro 915113-6

Nut

$

$

Currently unavailable

6-42

Toro 100283

SPACER

$17.99

$

Usually ships in 3-6 days

0

6-43

Toro 102977

Spring

$

$

Not available

6-44

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 7

0
