1-0610 - Toro Lawn Tractor, 18hp (1973) FRONT AXLE AND STEERING Parts Diagram

Lawn Tractor, 18hp

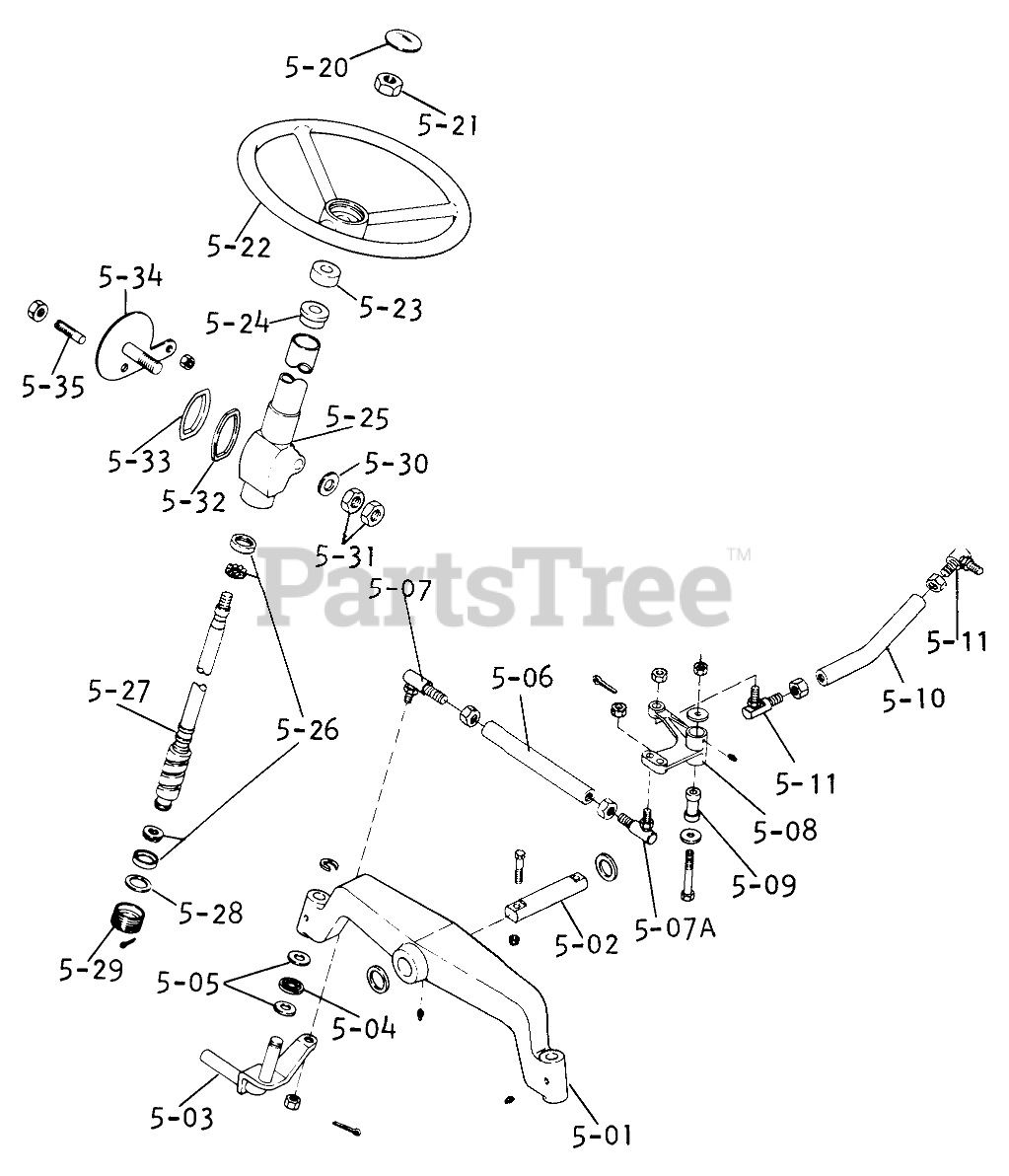

FRONT AXLE AND STEERING Parts Diagram

  • Title

5-01

Toro 100466

Axle-Front

$

$

Currently unavailable

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, only 4 left!

0

Toro 1030

Zerk

$

$

Not available

5-02

Toro 100887

PIN AXLE

$

$

Not available

Toro 908048-4

Bolt, 7/16-14 X 1 1/2

$

$

Currently unavailable

Toro 915664-4

Nut, 7/16-14

$

$

Currently unavailable

Toro 920239-4

Washer

$

$

Currently unavailable

5-03

Toro 103422

RH SPINDLE ASM R

$

$

Not available

Toro 103423

Spindle Assy. L.H.

$

$

Not available

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

5-04

Toro 8571

BEARING-THRUST
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

5-05

Toro 7956

Race Thrust
(Superseded to 702982)

$8.99

$

In Stock, Qty 5

0

5-06

Toro 103419

TIE ROD R

$

$

Not available

5-07

Toro 103416

Ball Joint RH
(Superseded to 99-5863)

$

$

Not available

Toro 915004-6

Nut, 1/2-20

$

$

Currently unavailable

Toro 915030-4

Nut 3/8-24 Slotted

$

$

Currently unavailable

Toro 920246

Washer
(Superseded to 9202464)

$

$

Not available

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

5-07A

Toro 103417

LH BALL JOINT R

$

$

Not available

Toro 103638

Jam Nut LH 1/2-20
(Superseded to 3220-12)

$2.49

$

Usually ships in 3-6 days

0

5-08

Toro 103426

Bell Crank-Steering

$

$

Not available

5-09

Toro 102623

Bushing

$

$

Not available

Toro 908066-4

Bolt, 1/2-13 X 3 1/4

$

$

Currently unavailable

Toro 915665-4

Nut-ES 1/2-13

$

$

Currently unavailable

Toro 920041-4

Washer-Flat

$

$

Currently unavailable

5-10

Toro 103418

Drag Link

$

$

Not available

5-11

Toro 103416

Ball Joint RH
(Superseded to 99-5863)

$

$

Not available

5-20

Toro 102856

STEERING WHEEL INSE

$

$

Not available

5-21

Toro 915089-4

Nut-5/8-18

$

$

Currently unavailable

5-22

Toro 102624

Steering Wheel

$

$

Not available

5-23

Toro 103068

Cover-Dust
(Superseded to 21-9260)

$8.49

$

Usually ships in 3-6 days

0

5-24

Toro 103067

Column Bearing
(Superseded to 38-6300)

$

$

Not available

5-25

Toro 103064

Assy-Housing and Column

$

$

Not available

Toro 103066

Fitting-Grease

$

$

Currently unavailable

5-26

Toro 103069

BALL CUP KIT

$

$

Not available

5-27

Toro N.A

Worm Assy. (Order complete Steering Gear Assy. 103415)

$

$

Currently unavailable

5-28

Toro 103070

WASHER

$

$

Not available

5-29

Toro 103065

Adjusting Plug
(Superseded to 21-9130)

$

$

Not available

Toro 932019-4

Cotter Pin 1/8 x 1/3

$

$

Currently unavailable

5-30

Toro 103073

Washer 49/64 X 1 1/4

$

$

Currently unavailable

5-31

Toro 915090-4

Nut, 3/4-16

$

$

Currently unavailable

5-32

Toro 103075

SEAL

$

$

Not available

5-33

Toro 103074

Retainer-Seal
(Superseded to 22-8470)

$

$

Not available

5-34

Toro 103071

Lever

$

$

Not available

5-35

Toro 103072

Stud
(Superseded to 22-8300)

$124.99

$

Usually ships in 3-6 days

0

Toro 915088-4

Nut, 9/16-18

$

$

Currently unavailable
