1-0611 (D-180) - Toro Lawn Tractor (1974) 3-POINT HITCH (PLATE 7.080) STANDARD ON D-200 Parts Diagram

Lawn Tractor

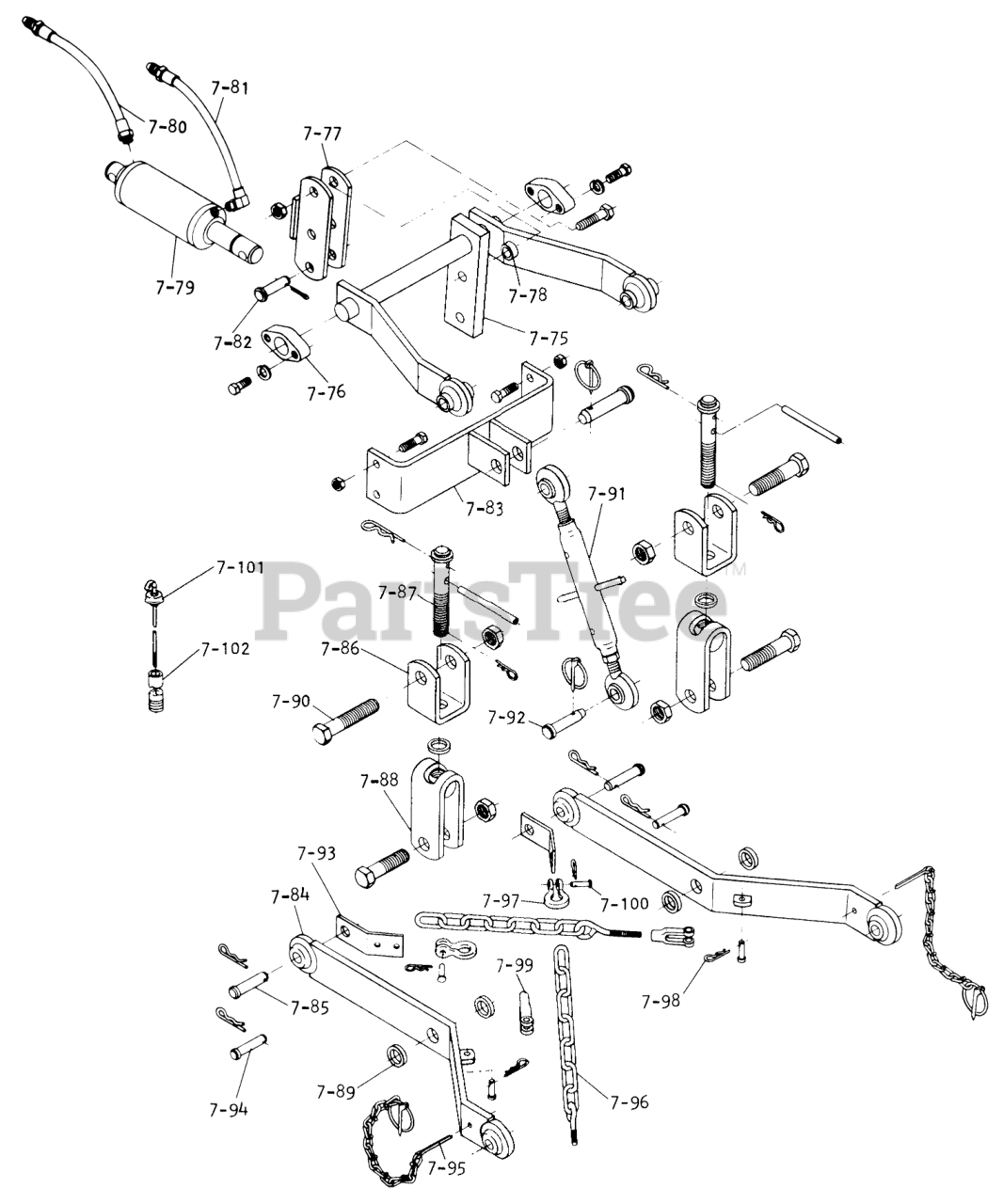

3-POINT HITCH (PLATE 7.080) STANDARD ON D-200 Parts Diagram

  • Title

7-75

Toro 102100

Lift Assembly

$

$

Not available

Toro 908062-4

Bolt, Hex 1/2-13 X 2 1/4

$

$

Currently unavailable

Toro 915665-4

Nut-ES 1/2-13

$

$

Currently unavailable

7-76

Toro 8340

BLOCK R

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 920083-4

Lockwasher

$

$

Currently unavailable

7-77

Toro 102104

Pivot Assembly

$

$

Not available

7-78

Toro 9118

SPACER

$

$

Not available

7-79

Toro 8365

Cylinder

$

$

Not available

7-80

Toro 102174

Hose-Hydraulic

$

$

Not available

7-81

Toro 102287

Hose-Hydraulic

$

$

Not available

7-82

Toro 8715

PIN CLEVIS .50 DIA

$

$

Not available

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

7-83

Toro 102096

Upper Link Assembly

$

$

Not available

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

7-84

Toro 8751

Lower Hitch Link
(Superseded to 104673)

$

$

Not available

7-85

Toro 8784

PIN 5/8 DIA LINK ATT

$

$

Not available

Toro 933506-4

Hairpen

$

$

Currently unavailable

7-86

Toro 102091

LIFT BAR

$

$

Not available

7-87

Toro 102107

Adjust Rod Assembly

$

$

Not available

Toro 933240

PIN

$

$

Not available

Toro 920232-4

Washer, plain

$

$

Currently unavailable

7-88

Toro 102109

Adjuster

$

$

Not available

Toro 908105-4

Bolt, Hex 3/4-10 X 3

$

$

Currently unavailable

Toro 915610-4

Nut, 3/4-10 E.S.

$

$

Currently unavailable

7-89

Toro 8244

SPACER

$13.99

$

Usually ships in 3-6 days

0

7-90

Toro 908106-4

Bolt-Hex 3/4-10 x 3 1/2

$

$

Currently unavailable

Toro 933505-4

Hairpin

$

$

Currently unavailable

7-91

Toro 8752

Link-Upper

$

$

Not available

7-92

Toro 8820

PIN HITCH UPPER LINK

$

$

Not available

Toro 8796

HITCH PIN ASSY

$

$

Not available

7-93

Toro 8774

BRKT CHAIN ATTACHING

$

$

Not available

7-94

Toro 8715

PIN CLEVIS .50 DIA

$

$

Not available

7-95

Toro 8795

Klik Pin
(Superseded to 283-76)

$8.99

$

Usually ships in 3-6 days

0

7-96

Toro 102112

Sway Chain

$

$

Not available

7-97

Toro 8781

Clevis

$

$

Not available

7-98

Toro 933503-4

Hairpin

$

$

Currently unavailable

7-99

Toro 8812

CLEVIS

$43.99

$

Usually ships in 3-6 days

0

7-100

Toro 932121-4

Pin

$

$

Currently unavailable

7-101

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

7-102

Toro 102273

Nipple

$

$

Not available
