1-0611 (D-180) - Toro Lawn Tractor (1974) DISC TURNING BRAKES (PLATE 6.020) STANDARD ON D-200 Parts Diagram

Lawn Tractor

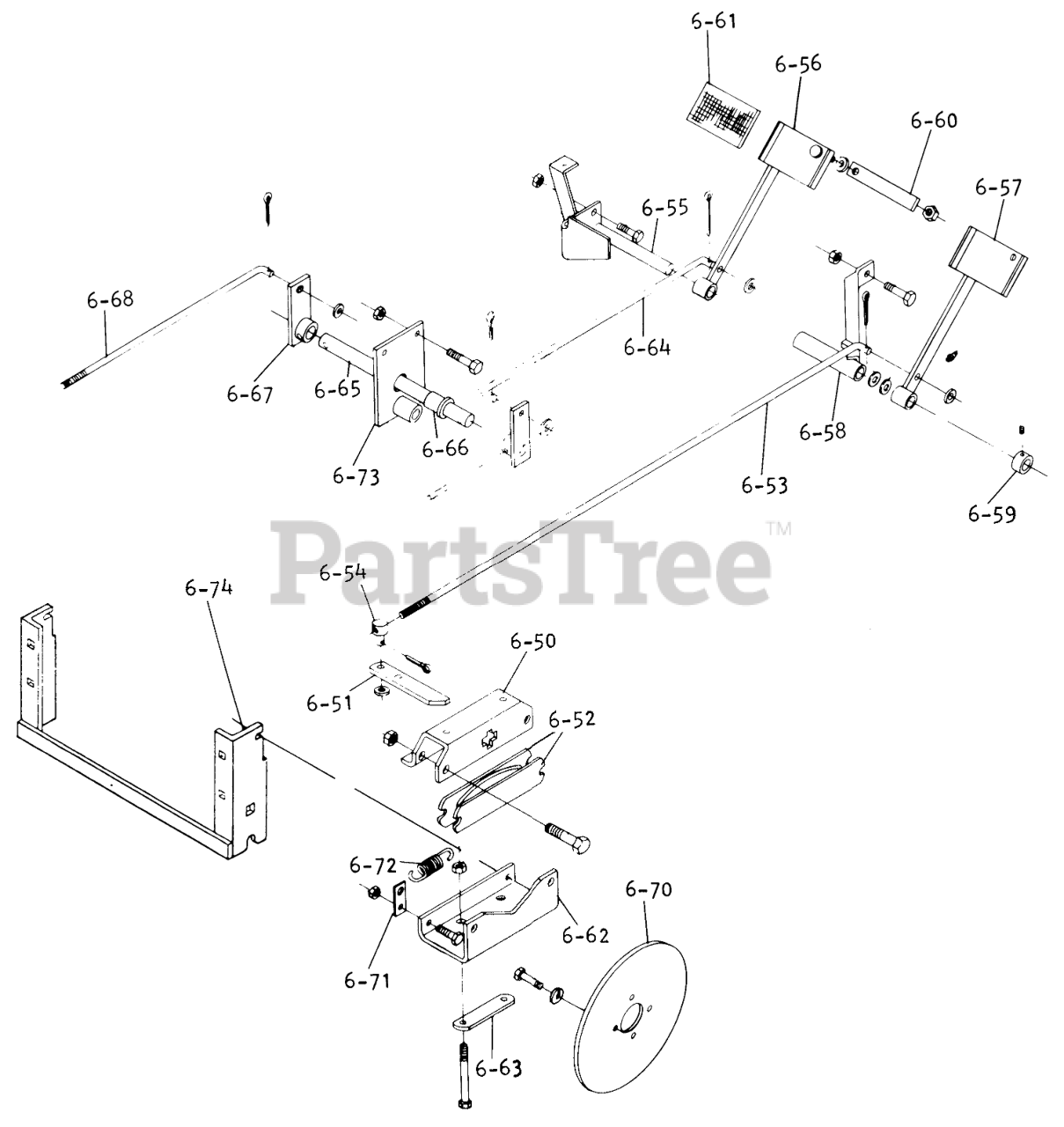

DISC TURNING BRAKES (PLATE 6.020) STANDARD ON D-200 Parts Diagram

  • Title

6-50

Toro 104452

Bracket-Secondary

$

$

Currently unavailable

6-51

Toro 103115

Lever Assembly-Actuating

$

$

Currently unavailable

6-52

Toro 103116

Plate Assembly
(Superseded to 104798)

$

$

Not available

Toro 104377

Guide Sleeve

$

$

Not available

Toro 104378

Retaining Ring

$

$

Not available

6-53

Toro 102230

Rod Assembly

$

$

Not available

6-54

Toro 5791

Trunnion

$

$

Not available

Toro 932008-4

Hairpin

$

$

Currently unavailable

Toro 920009-4

Washer

$

$

Currently unavailable

6-55

Toro 102234

Pedal Pivot Assembly

$

$

Currently unavailable

6-56

Toro 102755

Pedal-L.H.

$

$

Not available

Toro 7073

Fitting-Grease

$

$

Not available

6-57

Toro 102754

Pedal-R.H.

$

$

Not available

6-58

Toro 103106

Brace Assembly

$

$

Currently unavailable

Toro 920239-4

Washer

$

$

Currently unavailable

6-59

Toro 8192

Collar

$

$

Not available

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

6-60

Toro 102259

Bar

$

$

Not available

Toro MW-4405

Washer

$

$

Currently unavailable

6-61

Toro 103097

Brake Pedal Pad

$

$

Not available

6-62

Toro 104362

Plate-Brake Mounting

$

$

Not available

6-63

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6-64

Toro 102238

Rod Assembly

$

$

Currently unavailable

6-65

Toro 102237

Shaft

$

$

Currently unavailable

6-66

Toro 101442

BEARING

$

$

Not available

6-67

Toro 102240

Arm Assembly

$

$

Currently unavailable

Toro 933213

SPIROL PIN

$

$

Not available

6-68

Toro 102244

Rod Assembly

$

$

Not available

Toro 5791

Trunnion

$

$

Not available

6-70

Toro 102229

Disc

$

$

Currently unavailable

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 920083-4

Lockwasher

$

$

Currently unavailable

6-71

Toro 104383

Plate-Spring Anchor

$

$

Not available

6-72

Toro 103125

SPRING

$9.49

$

In Stock, Qty 7

0

6-73

Toro 102194

Support Assembly

$

$

Currently unavailable

6-74

Toro 104365

Bracket Assembly

$

$

Not available
