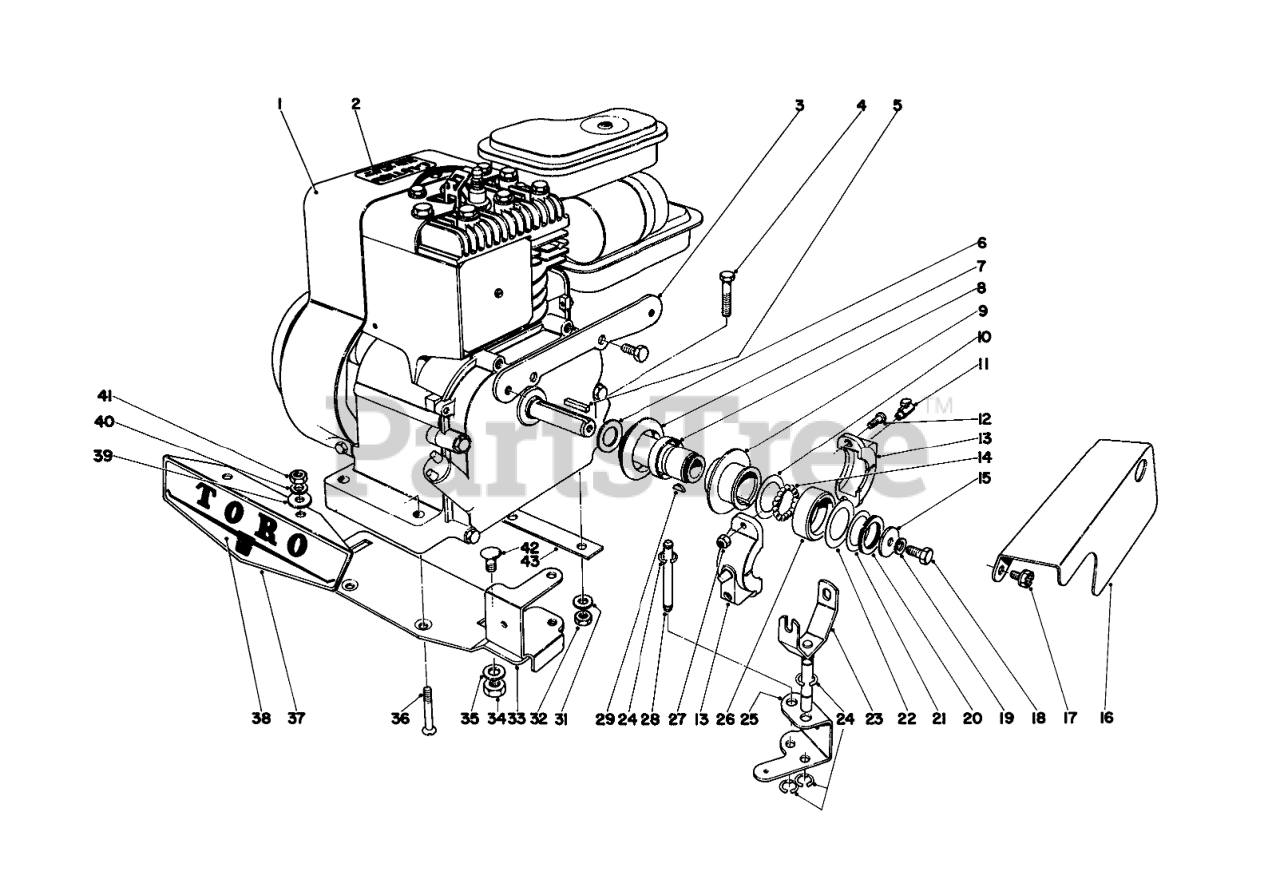

10323 - Toro Sportlawn Walk-Behind Mower (SN: 000000001 - 000999999) (1970) ENGINE ASSEMBLY Parts Diagram

Sportlawn Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-90

Engine

$

$

Currently unavailable

2

Toro 3-7644

Decal

$

$

Not available

3

Toro 3-7658

Bracket

$

$

Not available

4

Toro 3210-15

Screw

$

$

Currently unavailable

5

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 2 left!

0

6

Toro 5-1574

Washer

$

$

Not available

7

Toro 5-1558

CLUTCH BODY ASM

$

$

Not available

8

Toro 5-1546

IDLER BUSHING

$

$

Not available

9

Toro 5-1545

SLIDING FLANGE

$154.99

$

Usually ships in 3-6 days

0

10

Toro 5-1548

Thrust Washer

$

$

Currently unavailable

11

Toro 5-1555

OIL CUP (OBS)

$

$

Not available

12

Toro 3250-4

SCREW

$

$

Not available

13

Toro 3-3517

Slip Ring

$

$

Not available

14

Toro 255-5

BALL-STEEL

$2.49

$

Usually ships in 3-6 days

0

15

Toro 4-8620

Washer

$

$

Not available

16

Toro 3-7661

Belt Guard

$

$

Not available

17

Toro 32140-39

Screw
(Superseded to 32140-55)

$

$

Not available

18

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 32120-14

Snap Ring

$

$

Not available

21

Toro 5-1550

WASHER

$7.49

$

Usually ships in 3-6 days

0

22

Toro 5-1226

WASHER

$4.99

$

Usually ships in 3-6 days

0

23

Toro 5-4291

SHIFT FORK ASM R

$

$

Not available

24

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 12

0

25

Toro 5-4293

SHIFT FORK BRACKET

$

$

Not available

26

Toro 5-1547

Shift Collar

$

$

Not available

27

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

28

Toro 3-4031

Pivot Shaft
(Superseded to 95-1832)

$

$

Not available

29

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 32146-4

NUT-LOCK NI

$

$

Not available

33

Toro 3-5780

Clutch Mounting Plate

$

$

Not available

34

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

35

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Toro 3289-10

Screw

$

$

Not available

37

Toro 3-5602

Name Plate

$

$

Currently unavailable

38

Toro 3-5601

Decal

$

$

Currently unavailable

39

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

41

Toro 3219-1

NUT-HEX

$0.99

$

In Stock, Qty 11

0

42

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

43

Toro 5-4294

Shim

$

$

Not available

Toro 2-3029

Clutch Assy. (Incl. Ref. 7-15 & 18-22, 26 & 29)

$

$

Not available

Toro 2-6739

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 2-6769

Loose Parts Kit, Hi Cut

Note: Not illustrated

$

$

Currently unavailable

Toro 4-7249

Loose Parts Kit (Lo-cut)

Note: Not illustrated

$

$

Currently unavailable
