136-7860 - Toro Heavy Duty Air Cleaner Kit CARBURETOR ASSEMBLY Parts Diagram

Heavy Duty Air Cleaner Kit

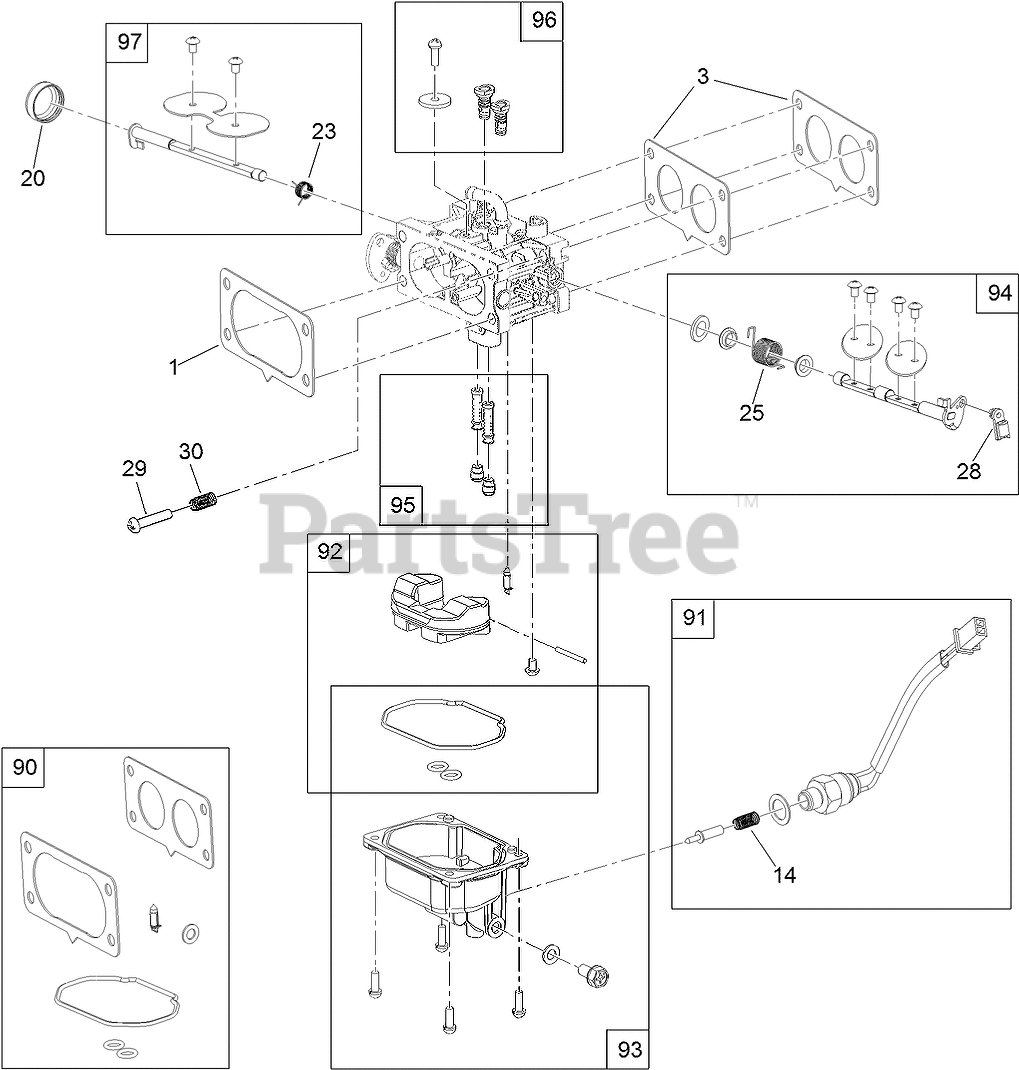

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 127-9251

GASKET-CARBURETOR

$5.49

$

In Stock, Qty 17

0

3

Toro 127-9246

GASKET-CARBURETOR

$5.49

$

In Stock, Qty 16

0

14

Toro 127-9319

SPRING

$2.99

$

Usually ships in 3-6 days

0

20

Toro 127-9325

COVER-SHAFT, CHOKE

$6.49

$

Usually ships in 3-6 days

0

23

Toro 127-9328

SPRING

$2.99

$

In Stock, Qty 13

0

25

Toro 127-9330

SPRING

$1.49

$

Usually ships in 3-6 days

0

28

Toro 127-9333

CLAMP-LOCK

$5.49

$

Usually ships in 3-6 days

0

29

Toro 127-9334

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

30

Toro 127-9335

SPRING

$1.99

$

Usually ships in 3-6 days

0

90

Toro 127-9290

CARBURETOR REPAIR KIT

$37.99

$

In Stock, Qty 11

0

91

Toro 127-9292

SOLENOID KIT

$45.99

$

In Stock, Qty 6

0

92

Toro 127-9340

FLOAT KIT

$27.99

$

Usually ships in 3-6 days

0

93

Toro 127-9341

BOWL KIT

$23.99

$

In Stock, only 2 left!

0

94

Toro 133-9817

THROTTLE SHAFT KIT

$31.99

$

Usually ships in 3-6 days

0

95

Toro 136-7846

NOZZLE AND JET KIT

$14.99

$

Usually ships in 3-6 days

0

96

Toro 136-7899

IDLE JET KIT

$6.99

$

In Stock, only 1 left!

0

97

Toro 127-9345

CHOKE SHAFT KIT

$11.99

$

In Stock, only 1 left!

0
