1365 GN - Husqvarna Portable Generator (2003-07) Control Panel Parts Diagram

Portable Generator

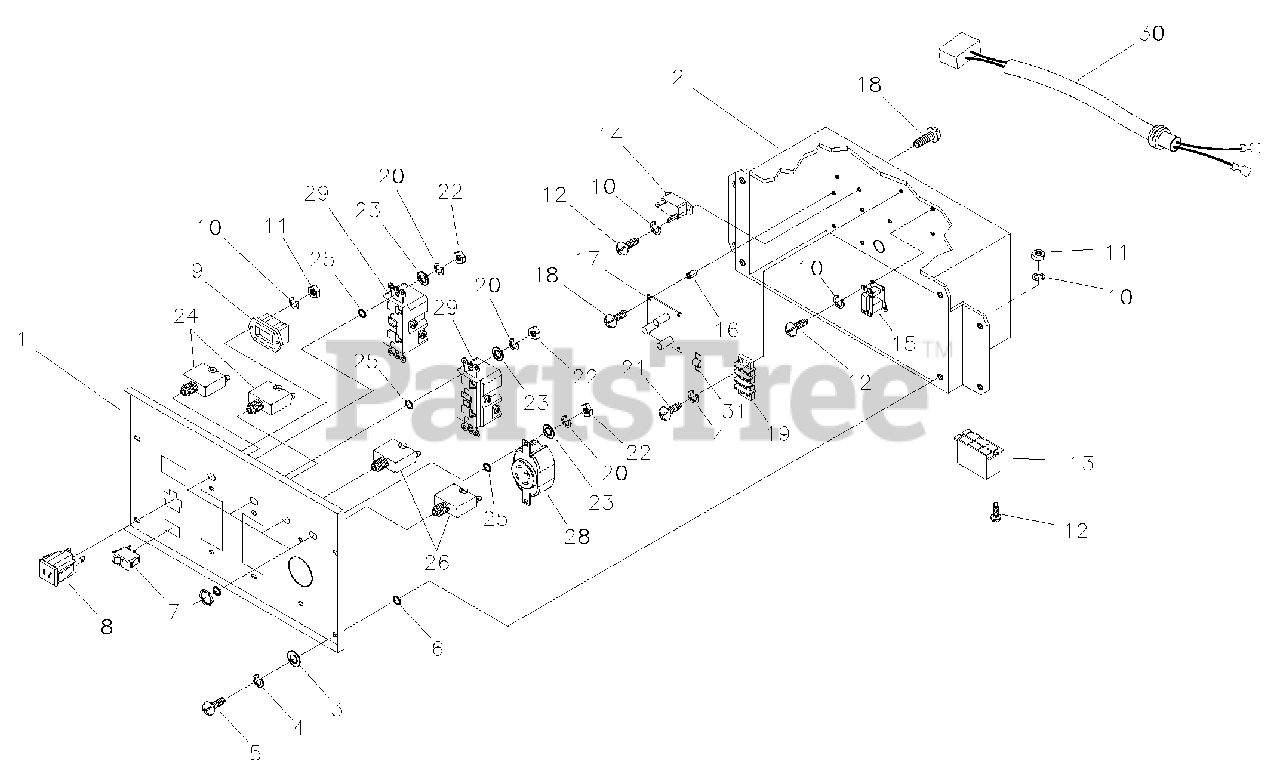

Control Panel Parts Diagram

  • Title
1

Husqvarna B191714GS

PANEL, Control

$

$

Currently unavailable

2

Husqvarna B192836GS

BOX, Control Panel

$

$

Currently unavailable

$

$

Currently unavailable

4

Husqvarna 49226GS

WASHER, Lock

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

7

Husqvarna 82538GS

SWITCH, Rocker

$

$

Currently unavailable

8

Husqvarna 90418GS

OUTLET, 12VDC, Snap

$

$

Currently unavailable

9

Husqvarna 77604GS

METER, Hour

$

$

Currently unavailable

10

Husqvarna 43182GS

WASHER, Lock

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

13

Husqvarna 22694GS

HOUSING, Receptacle

$

$

Currently unavailable

14

Husqvarna 87962GS

BREAKER, Circuit

$

$

Currently unavailable

15

Husqvarna 84028GS

TRANSFORMER, Idle Cnt

$

$

Currently unavailable

16

Husqvarna 64525GS

STANDOFF, Hex

$

$

Currently unavailable

17

Husqvarna 189367GS

PCB, Idle Control

$

$

Currently unavailable

$

$

Currently unavailable

19

Husqvarna 193077GS

STRIP,Terminal

$

$

Currently unavailable

20

Husqvarna 22264GS

WASHER, Lock

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Husqvarna 75207GS

BREAKER, Circuit

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Husqvarna 75207PGS

BREAKER, Circuit

$

$

Currently unavailable

27

Husqvarna 193095GS

JUMPER,Terminal Block

$

$

Currently unavailable

28

Husqvarna 43437GS

OUTLET, 120/240V, 30A

$

$

Currently unavailable

29

Husqvarna 80409GS

OUTLET, 120V, 20A, Duplex. GFCI

$

$

Currently unavailable

30

Husqvarna 189502GS

HARNESS,Wire

$

$

Currently unavailable
