1365 GN - Husqvarna Portable Generator (2006-04) Main Unit Parts Diagram

Portable Generator

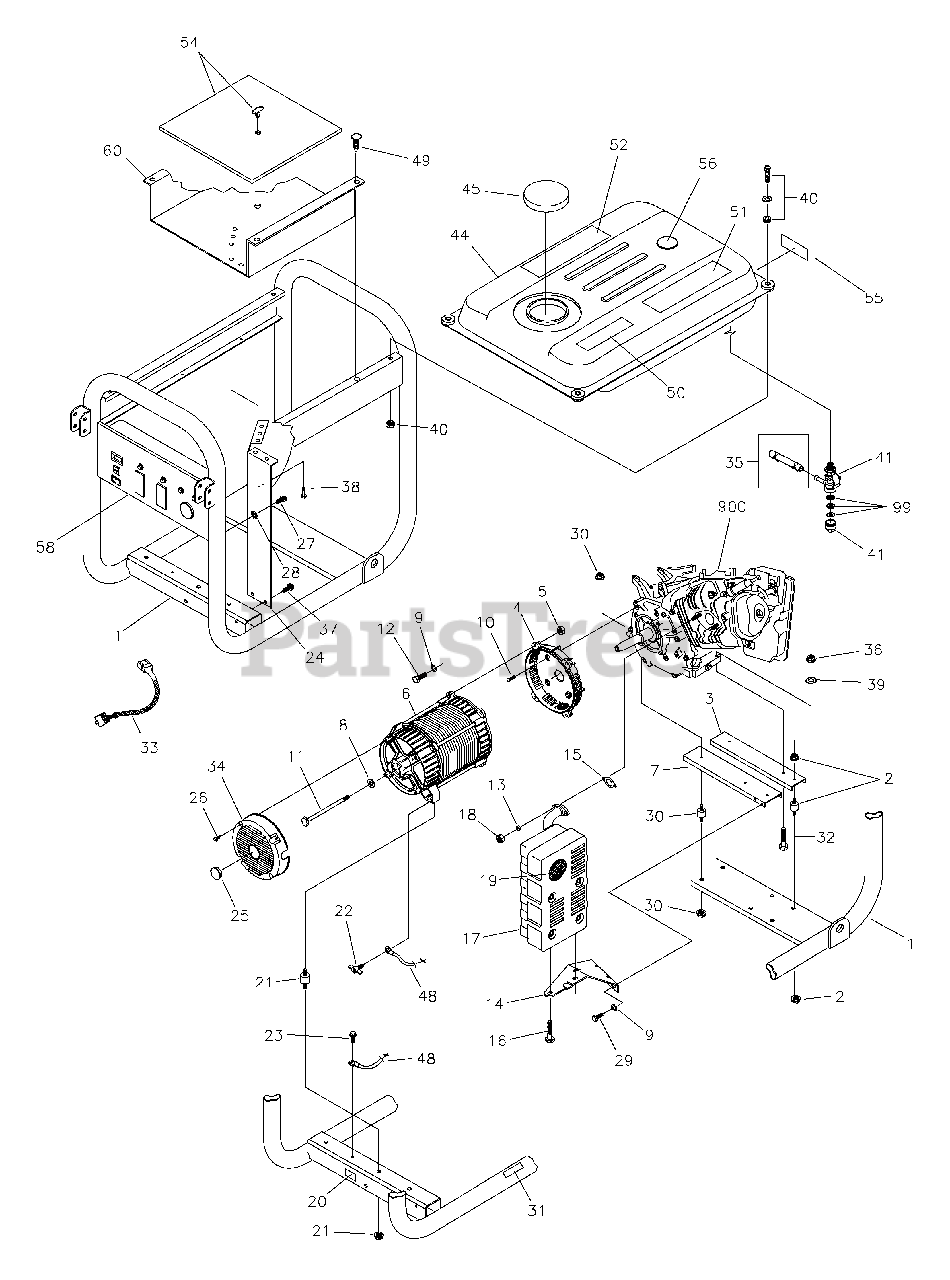

Main Unit Parts Diagram

  • Title

1

Husqvarna N192958GS

KIT, Cradle

$

$

Currently unavailable

2

Husqvarna 194218GS

KIT,Vibration Mount

$

$

Currently unavailable

3

Husqvarna N92531GS

SUPPORT, Engine

$

$

Currently unavailable

4

Husqvarna 190220GS

HOUSING, Engine Adapter

$

$

Currently unavailable

5

NUT, Hex, M8 - 1.25

Note: (Purchase Locally)

$

$

Not available

6

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

7

Husqvarna N92731GS

SUPPORT, Eng/Muffler

$

$

Currently unavailable

8

Husqvarna 96796GS

WASHER, M8 Flat

$

$

Currently unavailable

9

WASHER, 5/16-M8, Lock

Note: (Purchase Locally)

$

$

Not available

10

Husqvarna 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$

$

Currently unavailable

11

Husqvarna 187365JGS

HHCS, 5/16-24 x 7.75

$

$

Currently unavailable

12

HHCS, M8 - 1.25 x 25

Note: (Purchase Locally)

$

$

Not available

13

Husqvarna 31579GS

SPACER, 3/8 x 3/4 x 3/8

$

$

Currently unavailable

14

Husqvarna 193048GS

BRACKET, Muffler

$

$

Currently unavailable

15

NSP

GASKET, Muffler

$

$

Not available

16

HHCS, M6 - 1.0 x 12

Note: (Purchase Locally)

$

$

Not available

17

Husqvarna 192569GS

MUFFLER

$

$

Currently unavailable

18

Husqvarna 67989GS

NUT, Flange Serrated

$

$

Currently unavailable

19

Husqvarna 83083GS

SCREEN, Spark Arrest

$

$

Currently unavailable

20

Husqvarna B4986GS

DECAL, Ground

$

$

Currently unavailable

21

Husqvarna 194153GS

KIT,Vibration Mount

$

$

Currently unavailable

22

Husqvarna 86494GS

SCREW,Wing, M6 - 1.0 x 16

$

$

Currently unavailable

23

Husqvarna 86292GS

SCREW, 10 - 16 x 3/4, Self Drill

$

$

Currently unavailable

24

Husqvarna J194390GS

SHIELD, Heat

$

$

Currently unavailable

25

Husqvarna 191190GS

CAP

$

$

Currently unavailable

26

Husqvarna 74908GS

TAPTITE, M5-0.8 x 10

$

$

Currently unavailable

27

Husqvarna B2153GS

SCREW, 12-14 x 7/8, Self Drill

$

$

Currently unavailable

28

WASHER, Shakeproof Ext. #10

Note: (Purchase Locally)

$

$

Not available

29

HHCS, 5/16-18 x 3/4

Note: (Purchase Locally)

$

$

Not available

30

Husqvarna 194219GS

KIT,Vibration Mount

$

$

Currently unavailable

31

Husqvarna 196830GS

DECAL, Hot Muffler

$

$

Currently unavailable

32

HHCS, 5/16-18 x 1 3/4

Note: (Purchase Locally)

$

$

Not available

33

Husqvarna 193157GS

HARNESS,Wire, Power

$

$

Currently unavailable

34

Husqvarna 195422GS

COVER, Bearing Carrier w/ Cap

$

$

Currently unavailable

35

Husqvarna 791745

KIT, Fuel Line (cut to fit)

$

$

Currently unavailable

36

NUT, 5/16-18, Flange Serrated

Note: (Purchase Locally)

$

$

Not available

37

Husqvarna 192376GS

SCREW, 12-24 x 1/2 Thd Forming

$

$

Currently unavailable

38

Husqvarna 56893GS

SCREW, 10-24 x 1/2 Crimptite

$

$

Currently unavailable

39

WASHER, 0.34 x 1 x 10GA

Note: (Purchase Locally)

$

$

Not available

40

Husqvarna 200378GS

KIT, Fuel Tank Hardware

$

$

Currently unavailable

41

Husqvarna 189133GS

VALVE, Fuel

$

$

Currently unavailable

44

Husqvarna 200377GS

ASSY,Tank, Fuel

Note: (Includes Items 41,50, 51 & 52)

$

$

Currently unavailable

45

Husqvarna 189135GS

CAP, Fuel

$

$

Currently unavailable

48

Husqvarna 195373GS

WIRE, Ground

$

$

Currently unavailable

49

Husqvarna B1797GS

CLIP,Tree

$

$

Currently unavailable

50

Husqvarna 188333GS

DECAL, Instruction, Fuel Level

$

$

Currently unavailable

51

Husqvarna 194799GS

DECAL, Danger

$

$

Currently unavailable

52

Husqvarna 189235GS

DECAL, Start Instructions

$

$

Currently unavailable

54

Husqvarna 194448GS

KIT, Insulation with Clip

$

$

Currently unavailable

55

Husqvarna 197798GS

DECAL, Fuel Shut-off

$

$

Currently unavailable

56

Husqvarna 192724GS

GUAGE, Fuel

$

$

Currently unavailable

58

Husqvarna 193049GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Currently unavailable

60

Husqvarna J194389GS

SHIELD, Heat

$

$

Currently unavailable

99

Husqvarna 189759GS

KIT, Fuel Valve Repair

$

$

Currently unavailable

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Husqvarna 43438GS

PLUG, 250V 30A, 4 Prong

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 100005

OIL, Bottle

Note: (2 Bottles are required); Not Illustrated

$

$

Currently unavailable

Husqvarna 65787GS

CABLE, Battery Charge

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna B1464GS

MANUAL, Engine

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 200053GS

MANUAL, Operator's

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 199383GS

DECAL, Family, CA EVP

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 195077GS

KIT, Decals, Srv

Note: Not Illustrated

$

$

Currently unavailable

Husqvarna 100031

STABILIZER, Fuel

Note: Optional Accessories

$

$

Currently unavailable
