13AP61RH848 (LX 468) - Toro Lawn Tractor (2009) FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY Parts Diagram

Lawn Tractor

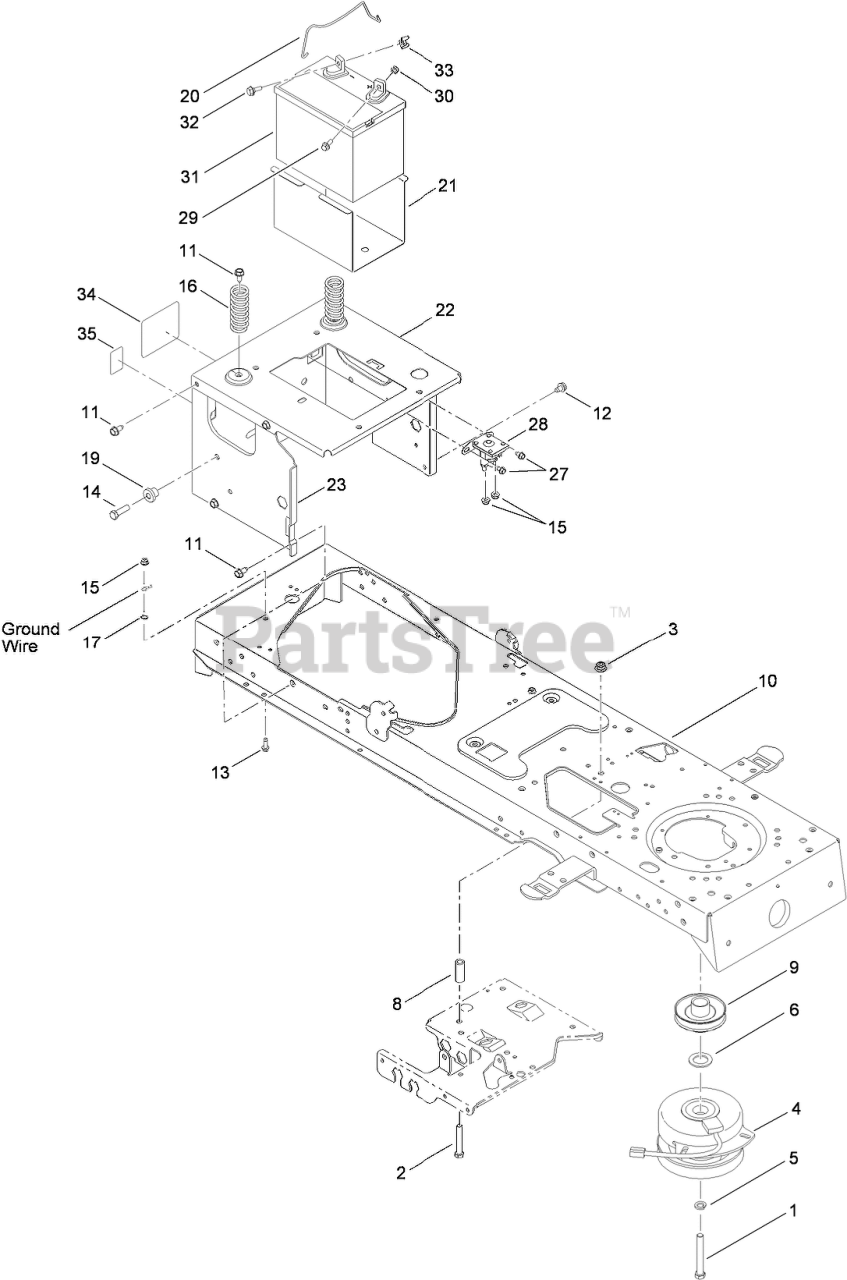

FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0561

SCREW-HH

$

$

Not available

2

Toro 112-6009

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

3

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 20+

0

4

Toro 112-6044

CLUTCH-ELECTRIC

$1251.99

$

Usually ships in 3-6 days

0

5

Toro 112-0428

WASHER-LOCK

$

$

Not available

6

Toro 112-0420

WASHER-FLAT

$6.99

$

In Stock, only 3 left!

0

8

Toro 112-0433

SPACER

$9.49

$

Usually ships in 3-6 days

0

9

Toro 112-6045

PULLEY-ENGINE

$106.99

$

Usually ships in 3-6 days

0

10

Toro 112-5974

LOWER FRAME ASM

$

$

Not available

11

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

12

Toro 112-0678

ROD-SUPPORT

$

$

Not available

13

Toro 112-0587

SCREW-TAP

$6.99

$

In Stock, Qty 10

0

14

Toro 112-0557

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

15

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 2 left!

0

16

Toro 112-6208

SPRING-COMPRESSION

$26.99

$

Usually ships in 3-6 days

0

17

Toro 112-0703

WASHER-LOCK, EXTERNAL

$

$

Not available

19

Toro 112-0661

SPACER-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

20

Toro 112-0581

ROD-HOLDDOWN, BATTERY

$9.49

$

In Stock, only 2 left!

0

21

Toro 112-0570

TRAY-BATTERY

$

$

Not available

22

Toro 112-6209

BRACKET-FRAME, SEAT

$122.99

$

Usually ships in 3-6 days

0

23

Toro 112-6254

FRAME-UPPER

$

$

Currently unavailable

27

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

28

Toro 112-6073

SOLENOID-12V, 2 POST 2 Tab

$63.99

$

In Stock, only 3 left!

0

29

Toro 112-1070

BOLT-CARRIAGE

$5.49

$

Usually ships in 3-6 days

0

30

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

31

Toro 112-0425

BATTERY-245, CCA (DRY FLAT TOP)

$143.99

$

Usually ships in 3-6 days

0

32

Toro 112-6182

BOLT-SHOULDER

$

$

Not available

33

Toro 112-3694

NUT-WING, PLASTIC

$6.99

$

In Stock, only 3 left!

0

34

Toro 112-1284

DECAL-TORO

$17.99

$

Usually ships in 3-6 days

0

35

Toro 112-6289

DECAL-HYDRO RELEASE

$

$

Not available
