13AP91RT848 (LX 468) - Toro Lawn Tractor (2010) FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY Parts Diagram

Lawn Tractor

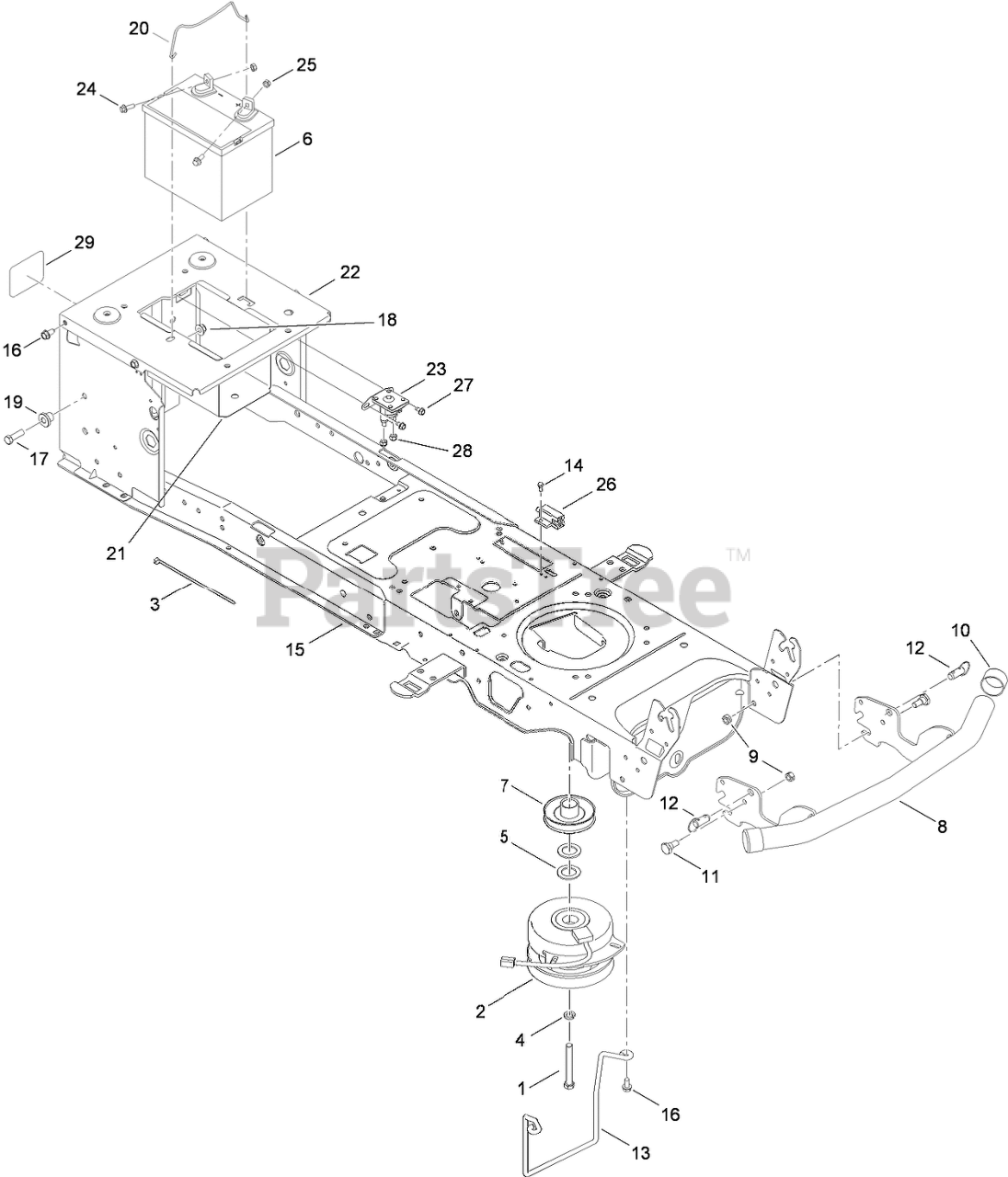

FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0561

SCREW-HH

$

$

Not available

2

Toro 119-9057

CLUTCH-PTO, ELECTRIC

$1049.99

$

Usually ships in 3-6 days

0

3

Toro 112-0527

TIE-CABLE

$6.99

$

Usually ships in 3-6 days

0

4

Toro 112-0428

WASHER-LOCK

$

$

Not available

5

Toro 112-0420

WASHER-FLAT

$6.99

$

In Stock, only 3 left!

0

6

Toro 112-0425

BATTERY-245, CCA (DRY FLAT TOP)

$143.99

$

Usually ships in 3-6 days

0

7

Toro 112-6045

PULLEY-ENGINE

$106.99

$

Usually ships in 3-6 days

0

8

Toro 119-9071

BUMPER-UNIVERSAL

$112.99

$

Usually ships in 3-6 days

0

9

Toro 112-0909

NUT-LOCK

$

$

Not available

10

Toro 112-5968

CAP-HUB

$8.99

$

Usually ships in 3-6 days

0

11

Toro 112-0565

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

12

Toro 119-3954

PIN-RELEASE, QUICK

$39.99

$

Usually ships in 3-6 days

0

13

Toro 119-3995

ROD-KEEPER

$60.99

$

Usually ships in 3-6 days

0

14

Toro 112-6206

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

15

Toro 119-3993

LOWER FRAME ASM

$

$

Currently unavailable

16

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

17

Toro 112-0557

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

18

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 20+

0

19

Toro 112-0661

SPACER-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

20

Toro 112-0581

ROD-HOLDDOWN, BATTERY

$9.49

$

In Stock, only 2 left!

0

21

Toro 112-0570

TRAY-BATTERY

$

$

Not available

22

Toro 112-6209

BRACKET-FRAME, SEAT

$122.99

$

Usually ships in 3-6 days

0

23

Toro 112-6073

SOLENOID-12V, 2 POST 2 Tab

$63.99

$

In Stock, only 3 left!

0

24

Toro 119-3994

BOLT

$

$

Not available

25

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

26

Toro 112-6210

SWITCH-INTERLOCK, NO/NC

$31.99

$

Usually ships in 3-6 days

0

27

Toro 112-6022

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

28

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 2 left!

0

29

Toro 119-8483

DECAL-RELEASE

$

$

Not available

99

Toro 119-9058

HARNESS-WIRING

Note: Not illustrated

$420.99

$

Usually ships in 3-6 days
