13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

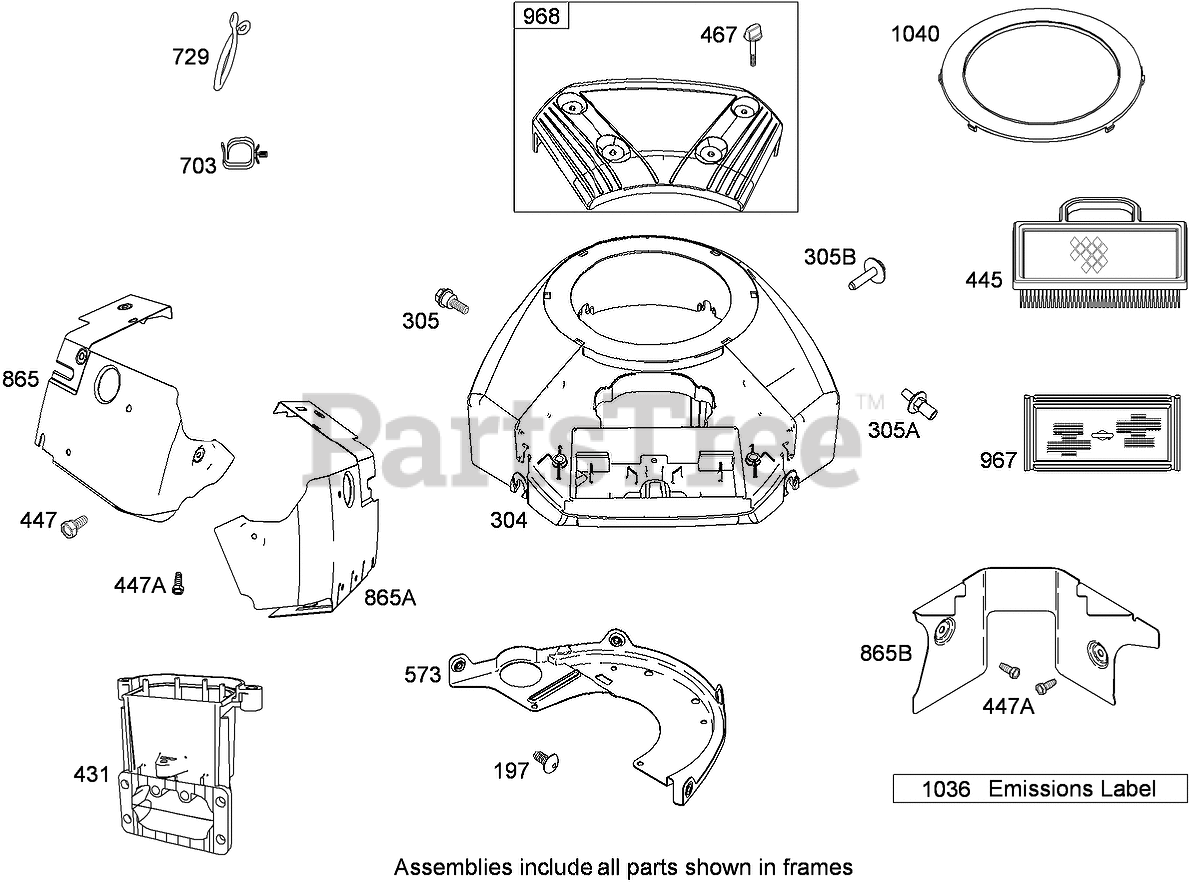

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title

197

Briggs & Stratton 697820

Screw (Backplate)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

304

Briggs & Stratton 791243

Housing-Blower
(Superseded to 799954)

Note: Obtain parts from www.briggsandstratton.com

$209.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691005

Screw (Blower Housing)
(Superseded to 594618)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

305A

Briggs & Stratton 698336

Screw (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

305B

Briggs & Stratton 790690

Screw (Blower Housing) (Blower Housing to Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 790816

Elbow-Intake
(Superseded to 798859)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

445

Toro 499486s

Filter-Cartridge, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

447

Briggs & Stratton 691003

Screw (Air Guide Cover) (Short)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 2 left!

0

447A

Briggs & Stratton 691108

Screw (Air Guide Cover) (Long)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

573

Briggs & Stratton 790444

Plate-Back
(Superseded to 594902)

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 691008

Knob-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 5

0

703

Briggs & Stratton 691010

Clip

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 694123

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 691012

Cover-Guide, Air (Cylinder No.1)
(Superseded to 796852)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

Usually ships in 2-12 days

0

865A

Briggs & Stratton 793205

Cover-Guide, Air (Cylinder No.2)
(Superseded to 591666)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

Usually ships in 2-12 days

0

865B

Briggs & Stratton 691015

Cover-Guide, Air (Valley)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

Usually ships in 2-12 days

0

967

Toro 273638s

Filter-Cleaner, Pre

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

968

Briggs & Stratton 791242

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1036

Label-Emissions

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1036

Label-Emissions

Note: Not serviced separately

$

$

Not available

1040

Briggs & Stratton 791237

Plate-Trim

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

In Stock, only 1 left!

0
