13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) CRANKSHAFT, PISTON, RING AND CONNECTING ROD ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

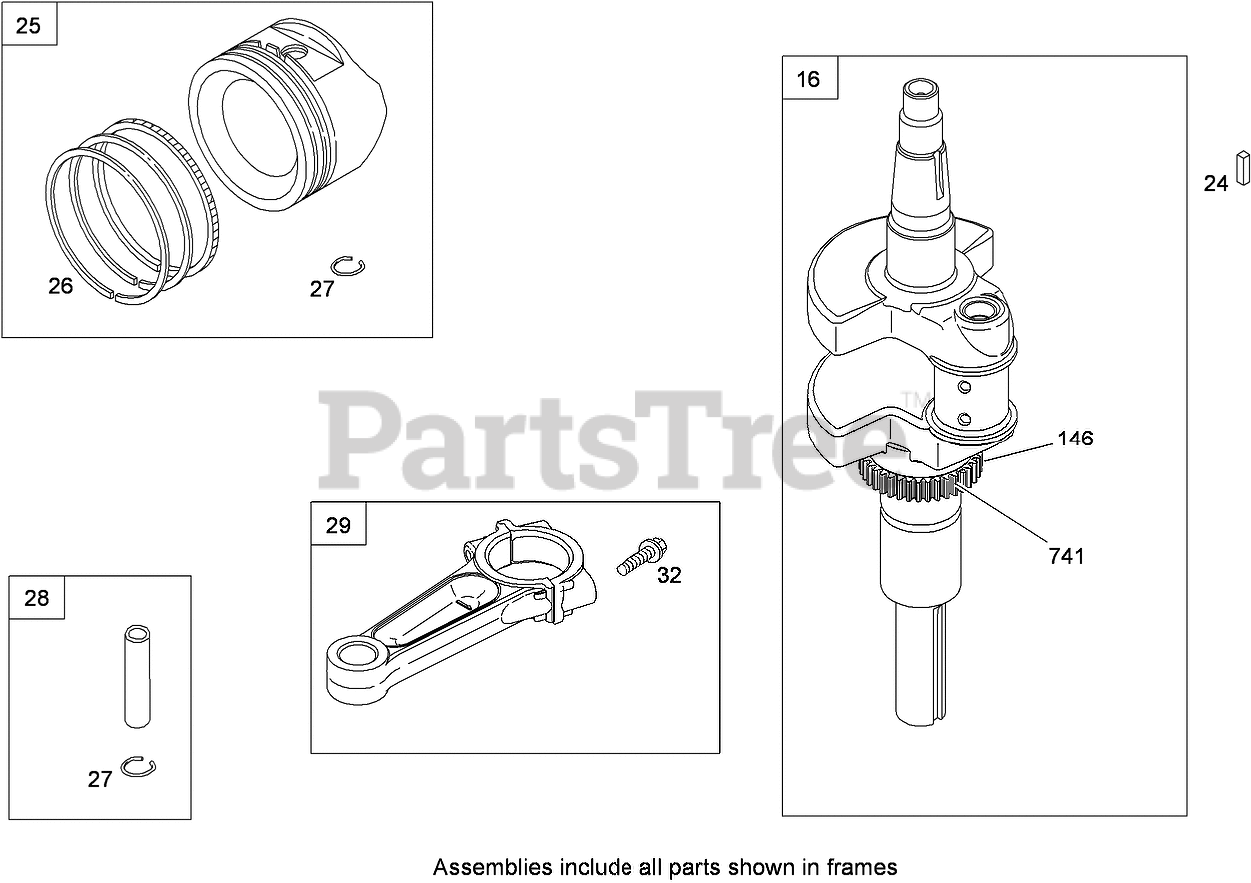

CRANKSHAFT, PISTON, RING AND CONNECTING ROD ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

Note: Obtain parts from www.briggsandstratton.com

$385.99

$

Usually ships in 2-12 days

0

24

Toro 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 793647

Piston Asm (Standard)

Note: Obtain parts from www.briggsandstratton.com

$137.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 793648

Piston Asm (.020 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$159.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791787

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 791792

Ring Set (.020 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 690229

Pin-Piston (STD)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 690976

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

741

Briggs & Stratton 690980

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0
