13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

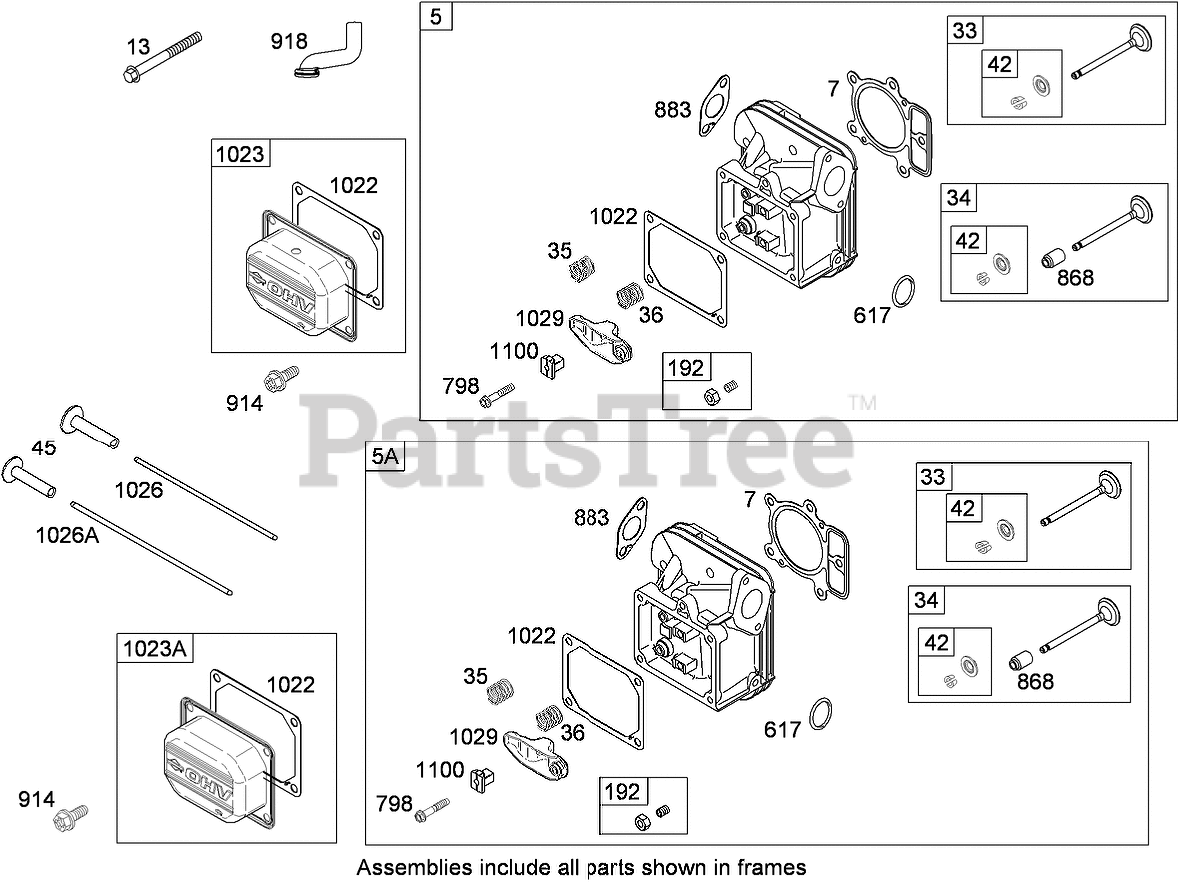

CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title

5

Briggs & Stratton 792299

Head-Cylinder
(Superseded to 796231)

Note: Obtain parts from www.briggsandstratton.com

$235.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 792300

Head-Cylinder
(Superseded to 796232)

Note: Obtain parts from www.briggsandstratton.com

$202.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$24.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$24.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 791130

Screw (Cylinder Head)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

33

Briggs & Stratton 499596

Valve-Exhaust
(Superseded to 697576)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

In Stock, only 4 left!

0

34

Briggs & Stratton 792200

Valve-Intake

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

In Stock, Qty 9

0

35

Briggs & Stratton 694865

Spring-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 694865

Spring-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 499586

Keeper-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 690083

Adjuster-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 2 left!

0

617

Briggs & Stratton 697891

Seal-O Ring (Intake Manifold) (Red)
(Superseded to 691917)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

798

Briggs & Stratton 697890

Screw (Rocker Arm)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 1 left!

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 3 left!

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Gasket Set (Ref. No. 1095)

$10.99

$

In Stock, only 3 left!

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Engine Gasket Set (Ref. No. 358)

$10.99

$

In Stock, only 3 left!

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$4.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691127

Screw (Rocker Cover)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 9

0

918

Briggs & Stratton 793147

Hose-Vacuum

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 690971

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 499600

Cover-Arm, Rocker (Cylinder No.2)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 2 left!

0

1023A

Briggs & Stratton 793146

Cover-Arm, Rocker (Cylinder No.1)
(Superseded to 84003848)

Note: Obtain parts from www.briggsandstratton.com

$22.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 690981

Rod-Push (Steel)
(Superseded to 597785)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

Rod-Push (Aluminum)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, only 1 left!

0

1100

Briggs & Stratton 791959

Pivot-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0
