13AX60RH544 (LX 460) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) STARTING SYSTEM ASSEMBLY Parts Diagram

Lawn Tractor

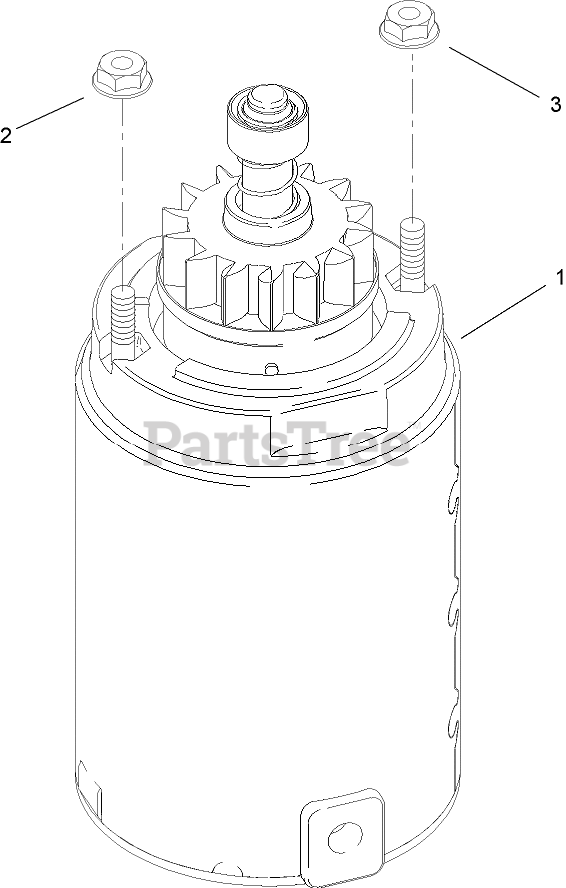

STARTING SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Kohler 20 098 01-S

Starter ASM (Inertia Drive)
(Superseded to 20 098 06-S)

Note: Obtain parts from www.kohlerplus.com

$124.99

$

In Stock, Qty 20+

0

2

Kohler 25 100 31-S

Nut-Flange, Hex Serrated (10-24)
(Superseded to 25 100 56-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

3

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0
