13AX61RG848 (LX 427) - Toro Lawn Tractor (SN: 1A019H10001 - 1A309H19999) (2009 & Before) FRAME, BATTERY AND MANUAL PTO ASSEMBLY Parts Diagram

Lawn Tractor

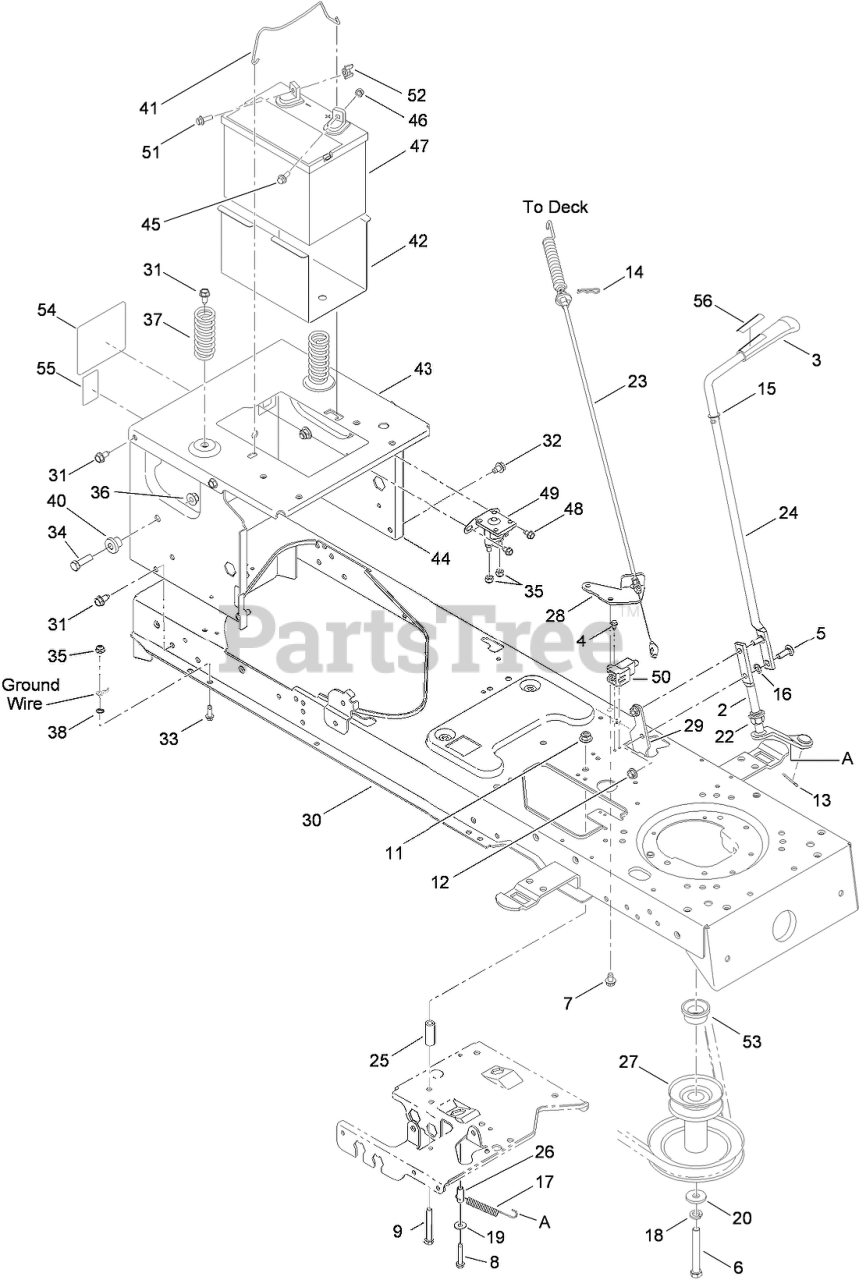

FRAME, BATTERY AND MANUAL PTO ASSEMBLY Parts Diagram

  • Title

2

Toro 112-6007

LEVER-ENGAGE, PTO

$56.99

$

Usually ships in 3-6 days

0

3

Toro 112-6011

KNOB-PTO

$18.99

$

Usually ships in 3-6 days

0

4

Toro 112-6206

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

5

Toro 112-0598

BOLT-CARR

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-6008

SCREW-HH

$

$

Not available

7

Toro 112-0676

SCREW-TAP

$

$

Not available

8

Toro 112-0843

SCREW-HWH

$6.99

$

Usually ships in 3-6 days

0

9

Toro 112-6009

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

11

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 19

0

12

Toro 112-0511

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 8

0

13

Toro 112-6010

PIN-COTTER

$8.49

$

Usually ships in 3-6 days

0

14

Toro 112-0398

PIN-CLICK

$24.99

$

In Stock, only 3 left!

0

15

Toro 112-0498

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

16

Toro 112-0645

NUT-PUSH

$6.99

$

Usually ships in 3-6 days

0

17

Toro 112-0567

SPRING-EXTENSION

$15.99

$

In Stock, only 3 left!

0

18

Toro 112-0428

WASHER-LOCK

$

$

Not available

19

Toro 112-5989

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

20

Toro 112-0380

WASHER-FLAT

$15.99

$

Usually ships in 3-6 days

0

22

Toro 112-0384

BEARING-FLANGE, HEX (SPLIT)

$5.49

$

Usually ships in 3-6 days

0

23

Toro 112-6137

CABLE-ENGAGE, DECK

$92.99

$

In Stock, only 1 left!

0

24

Toro 112-0393

HANDLE-ENGAGE, DECK

$48.99

$

Usually ships in 3-6 days

0

25

Toro 112-0433

SPACER

$9.49

$

Usually ships in 3-6 days

0

26

Toro 112-0644

SPACER

$

$

Not available

27

Toro 112-6207

PULLEY-ENGINE

$190.99

$

Usually ships in 3-6 days

0

28

Toro 112-6105

BRACKET-MOUNT, CABLE

$

$

Not available

29

Toro 112-0516

BRACKET-STOP

$52.99

$

Usually ships in 3-6 days

0

30

Toro 112-5974

LOWER FRAME ASM

$

$

Not available

31

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

32

Toro 112-0676

SCREW-TAP

$

$

Not available

33

Toro 112-0587

SCREW-TAP

$6.99

$

In Stock, Qty 10

0

34

Toro 112-0557

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

35

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 2 left!

0

36

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 19

0

37

Toro 112-6208

SPRING-COMPRESSION

$26.99

$

Usually ships in 3-6 days

0

38

Toro 112-0703

WASHER-LOCK, EXTERNAL

$

$

Not available

40

Toro 112-0661

SPACER-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

41

Toro 112-0581

ROD-HOLDDOWN, BATTERY

$9.49

$

In Stock, only 2 left!

0

42

Toro 112-0570

TRAY-BATTERY

$

$

Not available

43

Toro 112-6209

BRACKET-FRAME, SEAT

$122.99

$

Usually ships in 3-6 days

0

44

Toro 112-6254

FRAME-UPPER

$

$

Currently unavailable

45

Toro 112-1070

BOLT-CARRIAGE

$5.49

$

Usually ships in 3-6 days

0

46

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

47

Toro 112-0425

BATTERY-245, CCA (DRY FLAT TOP)

$143.99

$

Usually ships in 3-6 days

0

48

Toro 112-6108

SCREW-TAP

$6.49

$

Usually ships in 3-6 days

0

49

Toro 112-6073

SOLENOID-12V, 2 POST 2 Tab

$63.99

$

In Stock, only 3 left!

0

50

Toro 112-6210

SWITCH-INTERLOCK, NO/NC

$31.99

$

Usually ships in 3-6 days

0

51

Toro 112-6182

BOLT-SHOULDER

$

$

Not available

52

Toro 112-1121

NUT-WING

$5.99

$

Usually ships in 3-6 days

0

53

Toro 112-6211

SPACER

$

$

Not available

54

Toro 112-1284

DECAL-TORO

$17.99

$

Usually ships in 3-6 days

0

55

Toro 112-6289

DECAL-HYDRO RELEASE

$

$

Not available

56

Toro 112-6286

DECAL-PTO

$

$

Not available
