13AX61RG848 (LX 427) - Toro Lawn Tractor (SN: 1A019H10001 - 1A309H19999) (2009 & Before) FUEL TANK, HOOD AND DASH ASSEMBLY Parts Diagram

Lawn Tractor

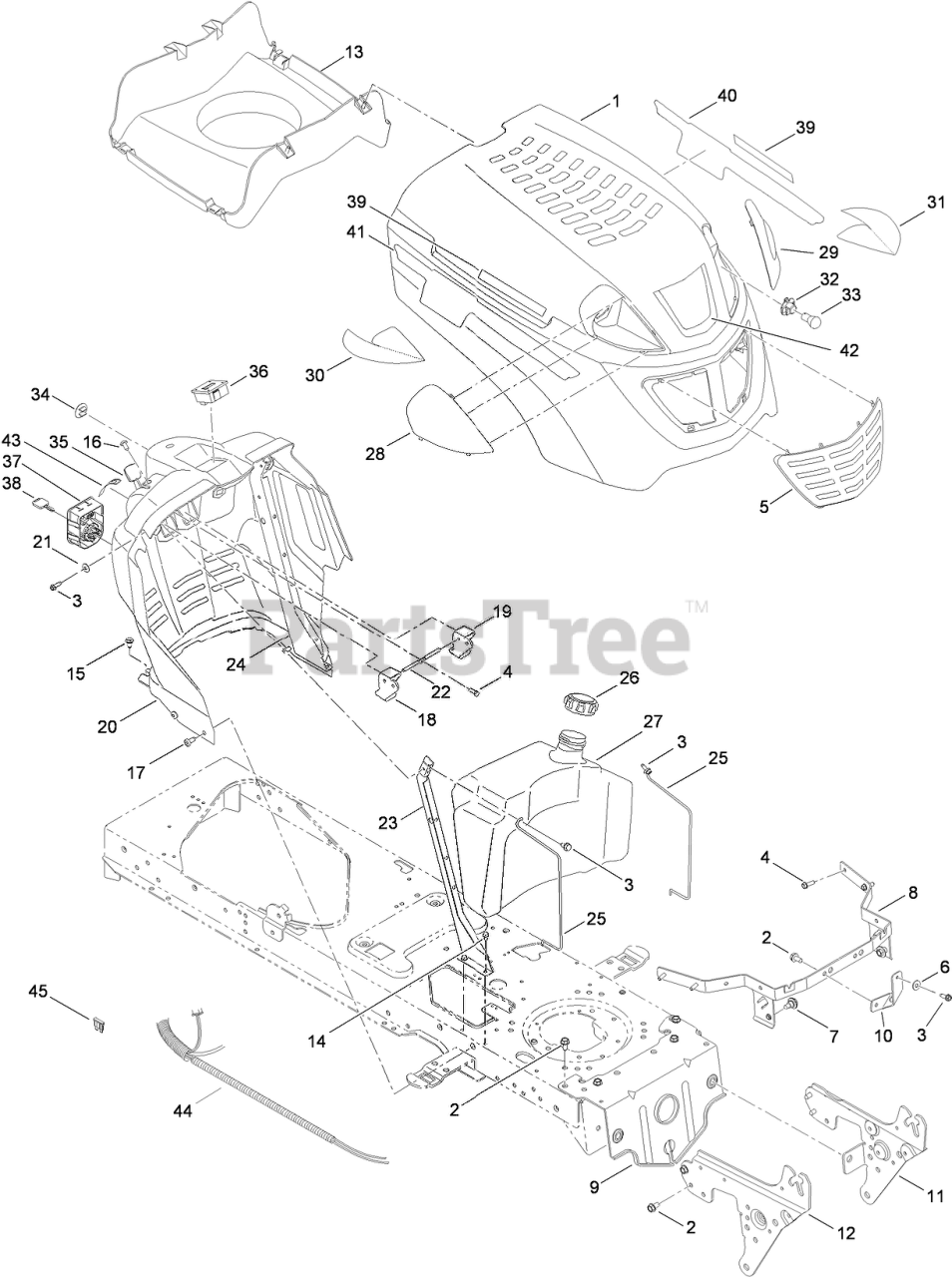

FUEL TANK, HOOD AND DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0444

HOOD

$494.99

$

Usually ships in 3-6 days

0

2

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

3

Toro 112-0587

SCREW-TAP

$6.99

$

In Stock, Qty 10

0

4

Toro 112-0509

SCREW-TAP

$9.99

$

In Stock, only 3 left!

0

5

Toro 112-0381

GRILL

$

$

Not available

6

Toro 112-5989

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-6128

BOLT-SHOULDER, TAP

$5.99

$

In Stock, Qty 7

0

8

Toro 112-5985

BRACKET-PIVOT

$72.99

$

Usually ships in 3-6 days

0

9

Toro 112-6127

BRACKET-PIVOT

$

$

Not available

10

Toro 112-5986

BRACKET-SUPPORT, HOOD

$

$

Not available

11

Toro 112-6218

BRACKET-SUPPORT, PIVOT (LH)

$

$

Not available

12

Toro 112-6219

BRACKET-SUPPORT, PIVOT (RH)

$

$

Not available

13

Toro 112-6124

PLENIUM-HOOD

$99.99

$

Usually ships in 3-6 days

0

14

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

15

Toro 112-0676

SCREW-TAP

$

$

Not available

16

Toro 112-0550

SCREW-TAP

$8.99

$

Usually ships in 3-6 days

0

17

Toro 112-0563

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

18

Toro 112-0526

LEVER-CRUISE

$18.99

$

Usually ships in 3-6 days

0

19

Toro 112-0580

LEVER-BRAKE

$

$

Not available

20

Toro 112-6123

DASH-MANUAL, PTO

$149.99

$

Usually ships in 3-6 days

0

21

Toro 112-0485

WASHER-SPRING

$6.99

$

In Stock, only 1 left!

0

22

Toro 112-0604

ROD-LEVER, BENT

$23.99

$

Usually ships in 3-6 days

0

23

Toro 112-6262

SUPPORT-DASH, PLATE (RH)

$

$

Not available

24

Toro 112-6263

SUPPORT-DASH, PLATE (LH)

$

$

Not available

25

Toro 112-0678

ROD-SUPPORT

$

$

Not available

26

Toro 112-6264

CAP-FUEL

$46.99

$

Usually ships in 3-6 days

0

27

Toro 112-6119

TANK-FUEL, 3 GAL

$

$

Not available

28

Toro 112-0447

LENS-RH

$15.99

$

In Stock, only 3 left!

0

29

Toro 112-0446

LENS-LH

$15.99

$

Usually ships in 3-6 days

0

30

Toro 112-5810

REFLECTOR-RH

$13.99

$

In Stock, only 1 left!

0

31

Toro 112-5811

REFLECTOR-LH

$

$

Not available

32

Toro 112-0408

SOCKET-HEADLIGHT

$16.99

$

In Stock, only 1 left!

0

33

Toro 112-0402

LAMP-12V, MINIATURE

$11.99

$

In Stock, only 4 left!

0

34

Toro 112-0535

PLUG-CHOKE

$5.99

$

Usually ships in 3-6 days

0

35

Toro 112-6265

CABLE-THROTTLE

$81.99

$

Usually ships in 3-6 days

0

36

Toro 112-6117

METER-HOUR

$

$

Not available

37

Toro 112-6116

MODULE-SWITCH, IGNITION

$144.99

$

In Stock, only 2 left!

0

38

Toro 112-6115

KEY-IGNITION

$10.99

$

In Stock, only 1 left!

0

39

Toro 112-6288

DECAL

$10.99

$

Usually ships in 3-6 days

0

40

Toro 112-5952

DECAL-HOOD, LEFT SIDE

$39.99

$

Usually ships in 3-6 days

0

41

Toro 112-5953

DECAL-HOOD, RIGHT SIDE

$

$

Not available

42

Toro 112-3716

DECAL-HOOD

$

$

Not available

43

Toro 112-6283

DECAL-THROTTLE

$12.99

$

Usually ships in 3-6 days

0

44

Toro 112-6295

HARNESS-WIRING

$

$

Not available

45

Toro 112-5943

FUSE-20 AMP

$7.49

$

Usually ships in 3-6 days

0
