13AX90RS848 (LX 423) - Toro Lawn Tractor (2012) FRAME, BATTERY AND PTO ASSEMBLY Parts Diagram

Lawn Tractor

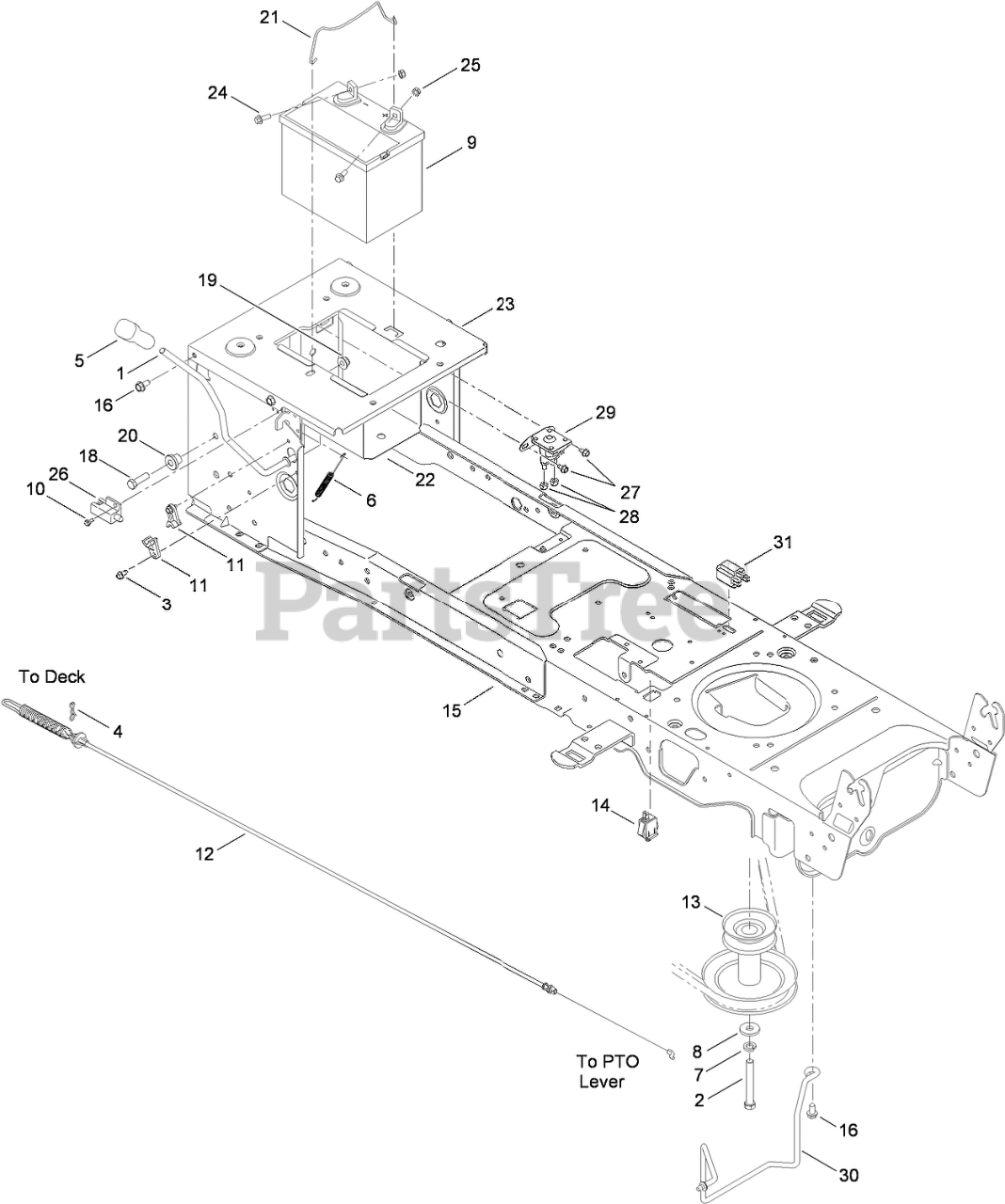

FRAME, BATTERY AND PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3986

PTO HANDLE ASM

$38.99

$

Usually ships in 3-6 days

0

2

Toro 119-3987

BOLT

$12.99

$

Usually ships in 3-6 days

0

3

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

4

Toro 112-0990

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

5

Toro 119-3988

GRIP-HANDLE

$28.99

$

Usually ships in 3-6 days

0

6

Toro 119-3989

SPRING-EXTENSION

$17.99

$

Usually ships in 3-6 days

0

7

Toro 112-0428

WASHER-LOCK

$

$

Not available

8

Toro 112-0380

WASHER-FLAT

$15.99

$

Usually ships in 3-6 days

0

9

Toro 112-0425

BATTERY-245, CCA (DRY FLAT TOP)

$143.99

$

Usually ships in 3-6 days

0

10

Toro 112-6206

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

11

Toro 119-3990

BEARING-PTO

$8.99

$

Usually ships in 3-6 days

0

12

Toro 119-3991

CABLE-ENGAGEMENT, DECK

$99.99

$

In Stock, only 3 left!

0

13

Toro 112-0333

PULLEY-ENGINE

$151.99

$

In Stock, only 1 left!

0

14

Toro 119-3992

SWITCH-PLUNGER, SNAP MOUNT

$28.99

$

Usually ships in 3-6 days

0

15

Toro 119-3993

LOWER FRAME ASM

$

$

Currently unavailable

16

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

18

Toro 112-0557

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

19

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 20+

0

20

Toro 112-0661

SPACER-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

21

Toro 112-0581

ROD-HOLDDOWN, BATTERY

$9.49

$

In Stock, only 2 left!

0

22

Toro 112-0570

TRAY-BATTERY

$

$

Not available

23

Toro 112-6209

BRACKET-FRAME, SEAT

$122.99

$

Usually ships in 3-6 days

0

24

Toro 119-3994

BOLT

$

$

Not available

25

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

26

Toro 112-6210

SWITCH-INTERLOCK, NO/NC

$31.99

$

Usually ships in 3-6 days

0

27

Toro 112-6022

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

28

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 2 left!

0

29

Toro 112-6073

SOLENOID-12V, 2 POST 2 Tab

$63.99

$

In Stock, only 3 left!

0

30

Toro 119-3995

ROD-KEEPER

$60.99

$

Usually ships in 3-6 days

0

31

Toro 119-3996

SWITCH-3 POLE

$97.99

$

Usually ships in 3-6 days

0

99

Toro 119-3997

HARNESS-WIRING

Note: Not illustrated

$396.99

$

Usually ships in 3-6 days

0
