14AQ81RP744 (GT 2200) - Toro Garden Tractor (SN: 1A136H30000 & Above) (2006) CRANKCASE ASSEMBLY KOHLER SV730-0018 Parts Diagram

Garden Tractor

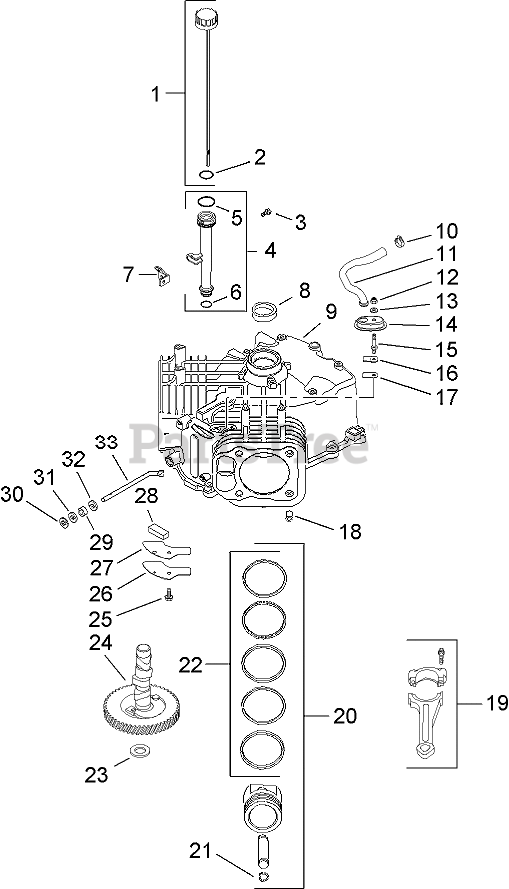

CRANKCASE ASSEMBLY KOHLER SV730-0018 Parts Diagram

  • Title

1

Kohler 32 038 01-S

Dipstick Kit (Includes2)
(Superseded to 32 755 32-S)

Note: Obtain parts from www.kohlerplus.com

$18.99

$

In Stock, only 1 left!

0

2

Kohler 12 153 03-S

O-Ring
(Superseded to 25 153 02-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 17

0

4

Kohler 12 123 04-S

Oil Fill Tube ASM (Includes5-6)
(Superseded to 25 123 07-S)

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 1 left!

0

5

Kohler 12 153 02-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

6

Kohler 12 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 20+

0

7

Kohler 24 126 19-S

BRACKET-TUBE, OIL FILL
(Superseded to 24 126 246-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

8

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 20+

0

9

Crankcase (USE: Short Block # 32 522 03)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Crankcase (USE: Short Block # 32 522 03)

Note: Not serviced separately

$

$

Not available

10

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 6

0

11

Kohler 32 326 04-S

Hose-Breather
(Superseded to 32 326 06-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 4 left!

0

12

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

13

Kohler 32 468 01-S

WASHER-SEALING

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

14

Kohler 32 081 02-S

BREATHER HOUSING KIT

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

15

Kohler 32 072 02-S

Stud-Breather Cover
(Superseded to 32 072 03-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

16

Kohler 24 018 04-S

RETAINER-REED, BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

17

Kohler 24 402 05-S

Reed-Breather
(Superseded to 24 402 07-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 6

0

18

Kohler 24 380 16-S

PIN-LOCATING

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

19

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, Qty 17

0

20

Kohler 32 874 06-S

Piston w/Ring Set (Standard) (Includes21-22)
(Superseded to 25 874 13-S)

Note: Obtain parts from www.kohlerplus.com

$269.99

$

In Stock, only 3 left!

0

21

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

22

Kohler 24 108 11-S

RING SET (STD AND .08)
(Superseded to 24 108 22-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

23

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

23

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

23

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

23

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

23

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

24

Kohler 32 012 01-S

CAMSHAFT KIT

Note: Obtain parts from www.kohlerplus.com

$135.99

$

Usually ships in 2-5 days

0

25

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

26

Kohler 32 096 04-S

BREATHER COVER KIT

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

27

Kohler 32 041 01-S

GASKET-COVER, BREATHER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

28

Kohler 32 050 01-S

FILTER-BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

29

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 19

0

30

Kohler 24 018 09-S

RETAINER-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

31

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

32

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

33

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

Usually ships in 2-5 days

0
