14AQ81RP748 (GT 2200) - Toro Garden Tractor (SN: 1B087H30130 & Above) (2007) DECK LIFT ARM ASSEMBLY Parts Diagram

Garden Tractor

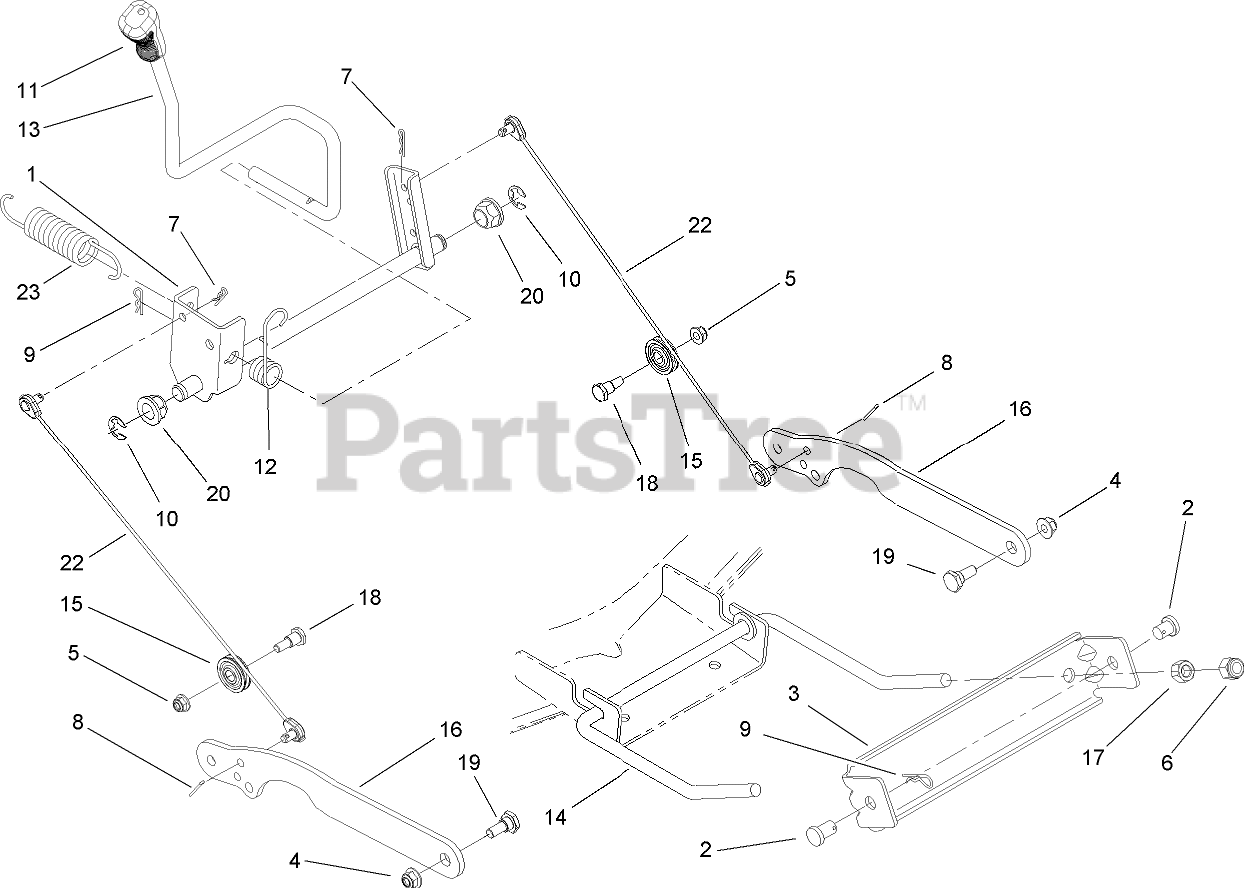

DECK LIFT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0686

LIFT SHAFT ASM

$

$

Not available

2

Toro 112-0376

PIN-BRACKET, LIFT

$26.99

$

Usually ships in 3-6 days

0

3

Toro 112-0707

BRACKET-STABILIZER

$

$

Not available

4

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 20+

0

5

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 5

0

6

Toro 112-0476

NUT-LOCK, HEX (NYLON)

$6.99

$

In Stock, only 2 left!

0

7

Toro 112-0459

PIN-COTTER

$

$

Not available

8

Toro 112-0568

PIN-COTTER

$7.49

$

In Stock, only 2 left!

0

9

Toro 112-0394

PIN-HAIR

$6.99

$

Usually ships in 3-6 days

0

10

Toro 112-0586

RING-E

$7.49

$

Usually ships in 3-6 days

0

11

Toro 112-0585

GRIP-HANDLE

$

$

Not available

12

Toro 112-0477

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

13

Toro 112-0674

HANDLE-LIFT

$

$

Not available

14

Toro 112-0497

ROD-FRONT, ADJUST

$73.99

$

Usually ships in 3-6 days

0

15

Toro 112-0502

PULLEY-ROLLER

$11.99

$

Usually ships in 3-6 days

0

16

Toro 112-6036

LINK-DECK, LIFT

$

$

Not available

17

Toro 112-0458

NUT-HEX

$

$

Not available

18

Toro 112-0443

BOLT-SHOULDER

$

$

Not available

19

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

20

Toro 112-0347

BEARING-FLANGE

$15.99

$

Usually ships in 3-6 days

0

22

Toro 112-0374

CABLE-LIFT

$37.99

$

In Stock, only 3 left!

0

23

Toro 112-0399

SPRING-LIFT, ASSIST

$14.99

$

Usually ships in 3-6 days

0
