14AQ81RP748 (GT 2200) - Toro Garden Tractor (SN: 1B087H30130 & Above) (2007) FENDER ASSEMBLY Parts Diagram

Garden Tractor

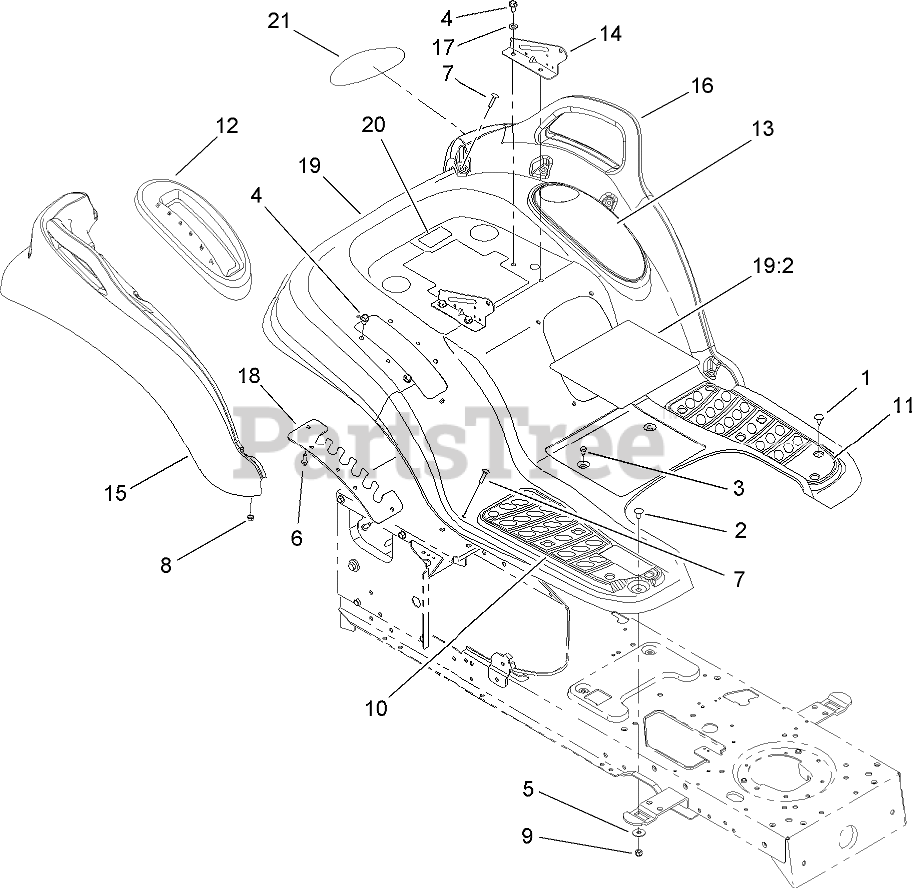

FENDER ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0549

CLIP-RATCHET, FASTENER

$6.99

$

Usually ships in 3-6 days

0

2

Toro 112-0426

BOLT-CARR

$

$

Not available

3

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

4

Toro 112-0556

SCREW-HWH

$6.99

$

Usually ships in 3-6 days

0

5

Toro 112-0582

WASHER-FLAT

$

$

Not available

6

Toro 112-0509

SCREW-TAP

$9.99

$

In Stock, only 3 left!

0

7

Toro 112-0907

SCREW-CARR

$6.99

$

Usually ships in 3-6 days

0

8

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

9

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 5

0

10

Toro 112-0540

PAD-FOOT, RH

$

$

Not available

11

Toro 112-0545

PAD-FOOT, LH

$

$

Not available

12

Toro 112-0869

COVER-LEVER, LIFT

$

$

Not available

13

Toro 112-0870

COVER (W/CUP HOLDER)

$

$

Not available

14

Toro 112-6046

BRACKET-MOUNT, SEAT

$28.99

$

Usually ships in 3-6 days

0

15

Toro 112-0871

FLARE-FENDER, RH

$121.99

$

Usually ships in 3-6 days

0

16

Toro 112-0872

FLARE-FENDER, LH

$121.99

$

Usually ships in 3-6 days

0

17

Toro 112-0517

WASHER-LOCK, EXTERNAL

$

$

Not available

18

Toro 112-0629

BRACKET-ADJUSTING, LIFT

$

$

Not available

19

Toro 112-5861

FENDER AND DECAL ASM

$

$

Not available

19:2

Toro 112-1261

DECAL-DANGER

$

$

Not available

20

Toro 112-1260

DECAL-SERVICE (TORO HOTLINE)

$5.49

$

Usually ships in 3-6 days

0

21

Toro 112-5873

REFLECTOR

$26.99

$

Usually ships in 3-6 days

0
