16202 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

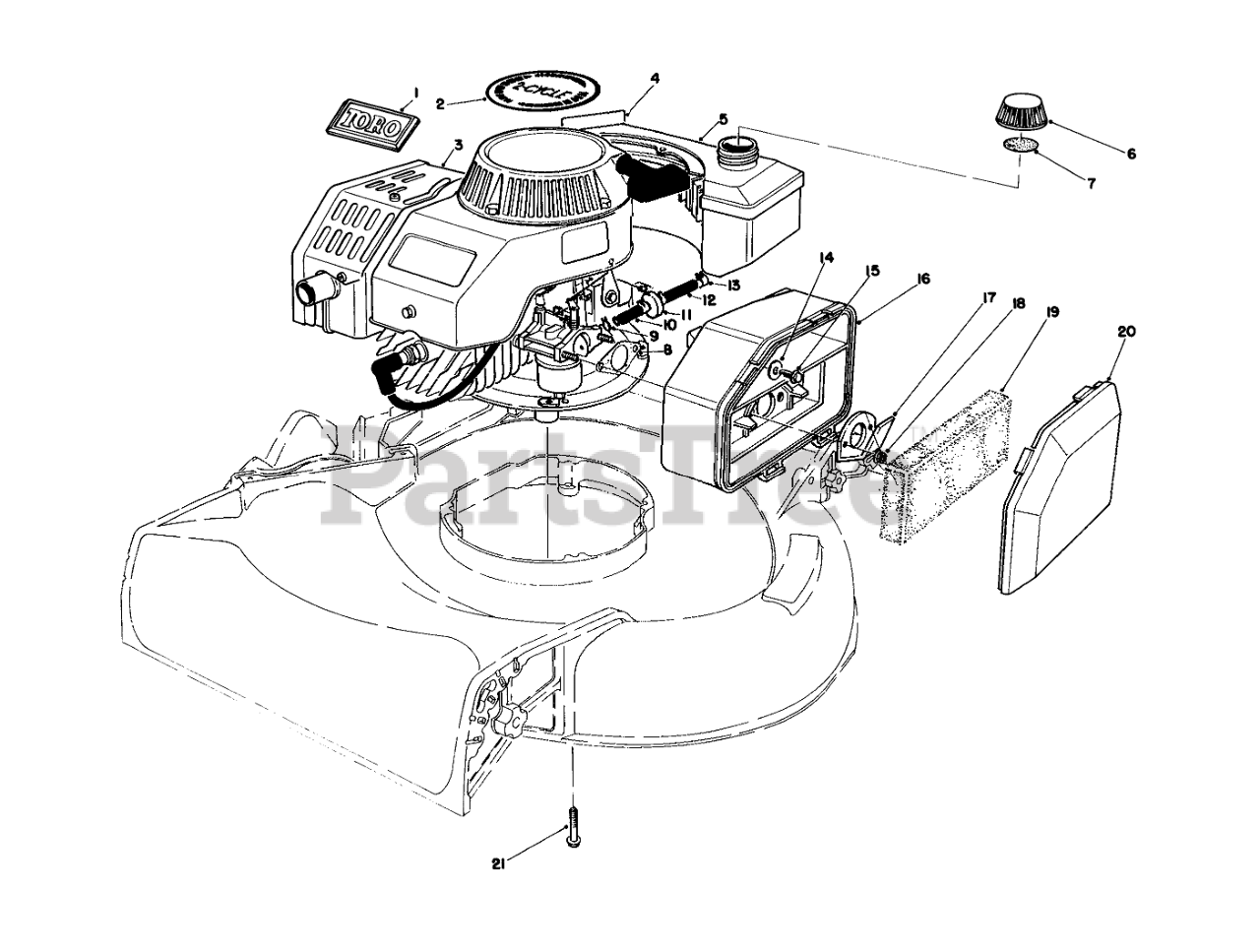

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 3 left!

0

2

Toro 57-3110

DECAL- 2 CYC RECOIL

$

$

Not available

3

Toro 59257

Engine
(Superseded to 12-8099)

$

$

Not available

4

Toro 40-2440

Decal-Maintenance

$

$

Not available

5

Toro 81-0161

Fuel Tank Assembly

$

$

Not available

6

Toro 42-0681

Gas Cap Assembly (Incl. Ref. #7)

$42.99

$

Usually ships in 3-6 days

0

7

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

8

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

9

Toro 2412-80

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

10

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

11

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

12

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, Qty 5

0

13

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 15

0

14

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

16

Toro 81-0110

AIR CLEANER

$

$

Not available

17

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

18

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

20

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

21

Toro 3234-20

FLG SCREW,3/8-16X2.000
(Superseded to 66-9302)

$4.99

$

Usually ships in 3-6 days

0
