16222 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1971) GEAR CASE ASSEMBLY MODEL NO. 16222 Parts Diagram

Walk-Behind Mower

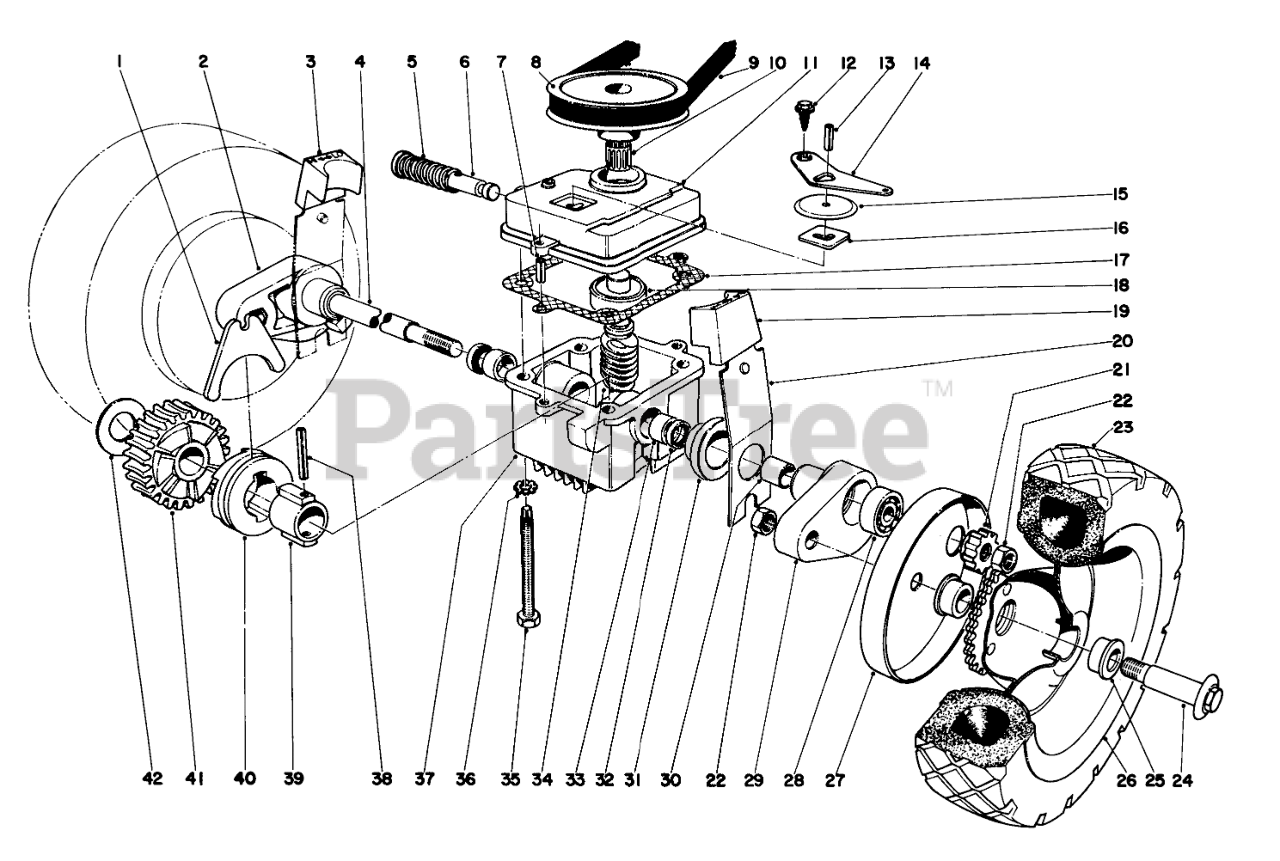

GEAR CASE ASSEMBLY MODEL NO. 16222 Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$17.99

$

Usually ships in 3-6 days

0

2

Toro 2-6359-4

Pivot Arm (Incl. Reference #30)

$

$

Currently unavailable

3

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 13

0

4

Toro 3-0720

DRIVE SHAFT

$

$

Not available

5

Toro 3-0731

SPRING

$9.99

$

Usually ships in 3-6 days

0

6

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$40.99

$

Usually ships in 3-6 days

0

7

Toro 32121-1

3/16 X 1/2 ROLL PIN

$3.99

$

In Stock, Qty 5

0

8

Toro 5-1615

PULLEY

$

$

Not available

9

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

10

Toro 3290-266

Tolerance Ring

$

$

Currently unavailable

11

Toro 5-3283

GEAR CASE COVER

$

$

Not available

12

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

13

Toro 32121-23

PIN-ROLL

$

$

Not available

14

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

15

Toro 3-2615

TRANS DUST COVER

$

$

Not available

16

Toro 3-0681

LATCH PLATE

$

$

Not available

17

Toro 3-0734

GASKET

$8.99

$

Usually ships in 3-6 days

0

18

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

19

Toro 6-6220

Arm Knob

$

$

Currently unavailable

20

Toro 3-2640-4

Spring Arm

$

$

Currently unavailable

21

Toro 3-0738

PINION GEAR

$45.99

$

Usually ships in 3-6 days

0

22

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

Toro 5-3543

TIRE

$

$

Not available

24

Toro 3-5117

Wheel Bolt
(Superseded to 26-4430)

$54.99

$

Usually ships in 3-6 days

0

25

Toro 5-4504

FLANGE BUSHING

$

$

Not available

26

Toro 10-9820

Wheel (Incl. Ref. #25)
(Superseded to 11-1279)

$

$

Not available

27

Toro 3-5235-4

Wheel Cover

$

$

Currently unavailable

28

Toro 251-183

.375 RPP BALL BEARING

$58.99

$

Usually ships in 3-6 days

0

29

Toro 2-6369-4

Pivot Arm (Incl. Ref. #30)

$

$

Currently unavailable

30

Toro 256-1

BUSHING

$28.99

$

In Stock, only 2 left!

0

31

Toro 5-0745

End Cap
(Superseded to 92-5714)

$

$

Not available

32

Toro 253-86

Seal
(Superseded to 47-7260)

$8.49

$

In Stock, only 4 left!

0

33

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

34

Toro 5-1616

Worm Shaft

$

$

Currently unavailable

35

Toro 32104-63

Screw
(Superseded to 32104-76)

$2.99

$

In Stock, Qty 20+

0

36

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

37

Toro 5-1459

Gear Case (Incl. Ref. #33)

$

$

Not available

38

Toro 3212-40

Roll Pin

$

$

Currently unavailable

39

Toro 3-0721

SLEEVE

$

$

Not available

40

Toro 3-0722

Clutch
(Superseded to 19-5660)

$39.99

$

Usually ships in 3-6 days

0

41

Toro 3-0723

Worm Gear

$

$

Currently unavailable

42

Toro 3-0724

THRUST WASHER

$

$

Not available

Toro 8-5970

Gear Case, Complete

$

$

Not available
