16222 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1971) HANDLE ASSEMBLY MODELS 16000, 16111 AND 16222 Parts Diagram

Walk-Behind Mower

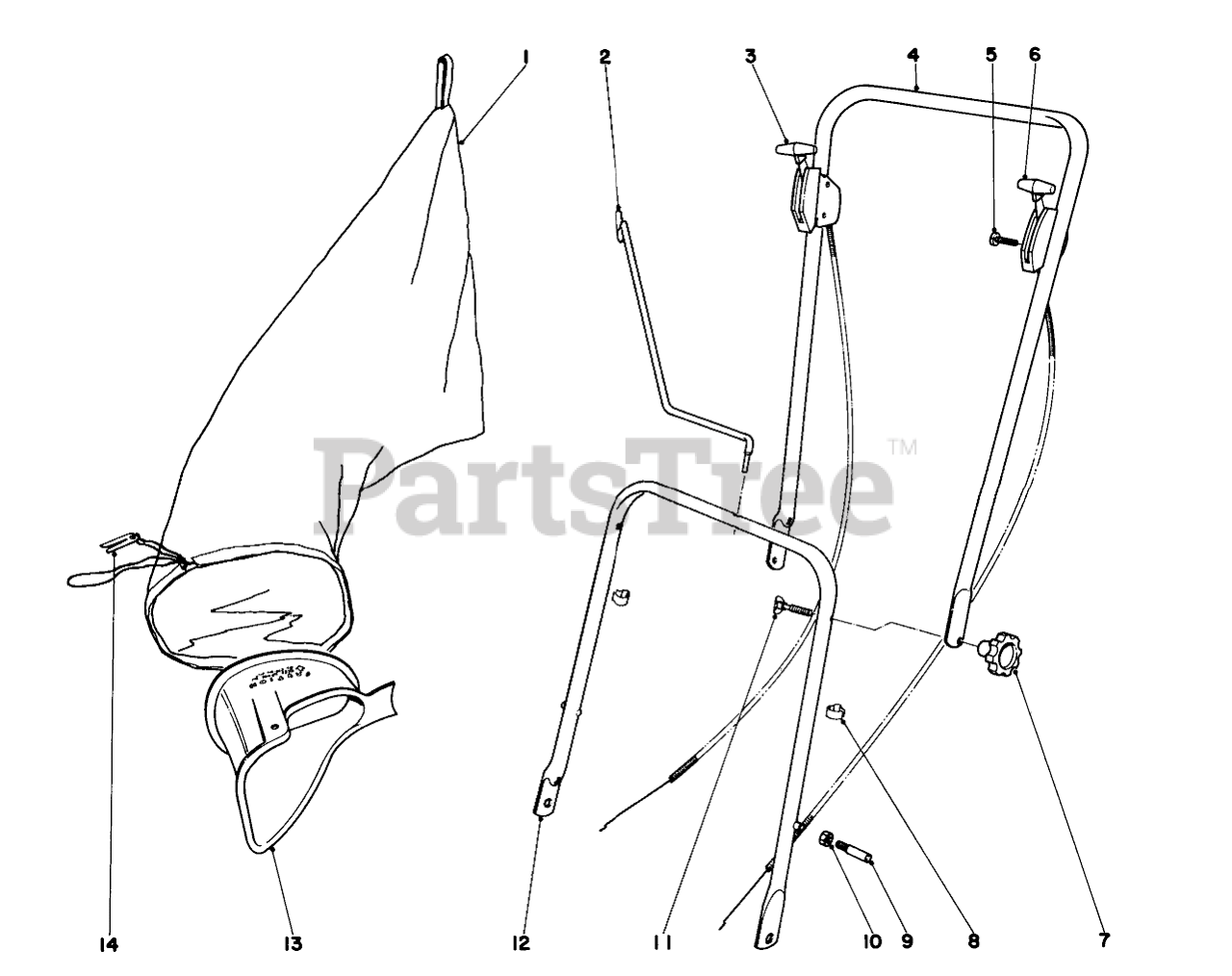

HANDLE ASSEMBLY MODELS 16000, 16111 AND 16222 Parts Diagram

  • Title

1

Toro 5-3099

Grass Bag Kit
(Superseded to 6-6669)

$

$

Not available

2

Toro 3-0690

GRASS BAG HANGER

$

$

Not available

3

Toro 10-9690

Control-Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

4

Toro 10-9560

Handle-Upper

$

$

Currently unavailable

5

Toro 32104-72

10-24 X 1 PAN HD SCR

$

$

Not available

Toro 32104-72

10-24 X 1 PAN HD SCR

Note: Replacement Parts Only

$

$

Not available

6

Toro 10-9700

Traction Control
(Superseded to 46-6040)

$

$

Not available

7

Toro 8-6290

Handle Release Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

8

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

9

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

10

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

11

Toro 6-6320

1-1/4 LG HANDLE SCREW

$

$

Not available

Toro 6-6330

HANDLE SCREW

Note: Not illustrated

$

$

Not available

12

Toro 10-9540

LWR HANDLE STAKED ASM

$

$

Not available

13

Toro 11-0570

Bag Attachment
(Superseded to 12-2320)

$136.99

$

Usually ships in 3-6 days

0

14

Toro 3-2781

BAG CORD FASTENER

$6.99

$

Usually ships in 3-6 days

0
