16255 - Toro Whirlwind Walk-Behind Mower (SN: 003000001 - 003999999) (1973) HOUSING AND ENGINE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

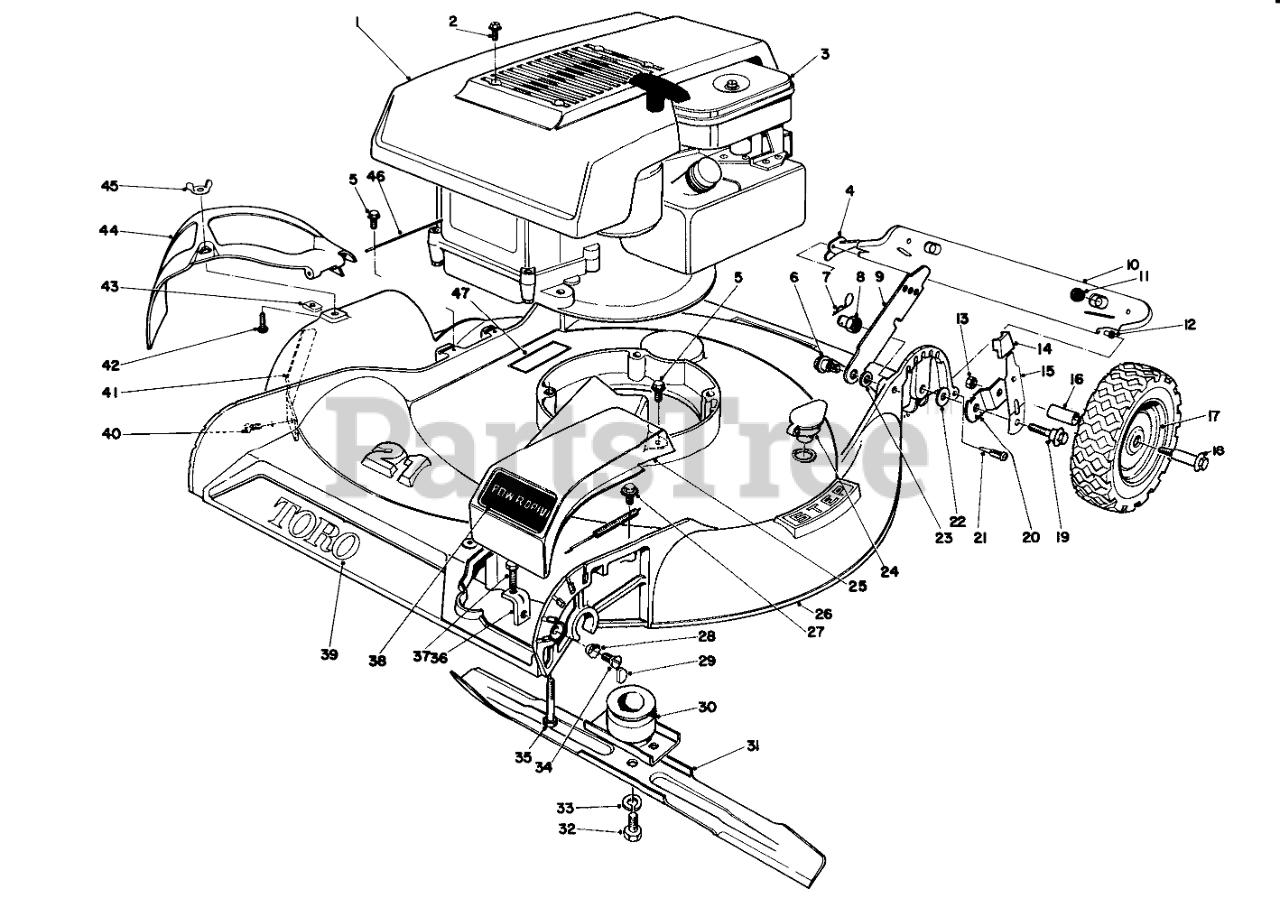

HOUSING AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 20-8000

Shroud

$

$

Not available

2

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

3

Toro 221-457

Engine

$

$

Currently unavailable

4

Toro 19-5680

Restraint R.H.

$

$

Not available

5

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

6

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

7

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

8

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

9

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

10

Toro 19-5780

Rear Safety Shield (Incl. Ref. Nos. 11 and 12)
(Superseded to 28-3780)

$

$

Not available

11

Toro 5-6450

SKID BUTTON

$

$

Not available

12

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

13

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

14

Toro 6-6220

Arm Knob

$

$

Currently unavailable

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

Note: Not illustrated

$4.99

$

In Stock, Qty 13

0

15

Toro 18-9590

Spring Arm

$

$

Not available

16

Toro 3-2664

Bushing

$

$

Not available

17

Toro 12-2620

Rear Wheel with Tire (Incl. Ref. No. 16)
(Superseded to 99-5256)

$

$

Not available

18

Toro 3-2652

Bolt

$

$

Not available

19

Toro 12-2440

PIVOT SCREW

$22.99

$

Usually ships in 3-6 days

0

20

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

21

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

23

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

24

Toro 6-4500

WASHOUT PLUG

$

$

Not available

25

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

26

Toro 5-5289

Housing

$

$

Currently unavailable

27

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

28

Toro 3255-12

Lockwasher

$

$

Not available

29

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

30

Toro 8-5370

BLADE RETAINER WA

$95.99

$

Usually ships in 3-6 days

0

31

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$33.99

$

Usually ships in 3-6 days

0

32

Toro 3-5246

SPECIAL SCREW

$

$

Not available

33

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

34

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

35

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

36

Toro 3-7278

ADJ BRACKET

$

$

Not available

37

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

38

Toro 12-2430

Decal Power Drive

$

$

Not available

39

Toro 18-8960

Decal Toro

$

$

Currently unavailable

40

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

41

Toro 12-2990

Bar Safety

$

$

Not available

42

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

43

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

44

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

45

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

46

Toro 3-2644

HINGE PIN

$

$

Not available

47

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

Toro 19-5740

Restraint L.H.

Note: Not illustrated

$

$

Not available

Toro 19-5790

Drain Plug Wrench

Note: Not illustrated

$

$

Not available

Toro 20-4770

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
