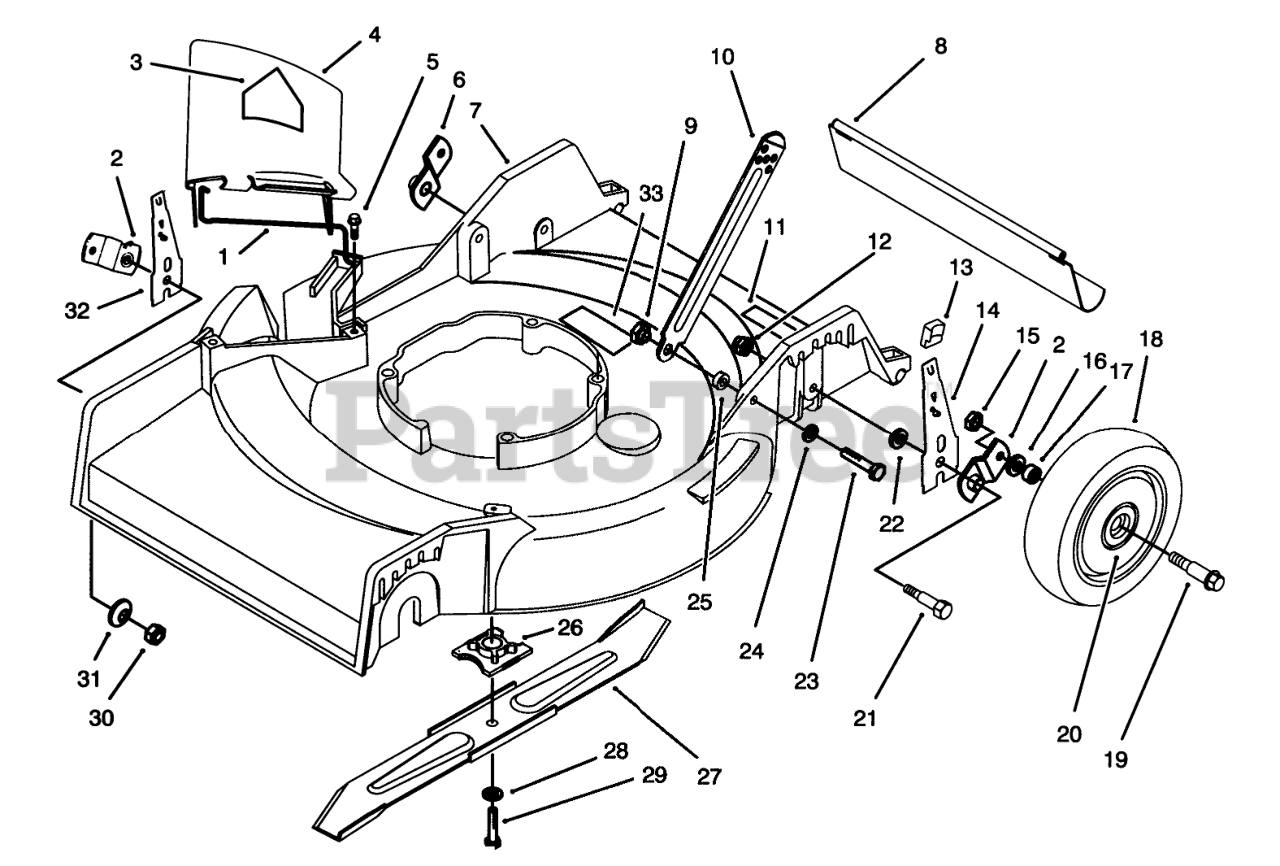

16410 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-2640

SPRING HINGE

$

$

Not available

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

3

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

4

Toro 13-4049

Deflector (Incl. Ref. #1 & 3)

$

$

Not available

5

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 13-2439

Housing Assembly (Incl. Ref. #11 & 33)

$

$

Not available

8

Toro 66-5990

SHIELD - TRAILING

$

$

Not available

9

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

10

Toro 82-7620

HANDLE LATCH

$

$

Not available

11

Toro 92-1779

DECAL-WARNING

$8.49

$

Usually ships in 3-6 days

0

12

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

14

Toro 66-6030

REAR SPRING ARM ASM

$14.99

$

Usually ships in 3-6 days

0

15

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

16

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Toro 86-9680

WHEEL SPACER

$3.49

$

Usually ships in 3-6 days

0

18

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #20)

$

$

Not available

19

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

20

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

21

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

22

Toro 33-0390

PIVOT WASHER

$3.49

$

In Stock, only 2 left!

0

23

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

26

Toro 49-7890

BLADE RETAINER

$64.99

$

Usually ships in 3-6 days

0

27

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 4 left!

0

28

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

29

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

32

Toro 66-6070

RH FRONT SPRING ARM ASM

$14.99

$

In Stock, only 1 left!

0

Toro 66-6010

LH FRONT SPRING ARM ASM

Note: Not illustrated

$14.99

$

In Stock, only 1 left!

0

33

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0
