16570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

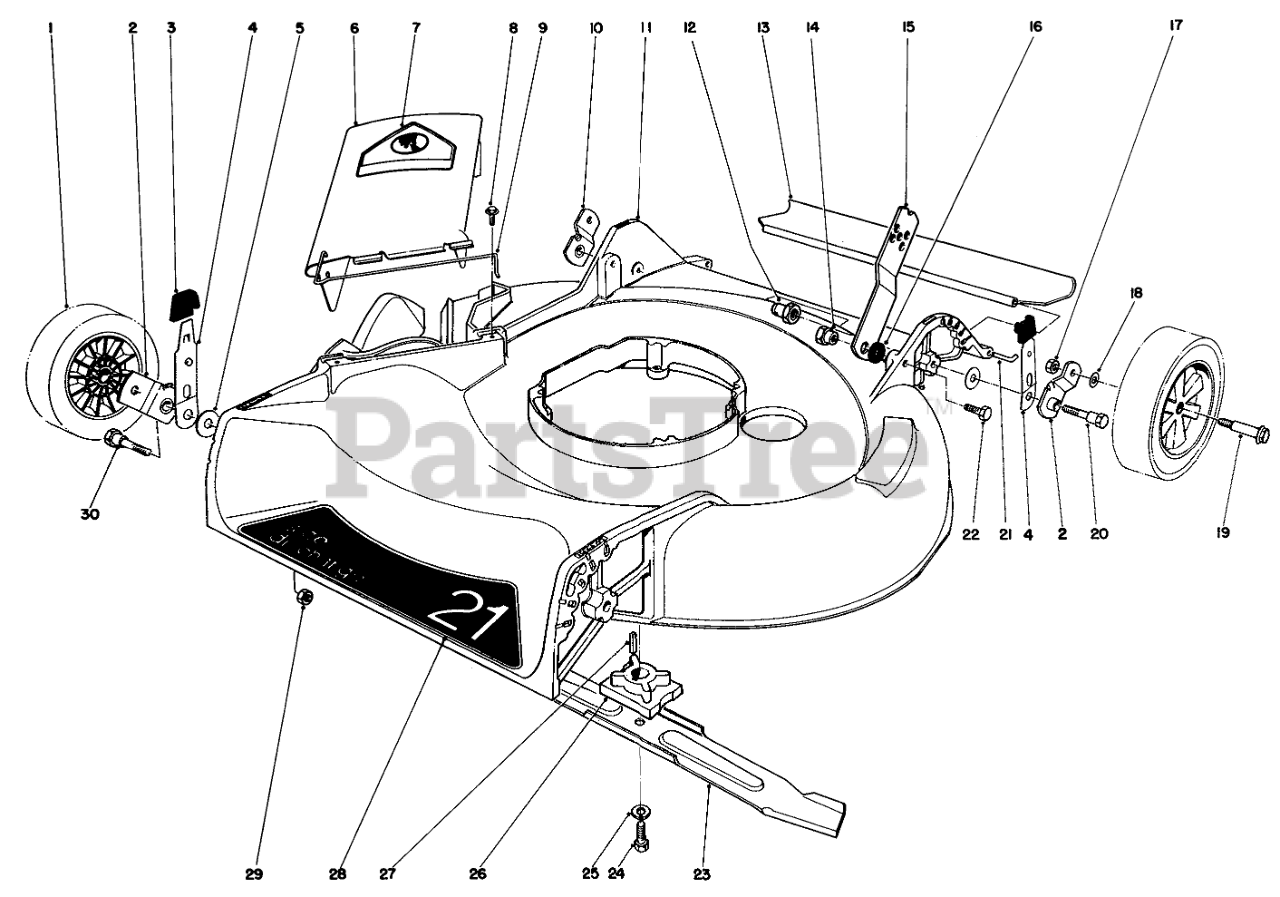

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

4

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

5

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

6

Toro 27-7817

Deflector (Incl. Ref. #7 & 9)
(Superseded to 13-4049)

$

$

Not available

7

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

9

Toro 20-2640

SPRING HINGE

$

$

Not available

10

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

11

Toro 11-4589

HOUSING/DECAL

$

$

Not available

12

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

13

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

14

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

15

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

16

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

20

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

21

Toro 33-3201

SHIELD ROD

$

$

Not available

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, Qty 5

0

24

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

26

Toro 46-4870

Blade Retainer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

27

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

28

Toro 44-0430

Decal-Side Discharge

$

$

Not available

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 25-3440

PIVOT SCREW

$

$

Not available
