16830 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY (MODEL NO. 16830) Parts Diagram

Walk-Behind Mower

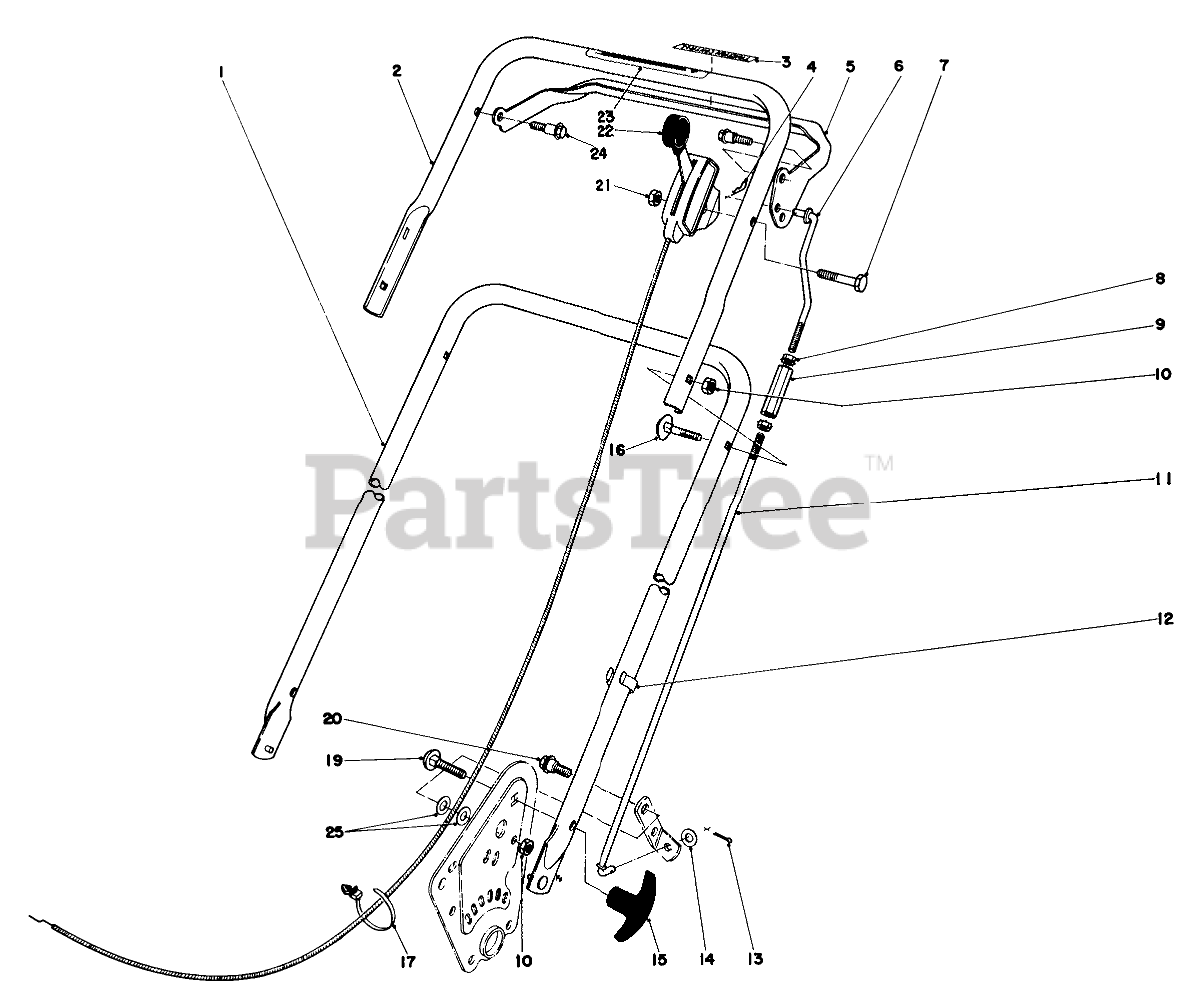

HANDLE ASSEMBLY (MODEL NO. 16830) Parts Diagram

  • Title

1

Toro 38-0810

Lower Handle

$

$

Not available

2

Toro 38-0620

Upper Handle

$

$

Not available

3

Toro 38-5150

Decal-Traction Control

$

$

Not available

4

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

5

Toro 37-4480

Squeeze Lever

$

$

Not available

6

Toro 38-9150

CONTROL ROD LINK

$

$

Not available

7

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

9

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 22-6030

CUTTER CONTROL ROD

$

$

Not available

12

Toro 218-466

CLIP

$

$

Not available

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 233-41

KNOB

$

$

Not available

16

Toro 6-6330

HANDLE SCREW

$

$

Not available

17

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

19

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 9

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

21

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

22

Toro 33-2536

Throttle Control
(Superseded to 46-6000)

$42.99

$

Usually ships in 3-6 days

0

23

Toro 29-6290

Decal

$

$

Not available

24

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$16.99

$

Usually ships in 3-6 days

0

25

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
