16880 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY (MODEL NO. 16890) Parts Diagram

Walk-Behind Mower

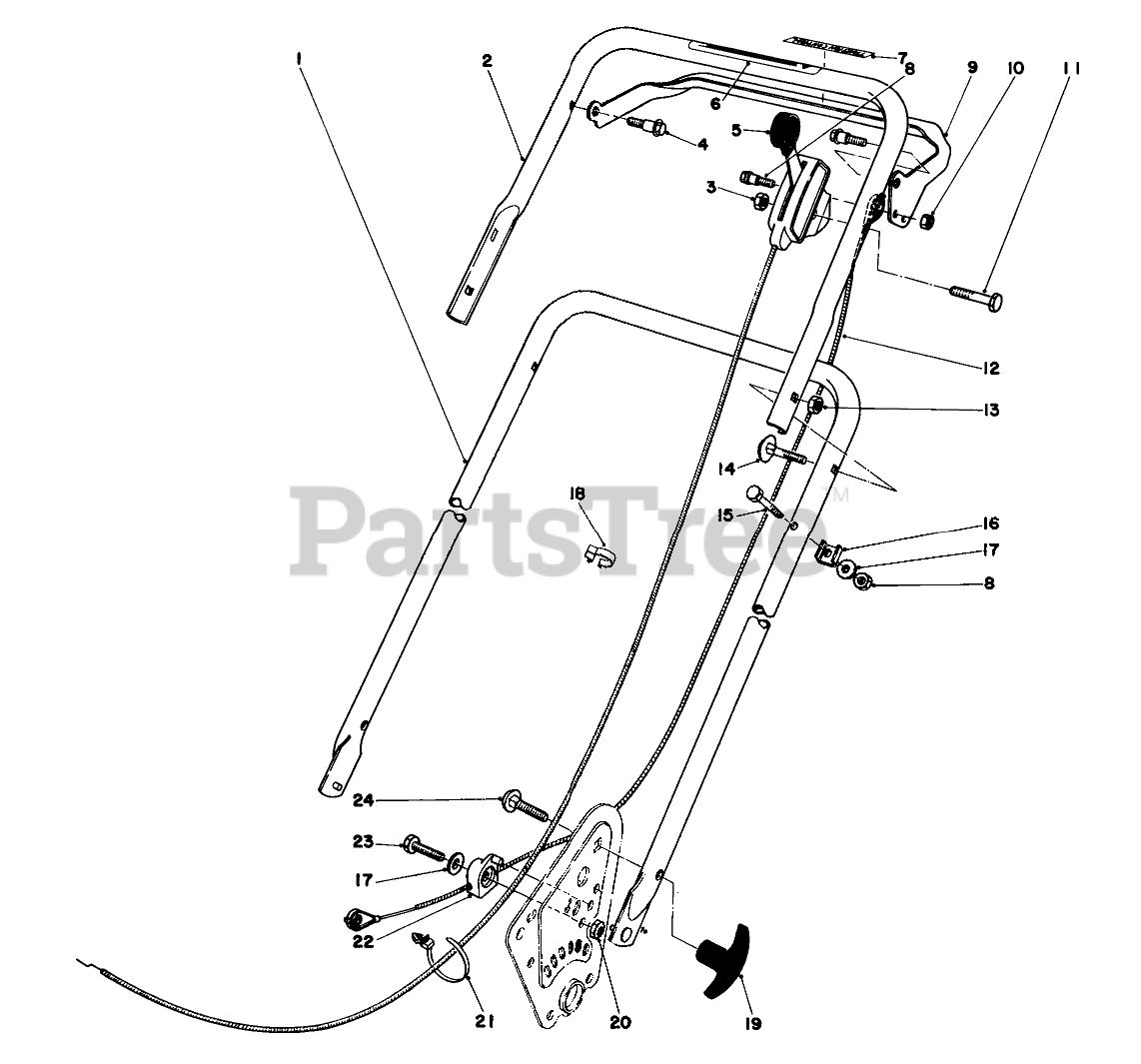

HANDLE ASSEMBLY (MODEL NO. 16890) Parts Diagram

  • Title

1

Toro 38-0810

Lower Handle

$

$

Not available

2

Toro 38-0620

Upper Handle

$

$

Not available

3

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

4

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$16.99

$

Usually ships in 3-6 days

0

5

Toro 33-2536

Throttle Control
(Superseded to 46-6000)

$42.99

$

Usually ships in 3-6 days

0

6

Toro 29-6290

Decal

$

$

Not available

7

Toro 38-5150

Decal-Traction Control

$

$

Not available

8

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 18

0

9

Toro 37-4480

Squeeze Lever

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 29-9502

DEMAND HAND CABLE

$92.99

$

Usually ships in 3-6 days

0

13

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 6-6330

HANDLE SCREW

$

$

Not available

15

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

16

Toro 29-9550

CLAMP-CABLE

$

$

Not available

17

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 218-465

BOWDEN CLIP

$

$

Not available

19

Toro 23341

Handle Knob

$

$

Currently unavailable

20

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

21

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

22

Toro 38-6400

CABLE BOSS

$

$

Not available

23

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

24

Toro 32304

Bolt-Carriage

$

$

Currently unavailable

Toro 11-0109

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
