18208 - Toro Guardian Walk-Behind Mower (SN: 002000001 - 002999999) (1972) ENGINE ASSEMBLY NO. 18257 Parts Diagram

Guardian Walk-Behind Mower

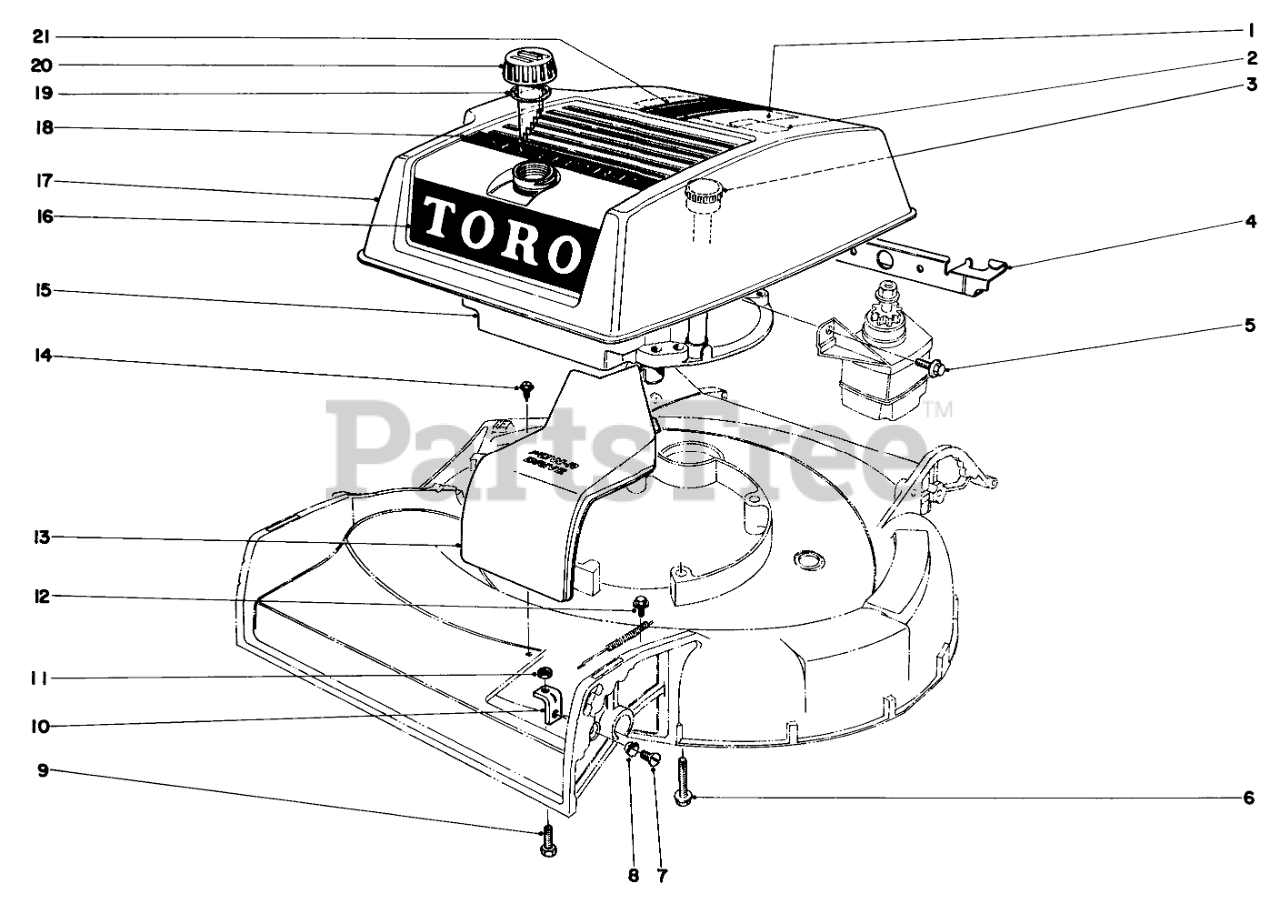

ENGINE ASSEMBLY NO. 18257 Parts Diagram

  • Title

1

Toro 8-5620

Decal-Maintenance

$

$

Currently unavailable

2

Toro 12-6590

Decal Caution

$

$

Currently unavailable

3

Toro 8-3830

Dip Stick

$

$

Currently unavailable

4

Toro 11-9690

Shroud Bracket

$

$

Currently unavailable

5

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

6

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

7

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3255-12

Lockwasher

$

$

Not available

9

Toro 3-7281

SCREW

$

$

Not available

10

Toro 3-7278

ADJ BRACKET

$

$

Not available

11

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

12

Toro 32140-69

Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 8

0

13

Toro 8-5210

Belt Drive Cover

$

$

Currently unavailable

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 221-401

Engine

$

$

Currently unavailable

16

Toro 12-2030

Decal-Toro

$

$

Currently unavailable

17

Toro 8-5420

Shroud

$

$

Currently unavailable

18

Toro 12-2020

Decal-Key-Lectric

$

$

Currently unavailable

19

Toro 5-2044

Gasket

$

$

Currently unavailable

20

Toro 12-0580

Gas Cap (Incl. Ref. No. 18)
(Superseded to 42-0682)

$

$

Not available

21

Toro 11-2880

Decal

$

$

Currently unavailable
