19271 - Toro Guardian Walk-Behind Mower (SN: 002000001 - 002999999) (1972) HANDLE ASSEMBLY MODEL NO. 19271 Parts Diagram

Guardian Walk-Behind Mower

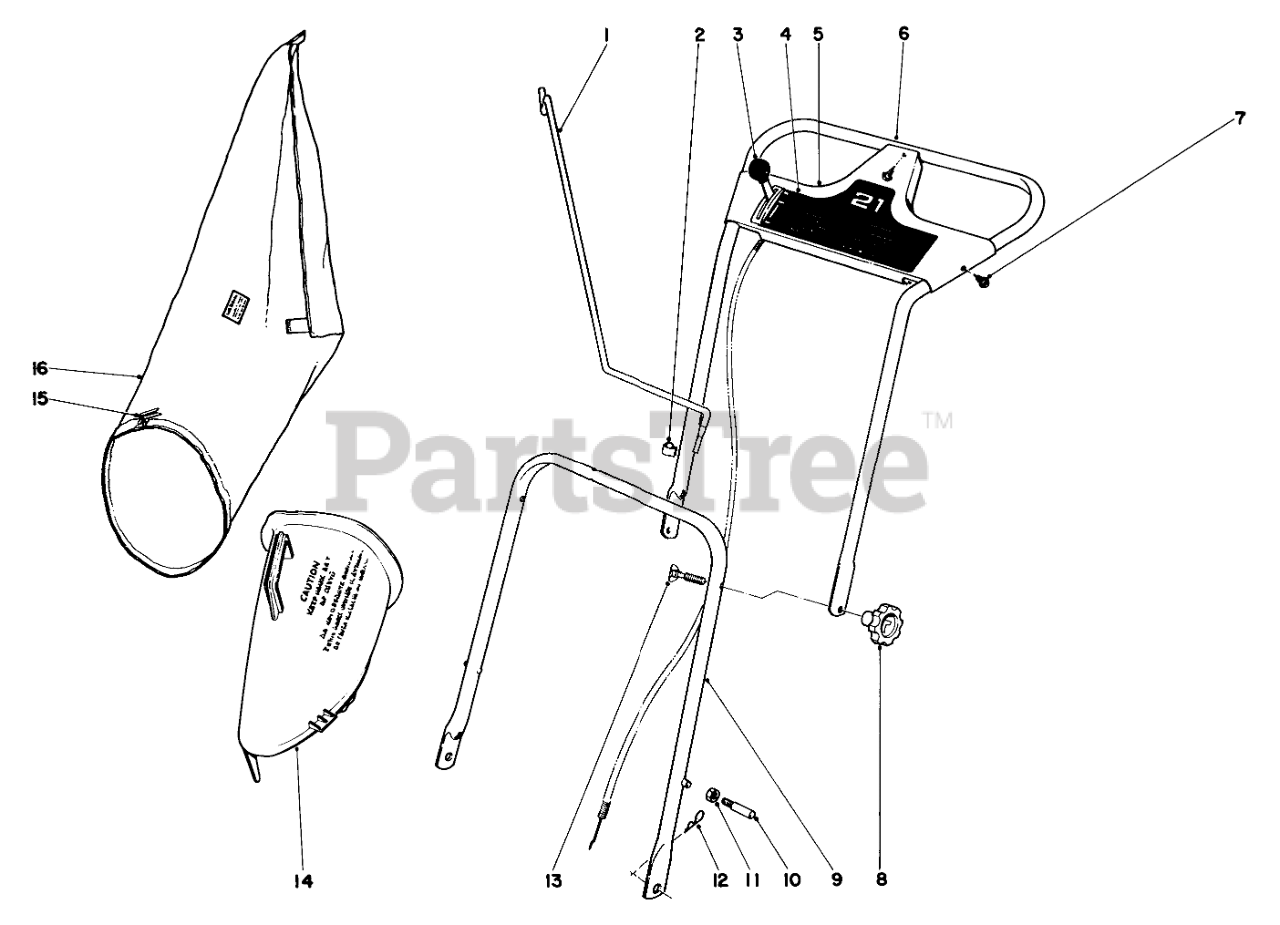

HANDLE ASSEMBLY MODEL NO. 19271 Parts Diagram

  • Title

1

Toro 12-3030

BAG HANGER ROD

$94.99

$

Usually ships in 3-6 days

0

2

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

3

Toro 12-9470

Throttle Control
(Superseded to 46-6011)

$115.99

$

Usually ships in 3-6 days

0

4

Toro 12-9420

Decal

$

$

Currently unavailable

5

Toro 8-5520

Escutcheon Plate

$

$

Currently unavailable

6

Toro 8-6380

Upper Handle

$

$

Currently unavailable

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 12-3010

Handle Release Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

9

Toro 12-3040

Lower Handle

$

$

Currently unavailable

10

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

11

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 6-6330

HANDLE SCREW

$

$

Not available

14

Toro 12-0750

BAG ATTACHMENT

$137.99

$

Usually ships in 3-6 days

0

15

Toro 3-2781

BAG CORD FASTENER

$6.99

$

Usually ships in 3-6 days

0

16

Toro 5-5929

Grass Bag (Incl. Ref. No. 15)
(Superseded to 5-8679)

$

$

Not available
