20025 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

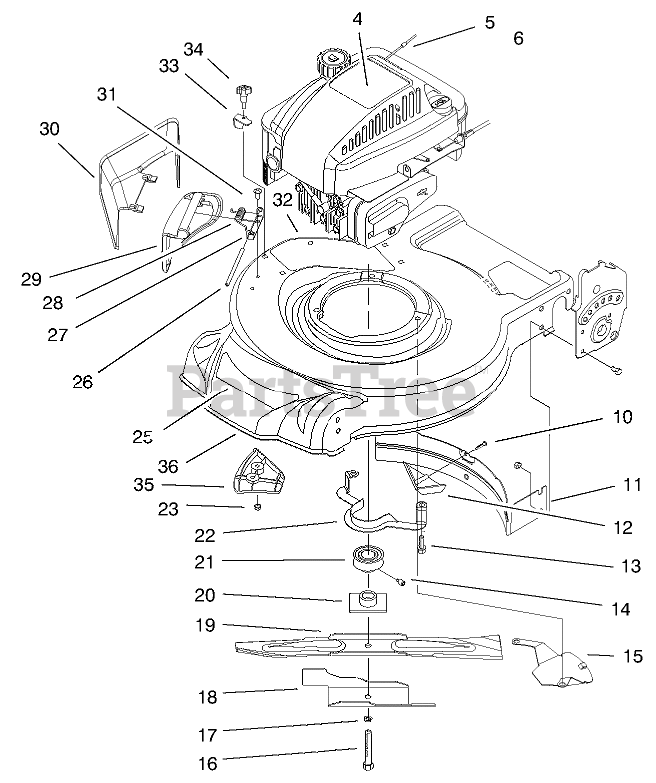

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

4

Toro 99-6336

DECAL - RECOIL - QUIET I/C

$

$

Not available

5

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

10

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

11

Toro 93-0223-03

BAFFLE-REAR

$25.99

$

Usually ships in 3-6 days

0

12

Toro 93-0217

KICKER-REAR

$14.99

$

Usually ships in 3-6 days

0

13

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

Toro 613227

SCREW-SET
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

15

Toro 93-4196-03

SHIELD-GRASS

$13.99

$

In Stock, only 3 left!

0

16

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, only 2 left!

0

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

18

Toro 93-0219-03

ACCELERATOR

$22.99

$

Usually ships in 3-6 days

0

19

Toro 93-0241

Blade
(Superseded to 93-0241-03)

$39.99

$

In Stock, only 4 left!

0

20

Toro 99-5287

ASM-BLADE DRIVER

$23.99

$

Usually ships in 3-6 days

0

21

Toro 99-5244

PULLEY ASM
(Superseded to 100-1102)

$105.99

$

Usually ships in 3-6 days

0

22

Toro 99-1524-03

GUIDE-BELT

$20.99

$

In Stock, only 1 left!

0

23

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 16

0

25

Toro 99-6011

DECAL - DECK

$14.99

$

Usually ships in 3-6 days

0

26

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

27

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$10.99

$

In Stock, Qty 6

0

28

Toro 99-5293

SPRING-TORSION

$9.99

$

In Stock, Qty 20+

0

29

Toro 99-5294

COVER-SIDE

$19.99

$

Usually ships in 3-6 days

0

30

Toro 99-5295

CHUTE-SIDE

$13.99

$

In Stock, only 3 left!

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

32

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

33

Toro 100-1589-03

Clamp-Door (Only On: 20029)

$16.99

$

Usually ships in 3-6 days

0

34

Toro 98-8332

Knob (Only On: 20029)

$5.49

$

In Stock, Qty 13

0

35

Toro 99-6349

BAFFLE

$21.99

$

Usually ships in 3-6 days

0

36

Toro 99-5236

HOUSING SP

$411.99

$

Usually ships in 3-6 days

0
