20028 - Toro Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) GEAR CASE & WHEEL ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

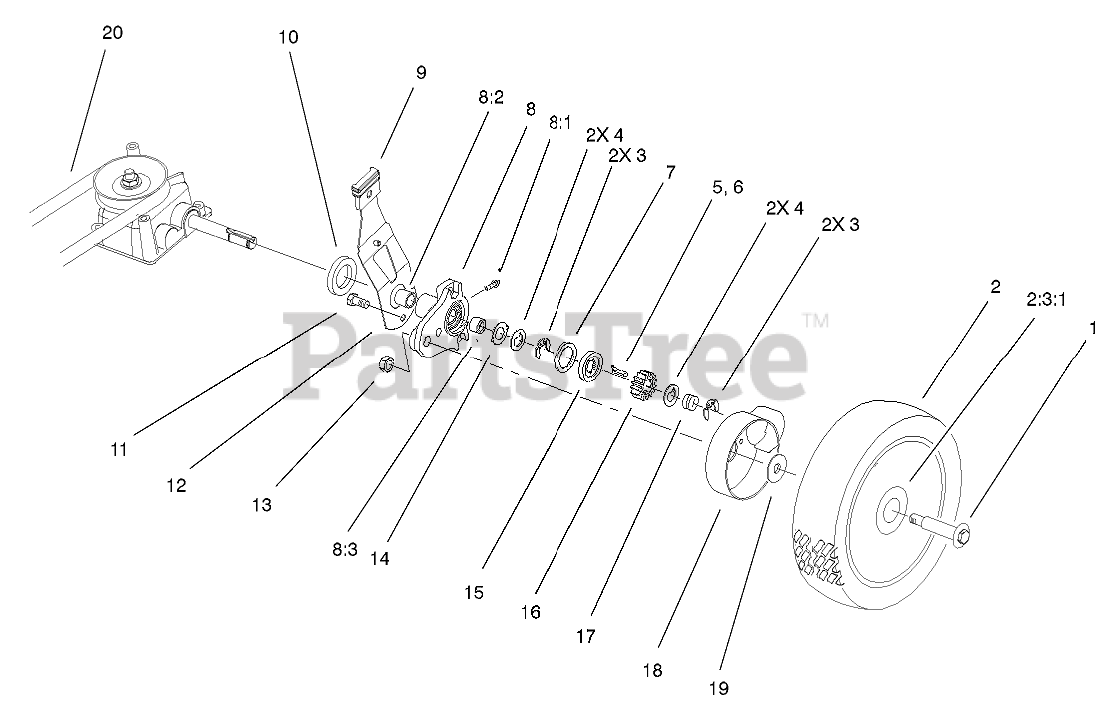

GEAR CASE & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 92-1057

BOLT-SHOULDER
Usually ships in 1 day

$

$3.34

0

2

Toro Part# 92-9590

WHEEL ASM
Usually ships in 1 day

$

$35.77

0

2:3:1
Usually ships in 1 day

$

$2.23

0

3

Toro Part# 65-2720

RING-CLIP, LOCKING
Usually ships in 1 day

$

$1.11

0

4

Toro Part# 65-4740

WASHER-THRUST, KEYED
Usually ships in 1 day

$

$2.23

0

5

Toro Part# 66-6040

KEY-ROCKING, RH
Usually ships same day

Not available

$

$

6

Toro Part# 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)
Usually ships in 1 day

$

$5.76

0

7

Toro Part# 65-4710

RING-FRICTION
Usually ships in 1 day

$

$2.23

0

8

Toro Part# 92-7746

REAR HEIGHT ADJUSTMENT ARM ASM
Usually ships in 1 day

$

$35.45

0

8:1

Toro Part# 302-56

FITTING-GREASE
Usually ships in 1 day

$

$3.27

0

8:2
Usually ships in 1 day

$

$4.94

0

8:3
Usually ships in 1 day

$

$3.85

0

9

Toro Part# 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT
Usually ships in 1 day

$

$10.06

0

10

Toro Part# 614447

SPACER-AXLE SHAFT
Usually ships in 1 day

$

$2.50

0

11
Usually ships in 1 day

$

$1.11

0

12

Toro Part# 92-1004

REAR SPRING ARM ASM
Usually ships in 1 day

$

$15.40

0

Usually ships in 1 day

$

$1.88

0

14

Toro Part# 65-4730

WASHER-ARM, PIVOT
Usually ships in 1 day

$

$2.23

0

15

Toro Part# 65-4760

WASHER-CLUTCH
Usually ships in 1 day

$

$1.33

0

16

Toro Part# 65-4750

GEAR-PINION
Usually ships in 1 day

$

$10.05

0

17

Toro Part# 65-4720

SPRING-COMPRESSION
Usually ships in 1 day

$

$1.11

0

18

Toro Part# 94-1609

COVER-WHEEL
Usually ships in 1 day

$

$7.03

0

19

Toro Part# 614426

WASHER-STEPPED
Usually ships in 1 day

$

$1.44

0

20
Usually ships in 1 day

$

$14.52

0
