20038 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 240000001 - 240999999) (2004) HANDLE AND CONTROL ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower with Bag

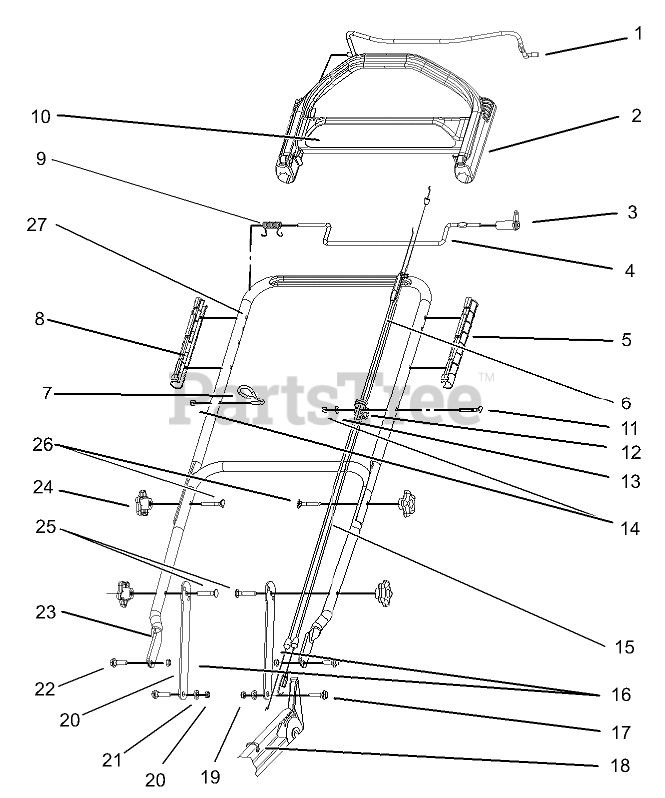

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$15.99

$

In Stock, Qty 20+

0

2

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

3

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 20+

0

4

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, Qty 7

0

5

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

6

Toro 106-5750

Cable-Brake

$28.99

$

In Stock, only 4 left!

0

7

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 19

0

8

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

9

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 20+

0

10

Toro 105-8613

Decal-Console

$12.99

$

Usually ships in 3-6 days

0

11

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 20+

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

15

Toro 106-8300

Cable-Traction

$22.99

$

In Stock, Qty 16

0

16

Toro 99-5248-03

LATCH-HANDLE

$25.99

$

Usually ships in 3-6 days

0

17

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

18

Toro 100-2894

TIE-CABLE

$1.99

$

Usually ships in 3-6 days

0

19

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

20

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

22

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

23

Toro 99-5249-05

HANDLE-LOWER

$191.99

$

Usually ships in 3-6 days

0

24

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

25

Toro 99-6019

SCREW-CARR

$2.99

$

In Stock, only 2 left!

0

26

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

27

Toro 104-8680-05

Handle-Upper

$64.99

$

Usually ships in 3-6 days

0
