20038 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 240000001 - 240999999) (2004) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0111-E1 Parts Diagram

Super Recycler Walk-Behind Mower with Bag

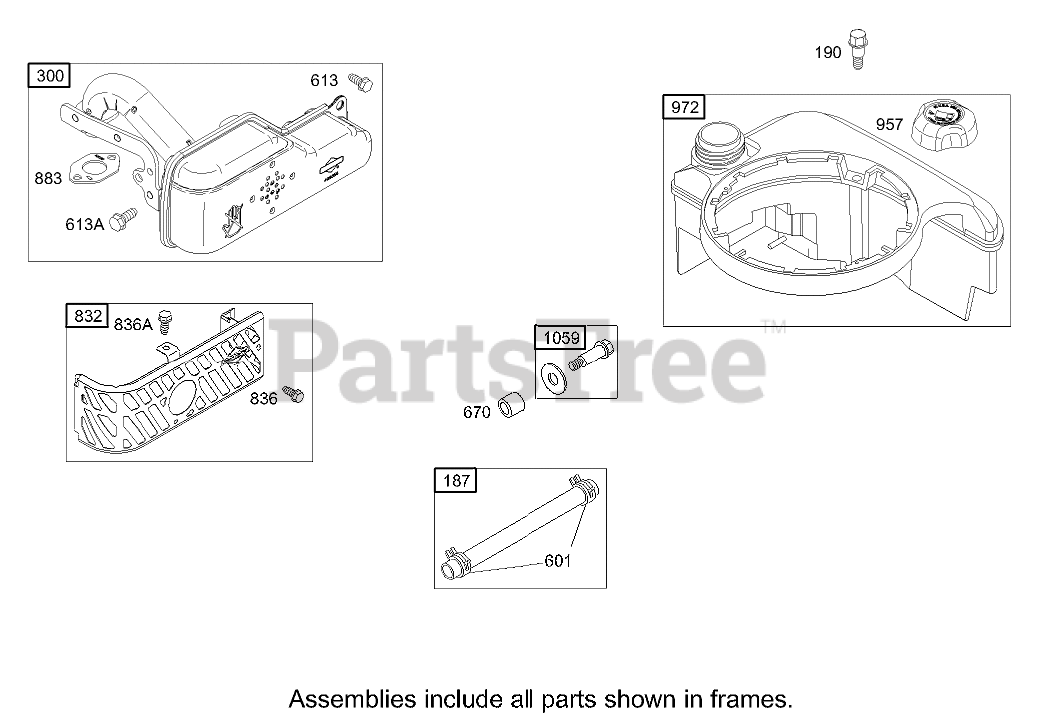

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0111-E1 Parts Diagram

  • Title
187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 690940

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

300

Briggs & Stratton 694248

Muffler
(Superseded to 692275)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613A

Briggs & Stratton 691140

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 692294

Spacer-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 12

0

832

Briggs & Stratton 691466

Guard?Muffler

Note: Obtain parts from www.briggsandstratton.com

$54.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

836A

Briggs & Stratton 691147

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 13

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 13

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 13

0

957

Briggs & Stratton 692046

Cap-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 13

0

972

Briggs & Stratton 499618

Tank?Fuel
(Superseded to 699374)

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, Qty 16

0

1059

Briggs & Stratton 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 10

0
