20111 - Toro 22" Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) STARTER ASSEMBLY BRIGGS AND STRATTON 124T02-0215-B1 Parts Diagram

22" Recycler Walk-Behind Mower

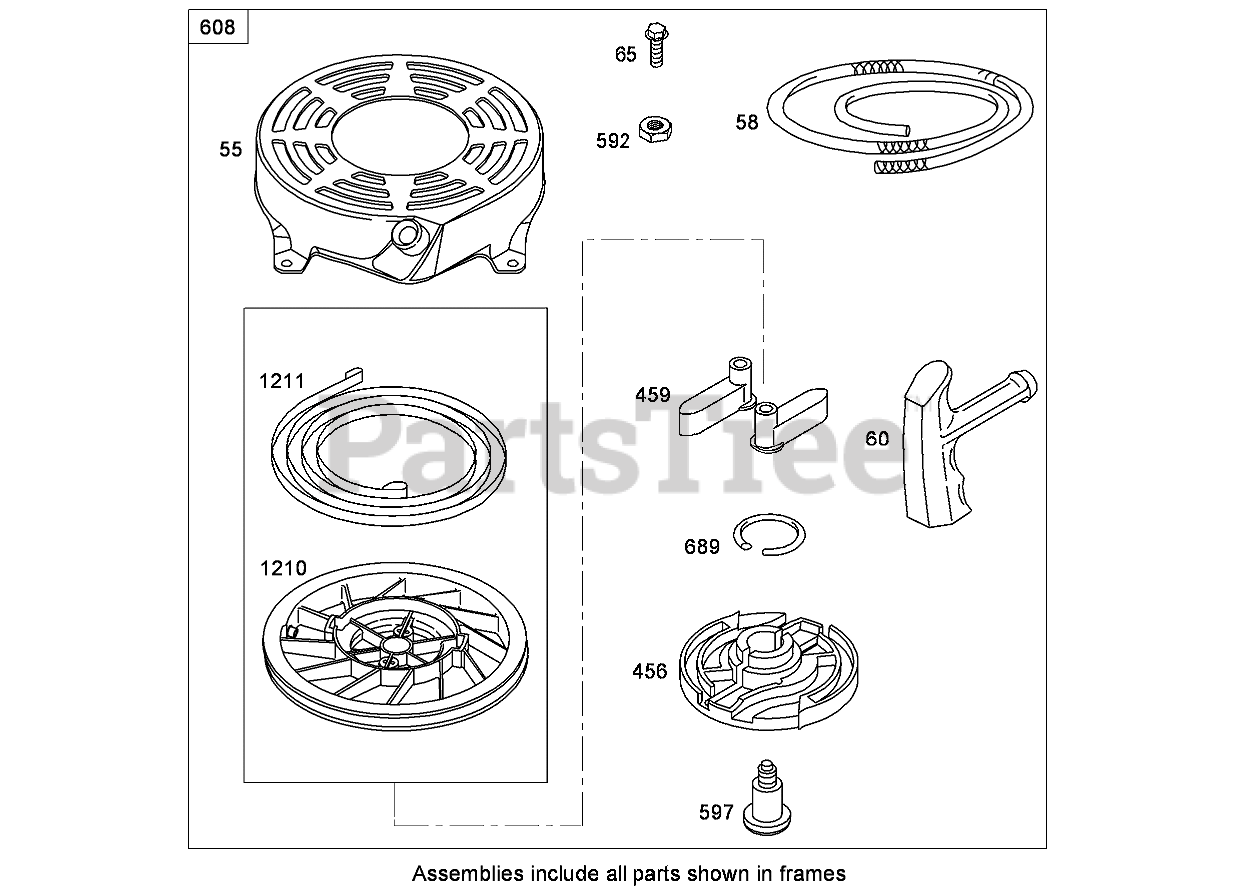

STARTER ASSEMBLY BRIGGS AND STRATTON 124T02-0215-B1 Parts Diagram

  • Title
55

Briggs & Stratton 691421

Housing-Starter, Rewind

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 697316

Rope-Starter (Cut to Required Length)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 17

0

60

Toro 281434s

Grip-Rope, Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

65

Briggs & Stratton 690837

Screw (Rewind Starter)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

456

Briggs & Stratton 692299

Plate-Friction, Pawl

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

459

Toro 281505s

Ratchet-Pawl

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

592

Briggs & Stratton 690800

Nut (Rewind Starter)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 3 left!

0

597

Briggs & Stratton 691696

Screw (Pawl Friction Plate)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 497680

Starter-Rewind

Note: Obtain parts from www.briggsandstratton.com

$49.99

$

In Stock, Qty 9

0

689

Briggs & Stratton 691855

Spring-Friction

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 11

0

1210

Briggs & Stratton 498144

Pulley and Spring ASM (Pulley)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 12

0

1211

Briggs & Stratton 498144

Pulley and Spring ASM (Spring)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 12

0
