20329 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY (SERIAL NO. 2000001-2005000) Parts Diagram

Walk-Behind Mower

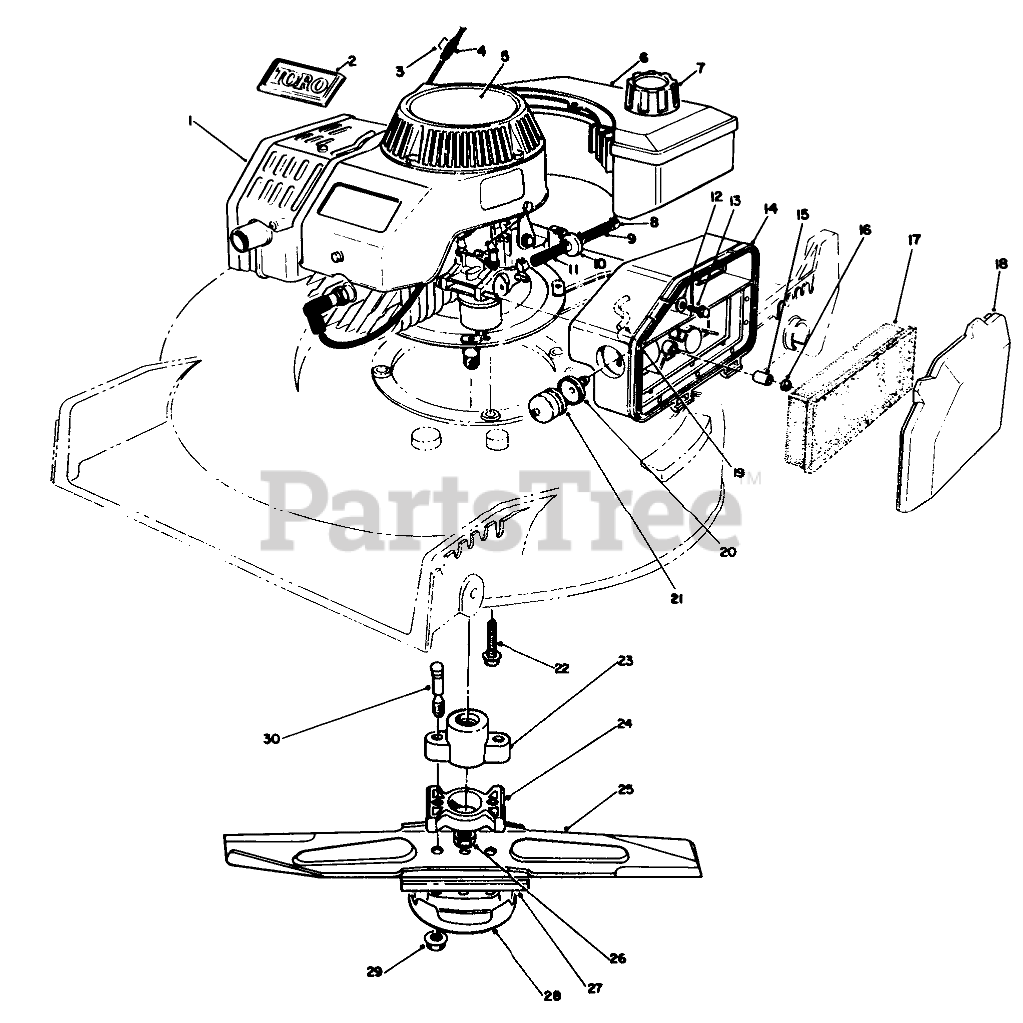

ENGINE ASSEMBLY (SERIAL NO. 2000001-2005000) Parts Diagram

  • Title

1

Toro 51-0403

Engine (Complete)
(Superseded to 98-2049)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 3 left!

0

3

Staple

Note: Obtain Locally

$

$

Not available

4

Toro 81-3980

STOP

$7.49

$

In Stock, only 1 left!

0

5

Toro 66-0510

DECAL - 2 CYC RECOIL

$

$

Not available

6

Toro 81-0042

Gas Tank Assembly
(Superseded to 99-5263)

$

$

Not available

7

Toro 55-3575

GAS CAP ASM

$17.99

$

In Stock, only 3 left!

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 15

0

9

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

11

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, Qty 5

0

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

14

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

15

Toro 62-3980

SPACER

$2.49

$

Usually ships in 3-6 days

0

16

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

17

Toro 63-9380

ELEMENT-AIR CLEANER

$11.99

$

In Stock, Qty 7

0

18

Toro 63-9340

COVER-AIR CLEANER

$49.99

$

In Stock, only 2 left!

0

19

Toro 44-3172

HOSE-PRIMER

$5.49

$

In Stock, Qty 8

0

20

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

21

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

22

Toro 66-9300

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

25

Toro 14-1659

Blade-21" (Incl. Ref. #27)
(Superseded to 91-2256-03)

$31.99

$

In Stock, Qty 14

0

27

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$17.99

$

In Stock, Qty 7

0

23

Toro 62-5920

HUB

$

$

Not available

26

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

24

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$23.99

$

In Stock, only 1 left!

0

29

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

28

Toro 80-2770

CUP-SCALP, ANTI

$15.99

$

In Stock, only 2 left!

0

30

Toro 42-3190

BOLT-BLADE

$11.99

$

In Stock, Qty 20+

0
