20332 - Toro 22" Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

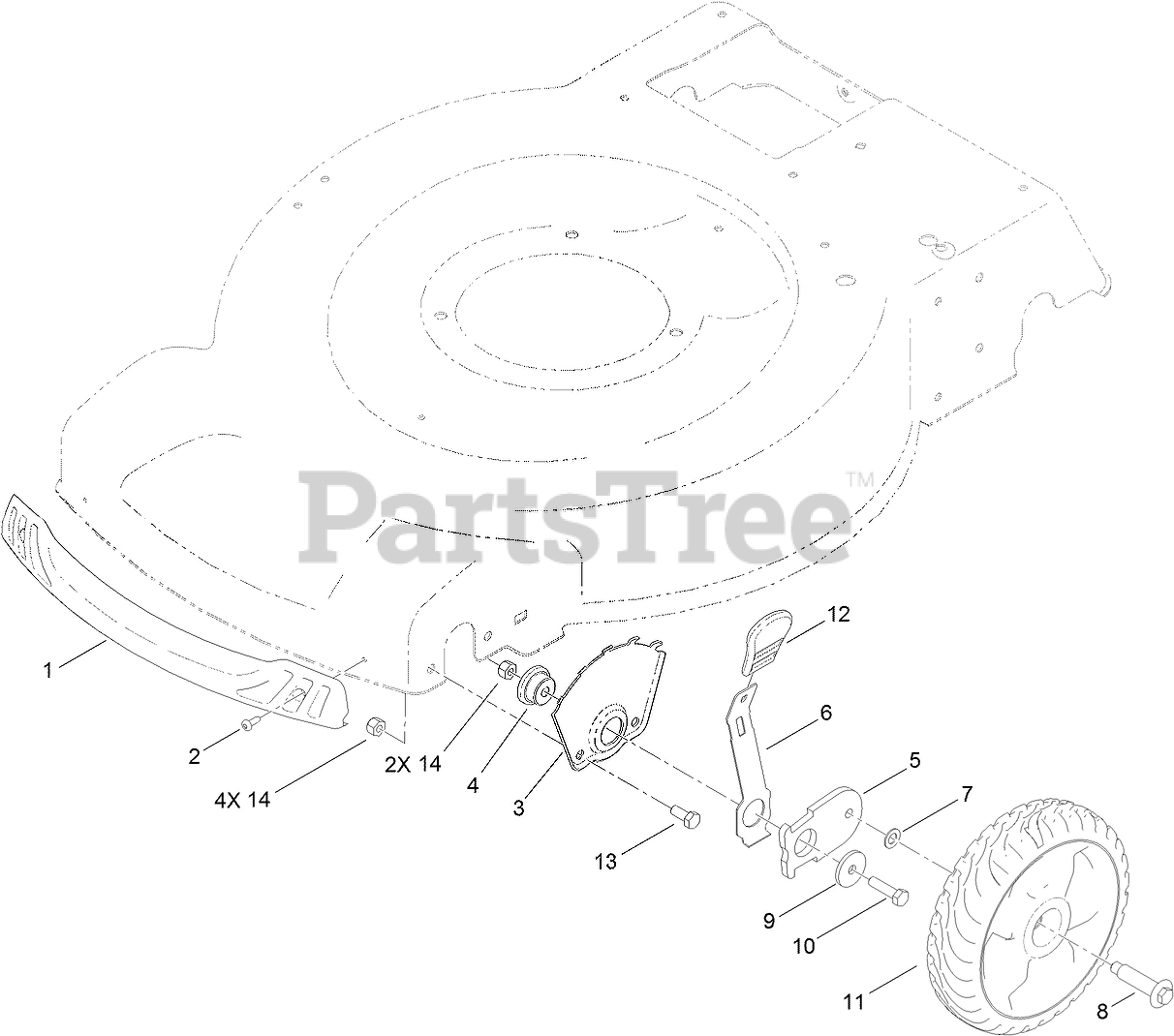

FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 114-7987

BUMPER

$12.99

$

In Stock, only 2 left!

0

2

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 7

0

3

Toro 115-1956-03

PLATE-HOC, FRONT

$9.99

$

In Stock, Qty 11

0

4

Toro 105-1818

Bushing-Mount, HOC

$4.99

$

In Stock, Qty 8

0

5

Toro 105-1807

ARM-PIVOT, FRONT
(Superseded to 137-9128)

$6.99

$

In Stock, Qty 20+

0

6

Toro 105-1809

Arm-Spring

$11.99

$

In Stock, Qty 9

0

7

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

8

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

9

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 20+

0

10

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

11

Toro 115-2894

8 INCH WHEEL ASM
(Superseded to 137-4833)

$26.99

$

In Stock, Qty 10

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
